IKA® VOL-SP-6.7 Spindle for Rotavisc Viscometer, 25006845

IKA WorksSKU: 0025006845

Precio:
Precio de venta$474.00 USD

Gastos de envío calculados en la caja

Factory new — sealed package

  • MedLabAmerica.com is an authorized IKA distributor
  • Shipped sealed in the original manufacturer packaging
  • Covered by the full manufacturer’s warranty
  • Never used, demonstrated, or previously sold
  • Usually ships from manufacturer. Subject to stock availability.
  • Orders can also be placed online for Canada and Mexico
Request a quote

Gastos estimados de envío

Descripción

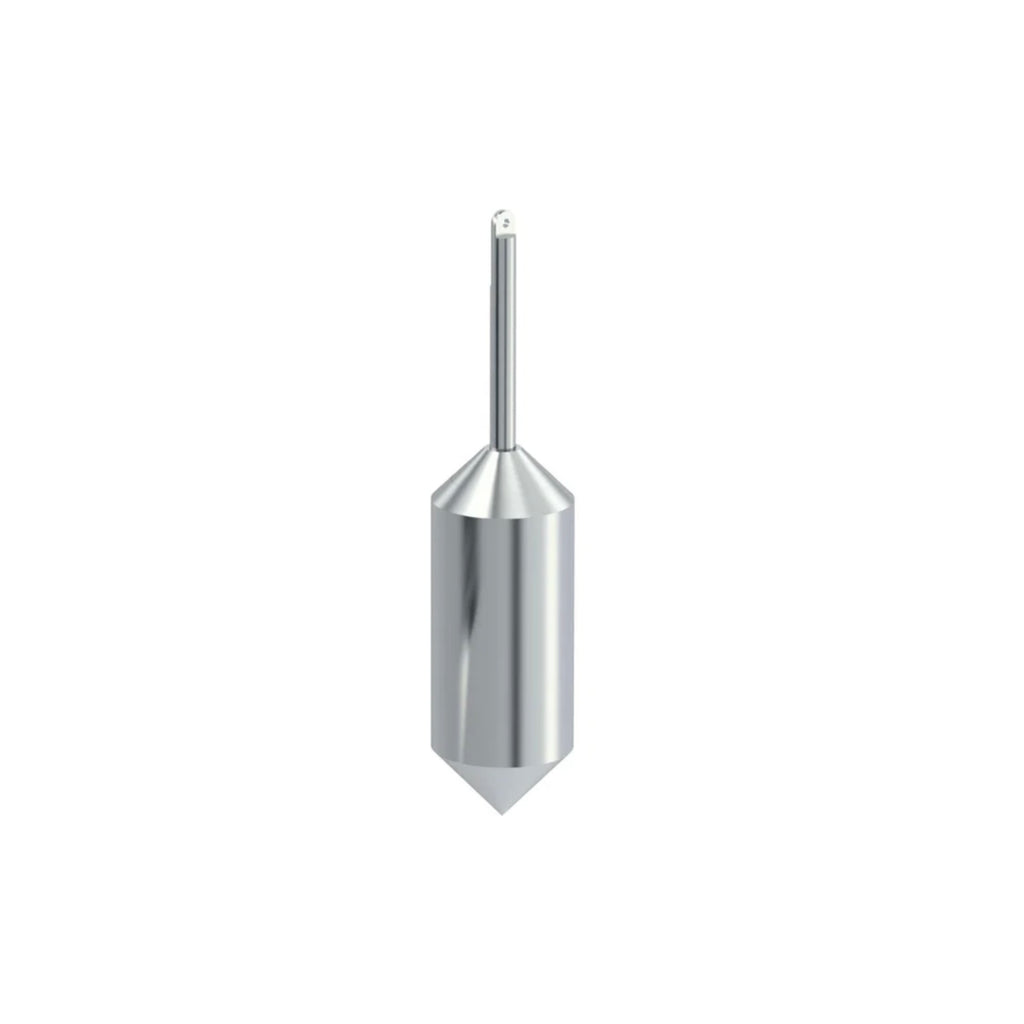

The IKA VOL-SP-6.7 is a low-volume measuring spindle for the IKA ROTAVISC viscometer series, intended for small 6.7 ml sample volumes across an extended viscosity range. It is used with its matching VOL-C-RTD spindle chamber and is made of stainless steel for media contact.

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Spindle geometry Cylinder
Connection Thread M2.5 LH
Hook connector yes
Diameter 17.5 mm
Sample volume 6.7 ml
Flow Jacket yes
Mounting Bracket yes
Sample container Specified chamber
Working temperature max. 100 °C
Viscosity Accuracy (FSR) 2 %
Viscosity Repeatibility (FSR) 0.2 %
Min. FSR match ROTAVISC lo-vi 15 mPa.s
Max. FSR match ROTAVISC lo-vi 2999 mPa.s
Min. FSR match ROTAVISC me-vi 160 mPa.s
Max. FSR match ROTAVISC me-vi 32000 mPa.s
Min. FSR match ROTAVISC hi-vi I 320 mPa.s
Max. FSR match ROTAVISC hi-vi I 64000 mPa.s
Min. FSR match ROTAVISC hi-vi II 1280 mPa.s
Max. FSR match ROTAVISC hi-vi II 256000 mPa.s
Material in contact with medium stainless steel 1.4404

Product Documents

PDFProduct Data Sheet
