Descripción
The IKA ROTAVISC hi-vi II Complete is a rotational viscometer built to measure the viscosity of liquids across the full workflow, from research benches to production quality control. Whether the measurement task is simple or demanding, it delivers fast, dependable results across a very broad viscosity window.
Operation is guided by a large 4.3" TFT display with an intuitive menu, and a built-in digital spirit level helps confirm correct leveling before a run. A ramp function streamlines repetitive measurement sequences, while stepless speed control and high measurement accuracy make it suitable for both Newtonian and non-Newtonian fluids.
Key features:
- Very wide viscosity measuring range up to 320,000,000 mPas
- High accuracy of ±1% of full-scale range with ±0.2% repeatability
- Large 4.3" TFT touch display with intuitive menu navigation
- Stepless speed adjustment from 0.01 to 200 rpm

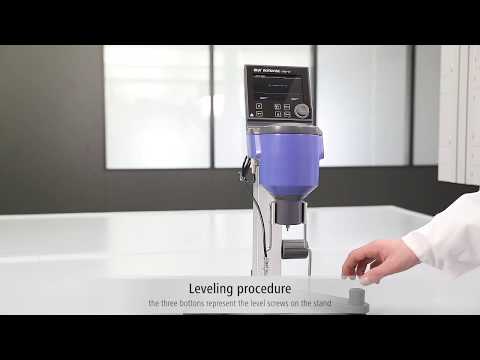

- Digital spirit level and ramp function for easy, repeatable setup
- USB and RS 232 interfaces plus PT 100 external temperature sensor input
Package Includes:
- ROTAVISC hi-vi II control (S000) measuring head
- ROTASTAND stand
- SP set-2 spindle set
- PT 100.8 temperature sensor
- Guard rail (protective bracket)
Country of Origin: Germany
Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here
Specifications:
| Viscosity Measuring Range | 320000000 mPas |
| Viscosity Accuracy (FSR) | 1 % |
| Viscosity Repeatibility (FSR) | 0.2 % |
| Spring torque | 5.7496 mNm |
| Guard rail | me-vi |
| Measuring spindle series | SP set-2 |
| Motor rating output | 4.8 W |
| Overload protection | yes |
| Direction of rotation | right |
| Display | TFT |
| Speed display | TFT |
| Speed range | 0.01 - 200 rpm |
| Setting accuracy speed | ±0.01 rpm |
| Speed adjustment | TFT |
| Torque display | yes |
| Torque measurement | yes |
| Timer | yes |
| Timer display | TFT |
| Time setting range | 0.017 - 6000 min |
| Temperature measurement resolution | 0.1 K |
| Working temperature display | TFT |
| Connection for ext. temperature sensor | PT 100 |
| Graph function | yes |
| Operating mode | timer and continuous operation |
| Calibration option | yes |
| Touch function | yes |
| Permitted density | 9999 kg/dm3 |
| Working temperature | -100 - 300 °C |
| Fastening on stand | extension arm |
| Support rod diameter (with integrated fastening on stand) | 16 mm |
| Telescope stand stroke | 200 mm |
| Plug-in coupling (Ø) | 12 mm |
| Basic container volume | 600 ml |
| Stand | Rotastand |
| Stroke max. | 61 mm |
| Diameter | 16 mm |
| Dynamic load | 5 kg |
| Dimensions (W x H x D) | 351 x 629 x 372 mm |
| Weight | 7.1 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 40 |
| RS 232 interface | yes |
| USB interface | Micro-USB |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 24 W |
| Power input standby | 0.06 W |
| DC Voltage | 24 V= |
| Current consumption | 1000 mA |
