Descripción

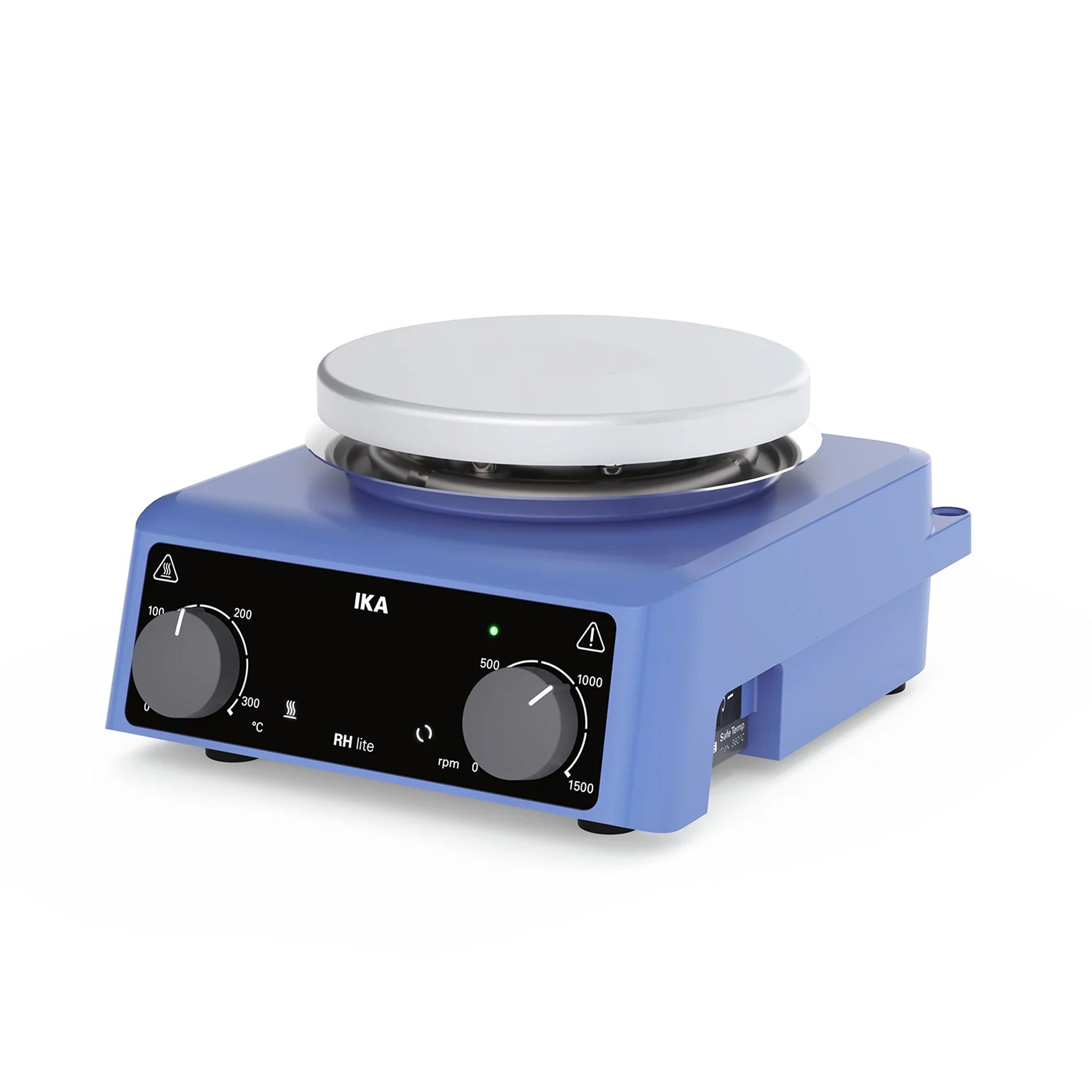

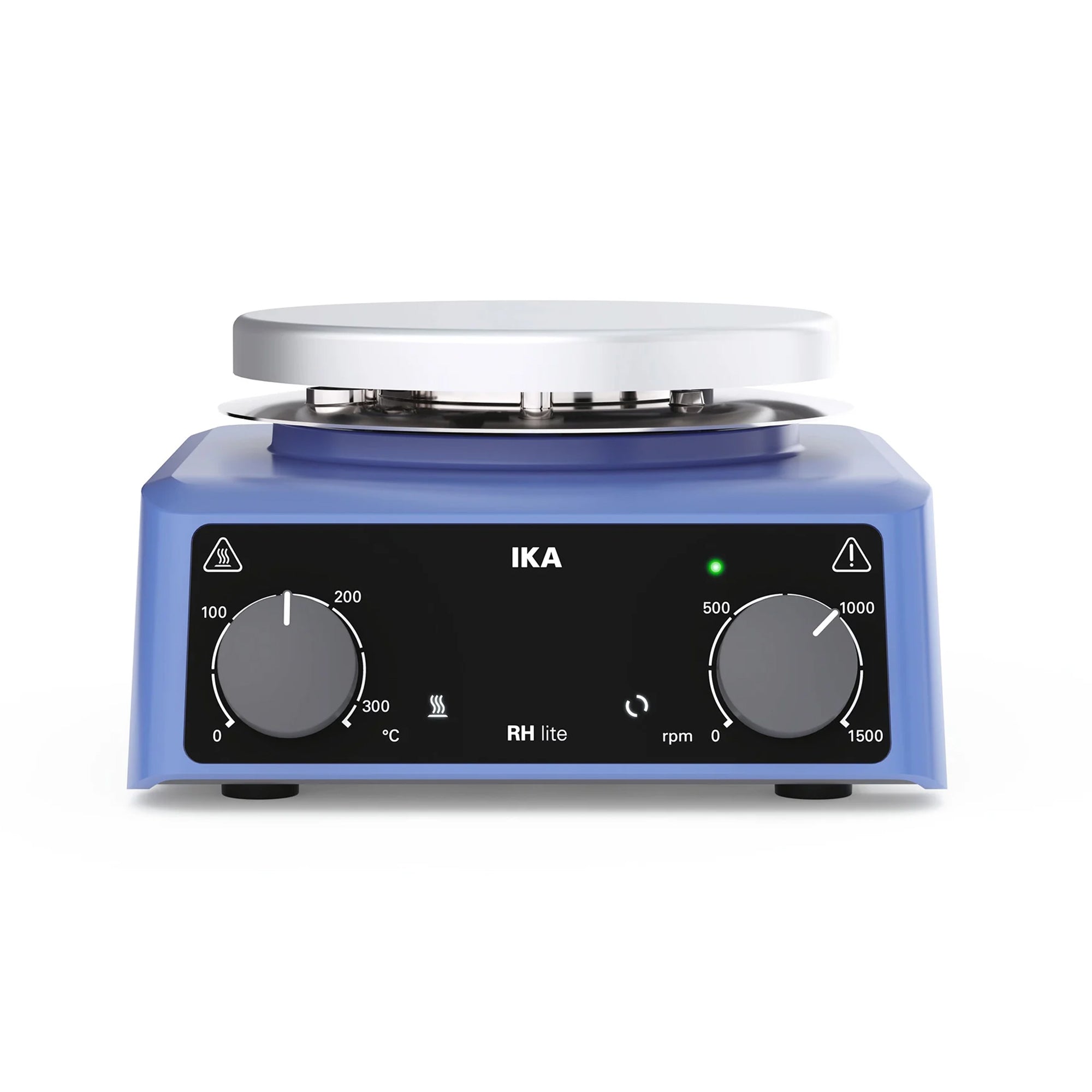

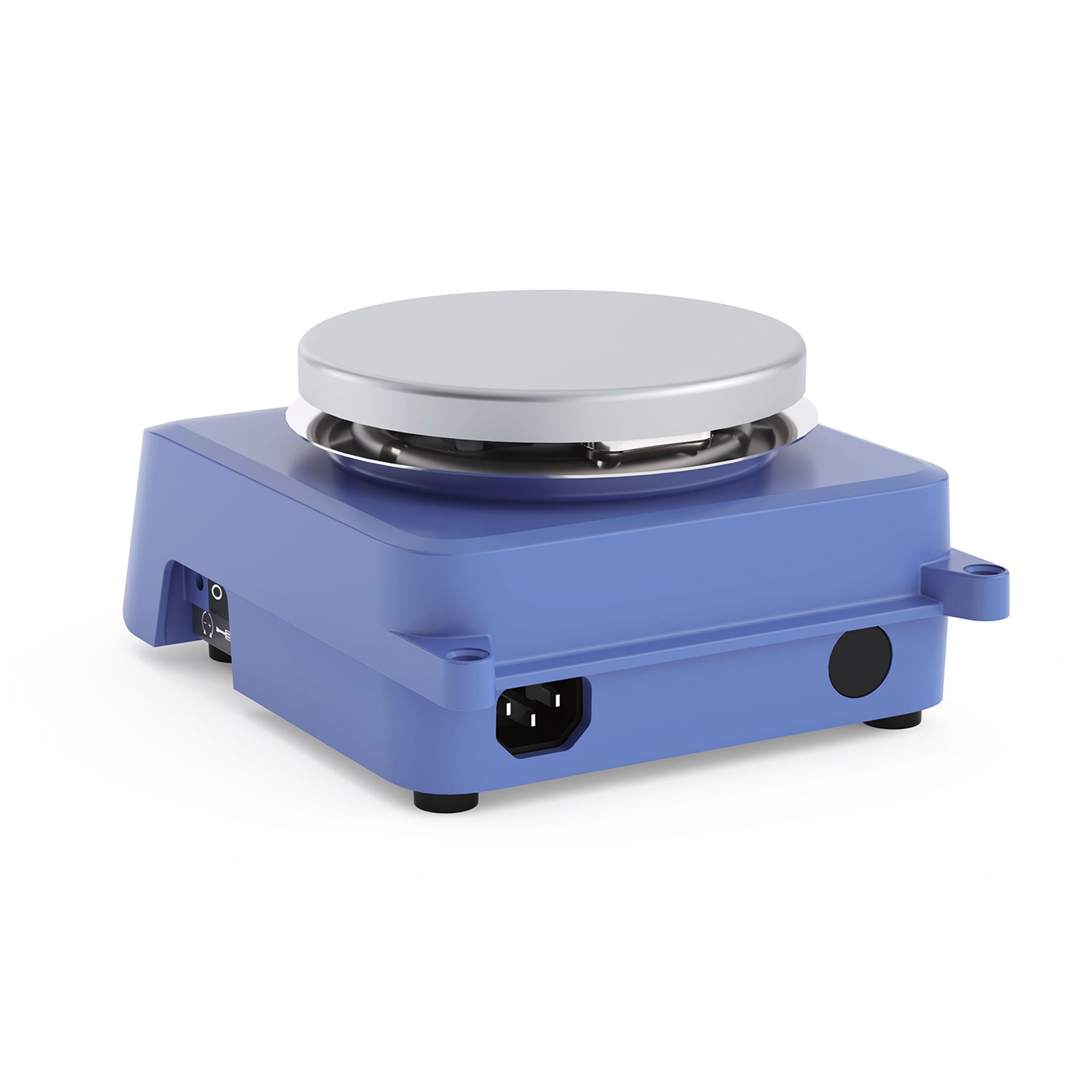

The IKA RH lite magnetic stirrer is an ideal entry-level solution for laboratories seeking reliable heating and stirring performance in a compact and cost-effective design. Developed for routine applications and basic laboratory workflows, it combines dependable functionality, solid construction, and user-friendly operation to deliver efficient results without unnecessary complexity.
Key Features:
- Compact and affordable magnetic stirrer with heating function
- Designed for simple laboratory applications and routine processes
- 600 W heating power for fast and efficient heating
- Maximum plate temperature of 310°C for a wide range of applications
- Adjustable temperature safety circuit compliant with EN IEC 61010-2-010 standards
- Independent heating and stirring controls using two intuitive rotary/push knobs
- Robust 135 mm aluminum heating plate with enhanced surface durability
- Energy-efficient EC motor provides powerful stirring performance up to 1,500 rpm
- Extremely compact footprint of only 168 × 217 mm, ideal for limited bench space
- Low self-heating plate design suitable for temperature-sensitive samples
- Two tripod mounting points allow flexible accessory integration and secure experimental setups
Simple and Practical Design
- No external temperature control required for basic laboratory applications
- Reduced complexity helps lower costs and simplifies operation
- Integrated temperature safety circuit maintains safe operation
- Ideal for processes where direct heating plate control is sufficient
Improvements Over the RH Basic 2
- Higher heating power
- Larger heating plate surface
- Improved IP protection rating
- Modern dual rotary/push-button operating concept
- More compact, space-saving design
- Enhanced reliability through a durable heating plate and efficient EC motor
Ideal Laboratory Entry-Level Solution
The RH lite delivers the essential features required for safe, reliable, and efficient heating and stirring. Its combination of compact size, strong performance, intuitive controls, and robust construction makes it an excellent choice for everyday laboratory applications.
Package Includes:
- RH lite
- IKAFLON® 30 Magnetic stirring bar
- Screwdriver
Country of Origin: Germany
Warranty: Comes with 2+1 Year Warranty. See details here
Specifications:
| Number of stirring positions | 1 |
| Stirring quantity max. per stirring position (H2O) | 15 l |
| Maximum load | 20 kg |
| Motor rating output | 7 W |
| Motor principle | Brushless DC |
| Direction of rotation | right |
| Speed display set-value | scale |
| Speed display actual-value | scale |
| Speed adjustment | Turning knob |
| Speed range | 100 - 1500 rpm |
| Stirring bar length | 20 - 80 mm |
| Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) | +6 K |
| Heat output | 600 W |
| Temperature display set-value | scale |
| Temperature display actual-value | scale |
| Temperature unit | °C |
| Heating temperature range | Room temp. + device self heating - 310 °C |
| Heat control | Turning knob |
| Temperature setting range | 0 - 310 °C |
| Adjustable safety circuit | 50 - 360 °C |
| Set-up plate material | Aluminim alloy |
| Set-up plate dimensions | Ø 135 mm |
| Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C) | ±5 % |
| Heating rate (1l H2O in H1500) | 5.5 K/min |
| Heat control accuracy of heating plate centre without vessel (at 100°C) | ±5 K |
| Heat control accuracy of heating plate centre without vessel (at 300°C) | ±15 K |
| Dimensions (W x H x D) | 168 x 100 x 217 mm |
| Weight | 2.1 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 22 |
| Voltage | 115 V |
| Frequency | 50/60 Hz |
| Power input | 620 W |
