Descripción

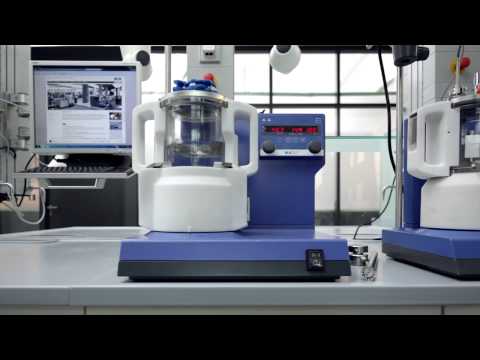

The LR 1000 basic is a cost efficient, modular laboratory reactor designed for optimizing chemical reaction processes as well as for mixing, dispersing and homogenization applications at the laboratory scale.
The reactor is especially designed for the unique applications requirements that define the cosmetic and pharmaceutical industries. The temperature of the medium can be as high as 120 ºC. The temperature of the heating source, which is located at the bottom of the vessel, is controlled accordingly to reach the set temperature inside the medium.
A PT 100.30 temperature sensor and the corresponding receptacle LR 1000.61 for the lid are included with this package.
Features:
- Digital display for monitoring the speed and temperature

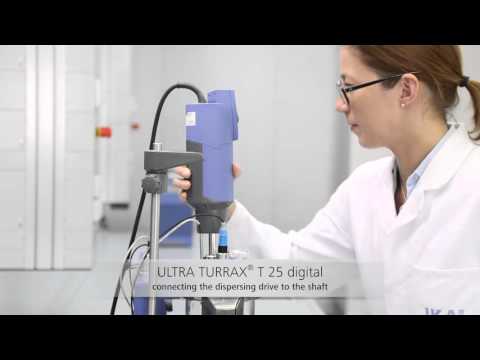

- Expandable for use with the ULTRA- TURRAX® T 25 digital (Accessory)
- Standard joint fittings on the lid: 1x NS 29, 3x NS 14 for flexible adaptation of further equipment
- Vacuum valve included with delivery
- Anchor stirrer with PTFE-scrapers available (Accessory)
- Connections to attach a cooling source to the back of the unit
- Manual adjustable safety circuit
- Integrated safety shutdown when vessel or lid is removed from the base
Package Includes:
- LR 1000 basic base
- LR 1000.1 Laboratory reactor vessel
- LR 1000.61 Sensor receptacle
- PT 100.30 Temperature sensor
- Support rod, for securing accessories
- Hose connectors for cooling hoses (2 pcs.)
Country of Origin: Germany
Warranty: Comes with 2+1 Year Warranty. See details here
| Useable volume max. | 1000 ml |
| Useable volume with disperser tool min. | 500 ml |
| Working temperature max. | 120 °C |
| Attainable vacuum | 25 mbar |
| Viscosity max. | 100000 mPas |
| Speed range | 10 - 150 rpm |
| Support rod diameter (with integrated fastening on stand) | 16 mm |
| Material in contact with medium | AISI 316L, 1.4571, borosilicate glass 3.3, PTFE, PEEK, FFKM |
| Reactor vessel openings (units/standard) | 2x NS 29/32, 2x NS 14/23 & 2x GL 14 |
| Permissible ON time | 100 % |
| Temperature measurement resolution | 0.1 K |
| Nominal torque | 3 Nm |
| Heat output | 1000 W |
| Cooling medium permissible operating pressure | 1 bar |
| Weighing range max. | 2000 g |
| Weighing resolution | 1 g |
| pH measuring range | 0 - 14 pH |
| pH measurement resolution | 0.1 pH |
| Speed min (adjustable) | 10 rpm |
| Heating temperature max. | 180 °C |
| Adjustable safety circuit | 47 - 225 °C |
| Adjustable safety circuit, temperature deviation | ±10 - ±20 K |
| Cooling medium temperature min. | 3 °C |
| Set temperature resolution | ±1 K |
| Heat control accuracy of medium with sensor | ±0.2 K |
| Speed deviation | ±5 rpm |
| Speed display | TFT |
| Heat control | TFT |
| Connection for ext. temperature sensor | PT 100 |
| Stirring element fastening | special output shaft |
| Torque display | yes |
| Torque measurement | trend |
| Timer | yes |
| Timer display | TFT |
| Speed adjustment | 1 RPM steps |
| Type of cooling | flow |
| Temperature display | yes |
| Working temperature sensor | PT 100 |
| Safety temperature sensor | PT1000 |
| Working temperature display | TFT |
| Safety temperature display | TFT |
| Display for operation with ext. sensor | yes |
| Safety cutout | yes |
| MV1 interface | yes |
| pH meter interface | yes / BNC socket female |
| pH value display | TFT |
| Dimensions (W x H x D) | 443 x 360 x 295 mm |
| Weight | 16 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | yes |
| USB interface | yes |
| Bluetooth interface | yes |
| Voltage | 115 V |
| Frequency | 50/60 Hz |
| Power input | 1200 W |
