Descripción

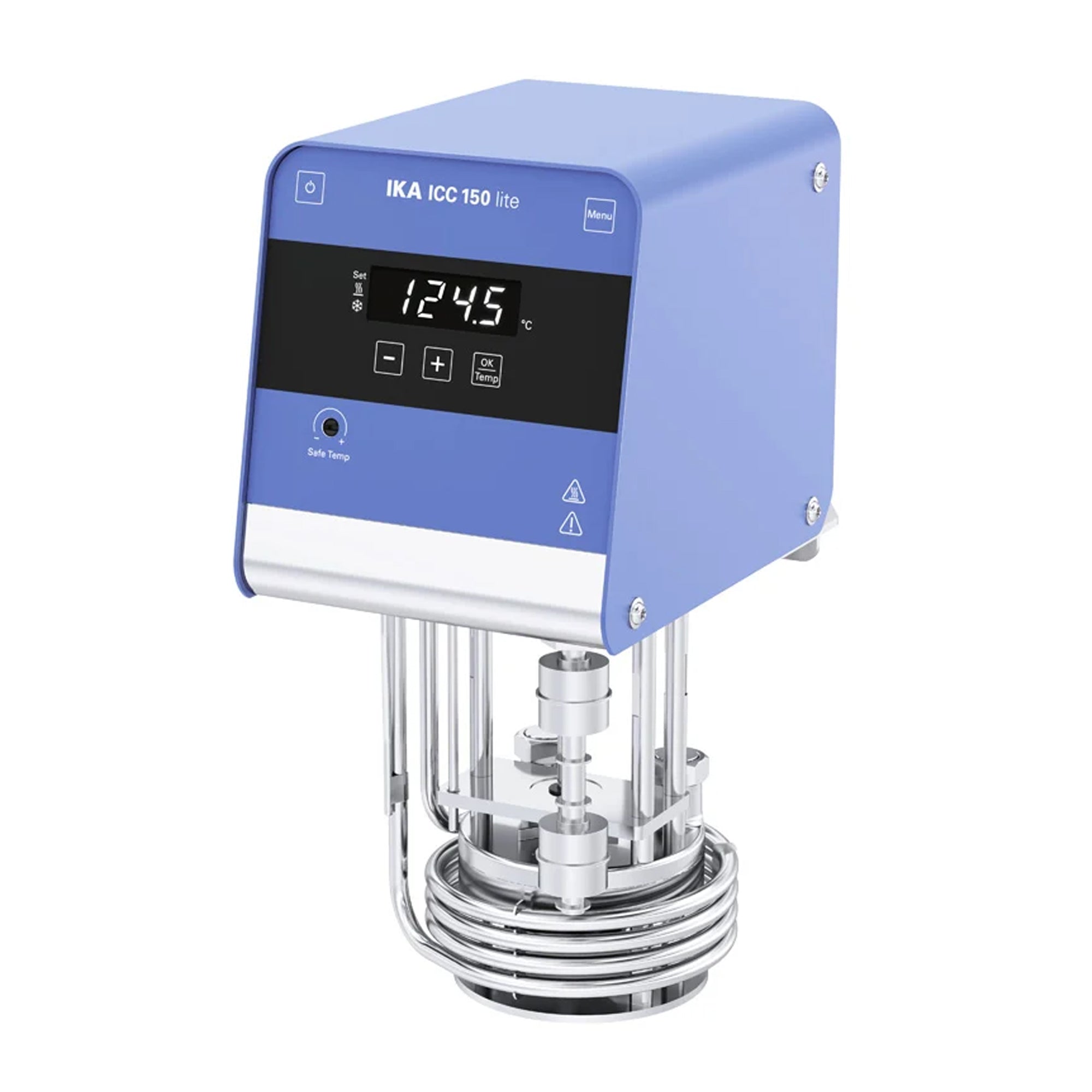

The IKA ICC 150 lite is a compact immersion circulator from the lite series, focused on essential functions with high-quality performance and efficient operation. It tempers liquids up to 150 °C and includes an integrated pressure/suction pump, so it can be used for both internal and external temperature-control applications.
Approved under DIN 12876 safety class III for use with flammable liquids, the ICC 150 lite detects overflow, for example from an unintended increase in oil volume, and safely switches off the heating. Its coated stainless steel housing and integrated stand deliver a robust, low-maintenance design, while USB and RS 232 interfaces support monitoring, control, and documentation.
Key features:
- Compact immersion circulator tempering liquids up to 150 °C with 1000 W heat output
- DIN 12876 safety class III approval for use with flammable liquids
- Integrated pressure/suction pump for internal and external applications
- Overflow detection with safe heating shut-off for added protection
- Robust coated stainless steel housing with integrated stand for easy cleaning
- USB-B and RS 232 interfaces for monitoring, control, and documentation
Package Includes:
- ICC 150 lite compact immersion circulator
Country of Origin: Germany
Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here
Specifications:
| Appliance type | Compact immersion circulators |
| Class designation acc. DIN 12876 | III |
| Identification according to DIN 12876 | FL |
| Heat output | 1000 W |
| Working temperature | room temp. - 150 °C |
| Operating temperature min. (with external cooling) | -25 °C |
| Temperature display | yes |
| Temperature control | PID |
| Working temperature sensor | PT1000 |
| Safety temperature sensor | PT1000 |
| Working temperature display | LED |
| Safety temperature display | LED |
| Temperature stability DIN 12876 | ±0.05 K |
| Display resolution | 0.1 K |
| Set temperature resolution | 0.1 K |
| Warning function optical | yes |
| Warning function acoustic | yes |
| Adjustable safety circuit | 0 - 160 °C |
| Sub-level protection | yes |
| Over-level protection | yes |
| Pump type | Pressure- / suction pump |
| Pump pressure max. (0 liters discharge flow) | 0.3 bar |
| Pressure pump (suction side) (0 liter flow) | 0.1 bar |
| Flow rate max. (0 bar back pressure) | 15 l/min |
| Bath depth min. | 150 mm |
| Appliance fastener | clamp |
| Range of universal clamp | 0 - 40 mm |
| Technical data complies with the standard | DIN 12876 |
| Permissible ON time | 100 % |
| Dimensions (W x H x D) | 135 x 303 x 180 mm |
| Weight | 4.7 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | yes |
| USB interface | USB-B |
| Voltage | 115 V |
| Frequency | 50/60 Hz |
| Power input | 1100 W |
