Descripción

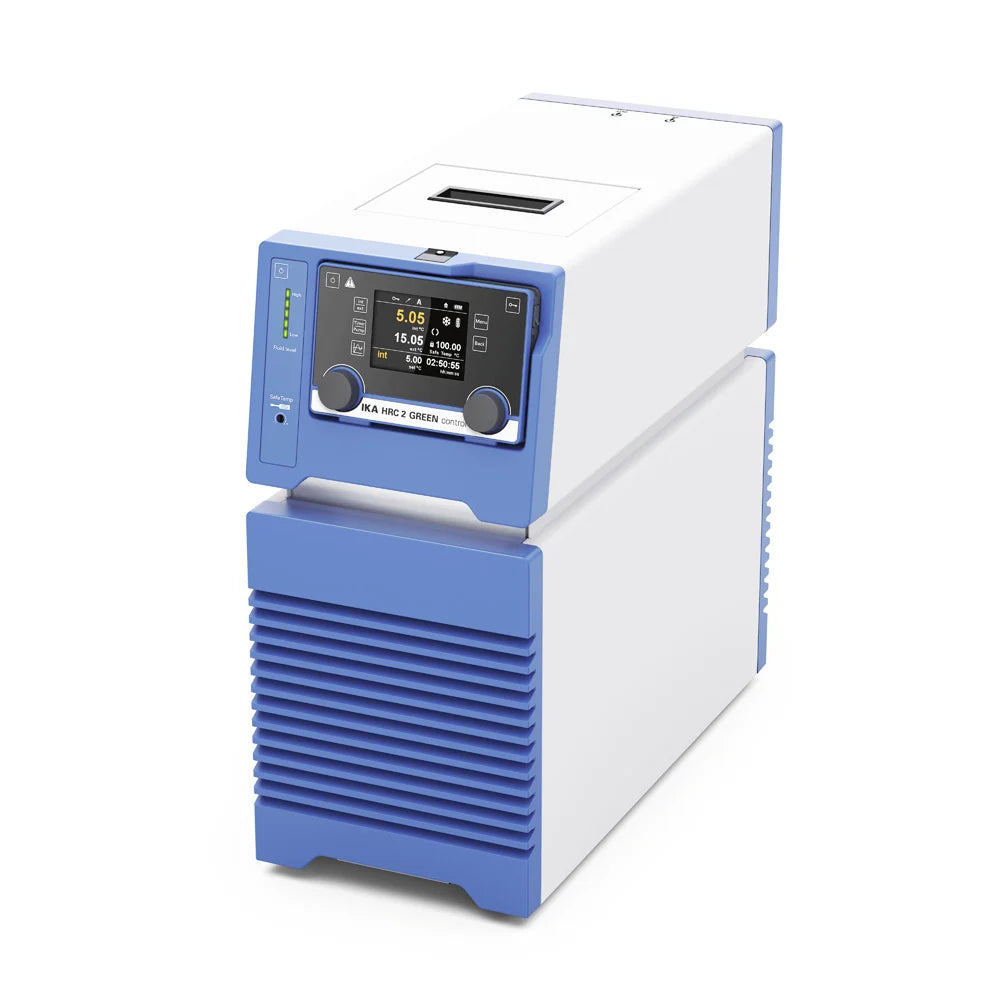

The HRC 2 GREEN control cooling and heating circulation thermostat offers a wide operating range from -30°C to 100°C and features a powerful, continuously adjustable pressure and suction pump for precise temperature control.
Its demand-driven, speed-regulated compressor reduces noise levels and operating costs, while the use of the natural refrigerant R290 ensures high energy efficiency and compliance with modern environmental standards. The well-insulated 4-liter bath enables rapid heating and minimizes unwanted heat input at low temperatures.
Up to 2.5 liters of thermofluid are available for external temperature control circuits without refilling. An integrated filling hopper and drain valve provide safe and clean handling of the thermofluid, while the front-access design allows easy cleaning of the stainless steel mesh air filter. A front drain valve with hose connection ensures safe emptying without direct contact with the fluid.
The HRC 2 GREEN control is ideally suited as a peripheral unit for bioreactors, synthesis reactors, and other applications requiring efficient heat exchange and precise temperature control via an external temperature sensor.
‚Features:
- Speed-controlled refrigeration system unit with 620 W cooling capacity
- Natural refrigerant R290
- Speed-controlled pump made of PEEK: (0.5 bar; 22 l/min)
- 1500 W heating capacity
- Digital level indicator
- Safety classification III (FL) according to DIN 12876
- Adjustable safety circuit
With the wireless controller (WiCo), the HRC 2 GREEN control can be operated safely and conveniently from anywhere. Process sequences can be simplified and automated thanks to 10 freely programmable temperature ramps, each with 10 steps.
Additional functions of the control device:
- Operating Mode D: Confirmation Mode
- Signal when the set temperature is reached
- Timer/Counter functions
- Outgassing function for Labreactors
Package Includes:
- Connection socket for external PT 100 temperature sensor (Accessories: PT100.30, Lemo connector)
- Connection of magnetic valves possible (multi IO)
- Alarm contact (multi IO)
- Connector for Standby contact input (multi IO)
- RS 232
- USB
Country of Origin: Germany
Warranty: Comes with 2 Years Warranty
Specifications:
| Appliance type | Circulation thermostat |
| Class designation acc. DIN 12876 | III |
| Identification according to DIN 12876 | FL |
| Cooling agent | R290 |
| Cooling agent quantity | 79 g |
| Cooling agent pressure max. | 21 bar |
| Heat output | 1200 W |
| Cooling capacity (@20°C) | 620 W |
| Cooling capacity (@10°C) | 600 W |
| Cooling capacity (@0°C) | 480 W |
| Cooling capacity (@-10°C) | 350 W |
| Cooling capacity (@-20°C) | 200 W |
| Cooling capacity (@-30°C) | 80 W |
| Working temperature | -30 - 100 °C |
| Operating temperature min. | -30 °C |
| Temperature display | yes |
| Temperature stability DIN 12876 (@+70°C) | ±0.05 K |
| Temperature stability DIN 12876 (@-10°C) | ±0.1 K |
| Temperature control | PID |
| Working temperature sensor | PT 100 |
| Safety temperature sensor | PT1000 |
| Working temperature display | TFT |
| Safety temperature display | TFT |
| Connection for ext. temperature sensor | PT 100 |
| Temperature measurement, absolute accuracy Internal (adjustable by calibration) | ±0.5 K |
| Temperature measurement, absolute accuracy External (adjustable by calibration) | ±0.5 K |
| PT 100 deviation;DIN EN 60751 Kl. A | ≤ ± (0.15 +0.002xITI) K |
| Display resolution | 0.01 K |
| Display for operation with ext. sensor | yes |
| Set temperature resolution | 0.1 K |
| Warning function optical | yes |
| Warning function acoustic | yes |
| Warning function excess temperature | yes |
| Warning function insufficient temperature | yes |
| Adjustable safety circuit | 0 - 110 °C |
| Sub-level protection | yes |
| Over-level protection | yes |
| Filling volume | 1.4 - 4.0 l |
| Pump type | Pressure- / suction pump |
| Pump capacity adjustable | yes |
| Pump Speed min. | 2000 rpm |
| Pump Speed max. | 4000 rpm |
| Pump pressure max. (0 liters discharge flow) | 0.5 bar |
| Pressure pump (suction side) (0 liter flow) | 0.25 bar |
| Flow rate max. (0 bar back pressure) | 21 l/min |
| Fluid maximum viscosity | 50 mm²/s |
| Pump connection | M16x1 |
| Calibration option | yes |
| Technical data complies with the standard | DIN 12876 |
| Permissible ON time | 100 % |
| Multi-Interface | yes |
| Alarm output (potential-free contact) max. | 30 V AC/DC |
| Alarm output (potential-free contact) max. | 1 A |
| Solenoid valve output | 24 VDC |
| Solenoid valve output max. | 0.8 A |
| Standby input | 5 VDC |
| Noise level | 58 dB(A) |
| Dimensions (W x H x D) | 220 x 480 x 525 mm |
| Weight | 26.5 kg |
| Permissible ambient temperature | 5 - 32 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | yes |
| USB interface | Micro-USB |
| Analog output | yes |
| Voltage | 115 V |
| Frequency | 50/60 Hz |
| Power input | 1500 W |
