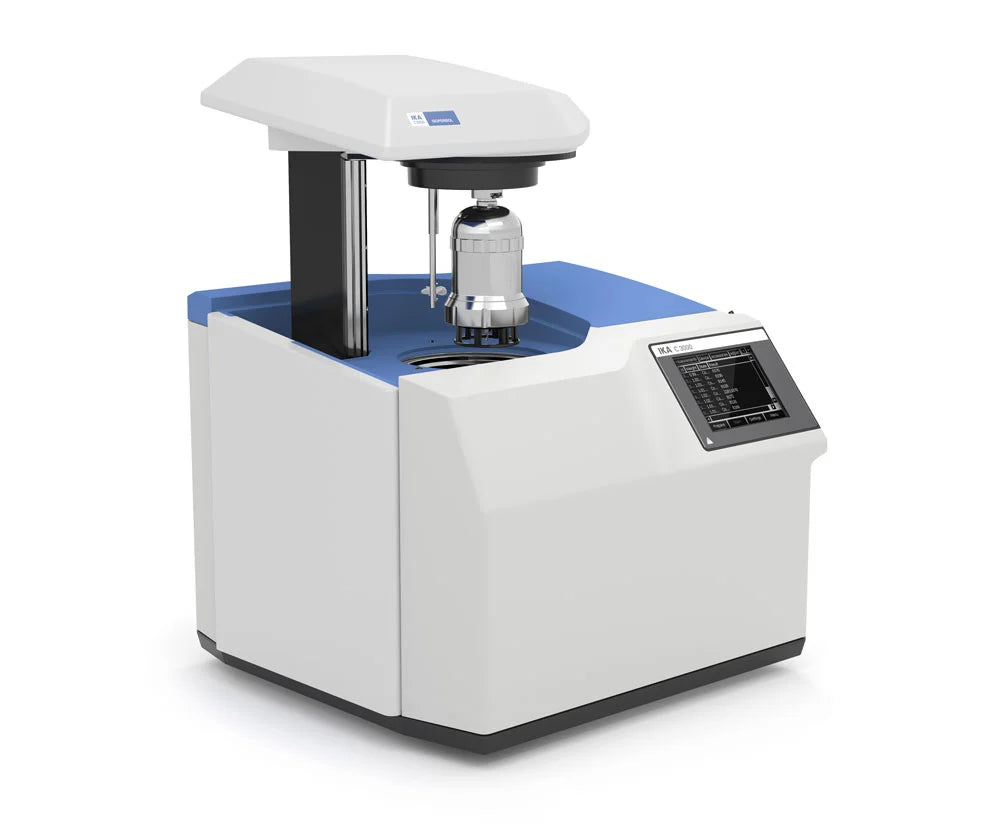

The IKA C 3000 Isoperibol Calorimeter is the next-generation replacement for the IKA C 2000, offering enhanced performance, improved efficiency, and a more user-friendly design. Key upgrades include faster test cycles, a spherical decomposition vessel for improved heat transfer and pressure stability, and an intuitive touchscreen interface. Oxygen filling and water management are fully automated, simplifying operation and reducing user intervention.
The instrument performs calorific value measurements in accordance with ISO 1928, ASTM D4809, ASTM D5865, ASTM 240, and GB/T 213 standards, making it ideal for demanding applications in industries such as power generation, cement production, and fuel analysis where precise energy measurements are critical.
Features:
- Intuitive operation through a touchscreen display or standard USB mouse
- Selectable starting temperatures of 22°C or 30°C
- Fully automated ignition, water filling and draining, and oxygen charging
- Multiple connectivity options including Ethernet, RS-232, USB, and SD card
- Six integrated temperature sensors for comprehensive monitoring and highly accurate results
- Spherical decomposition vessel design for enhanced pressure resistance and improved heat transfer
- Simplified sample preparation with advanced crucible holder technology
- Compatible with external chillers, such as the RC 2 GREEN basic
- Supplied with wear parts and consumables sufficient for approximately 500 tests
The IKA C 3000 combines automation, accuracy, and ease of use, making it an excellent solution for high-throughput calorific value determination in laboratory and industrial environments.
Package Includes:
- C 3000 measuring cell
- C 6010 Decomposition vessel, standard
- RC 2 GREEN basic
Specifications:
| Measuring range max. | 40000 J |
| Measuring mode dynamic 22°C | yes |
| Measuring mode isoperibol 22°C | yes |
| Measuring mode dynamic 30°C | yes |
| Measuring mode isoperibol 30°C | yes |
| Measurements/h dynamic | 6 |
| Measurements/h isoperibol | 4 |
| Reproducibility dynamic (1g benzoic acid NBS39i) | 0.15 %RSD |
| Reproducibility isoperibol (1g benzoic acid NBS39i) | 0.05 %RSD |
| Touchscreen | yes |
| Working temperature | 22 - 30 °C |
| Temperature measurement resolution | 0.0001 K |
| Cooling medium temperature | 12 - 27 °C |
| Cooling medium permissible operating pressure | 1.5 bar |
| Cooling medium | tap water |
| Type of cooling | flow |
| Chiller | RC 2 basic |
| Flow rate | 60 - 70 l/h |
| Rec. flow rate at 18°C | 60 l/h |
| Oxygen operating pressure max. | 40 bar |
| Interface scale | RS232 |
| Interface printer | USB |
| Interface PC | RS232 |
| Interface ext. keyboard | yes |
| Oxygen filling | yes |
| Decomposition vessel C 6010 | yes |
| Decomposition vessel C 6012 | yes |
| Analysis according to ASTM D240 | yes |
| Analysis according to ASTM D4809 | yes |
| Analysis according to ASTM D5865 | yes |
| Analysis according to ISO 1928 | yes |
| Analysis according to GB T213 | yes |
| Works according to DIN 51900 | yes |
| Works according to DIN EN ISO 1716 | yes |
| Works according to DIN EN ISO 9831 | yes |
| Works according to DIN EN ISO 18125 | yes |
| Works according to DIN EN 15170 | yes |
| Works according to DIN EN 15400 | yes |
| Works according to DIN CEN TS 14918 | yes |
| Works according to DIN CEN/TS 16023 | yes |
| Works according to DIN SPEC 19524 | yes |
| Works according to ASTM D240 | yes |
| Works according to ASTM D4809 | yes |
| Works according to ASTM D5468 | yes |
| Works according to ASTM D5865 | yes |
| Works according to ISO 1928 | yes |
| Works according to GB T213 | yes |
| Dimensions (W x H x D) | 500 x 425 x 450 mm |
| Weight | 29 kg |
| Permissible ambient temperature | 20 - 30 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 20 |
| RS 232 interface | yes |
| USB interface | USB-B |
| Voltage | 100 - 120 V |
| Frequency | 50/60 Hz |
| Power input | 1700 W |
Country of Origin: Germany
