Descripción

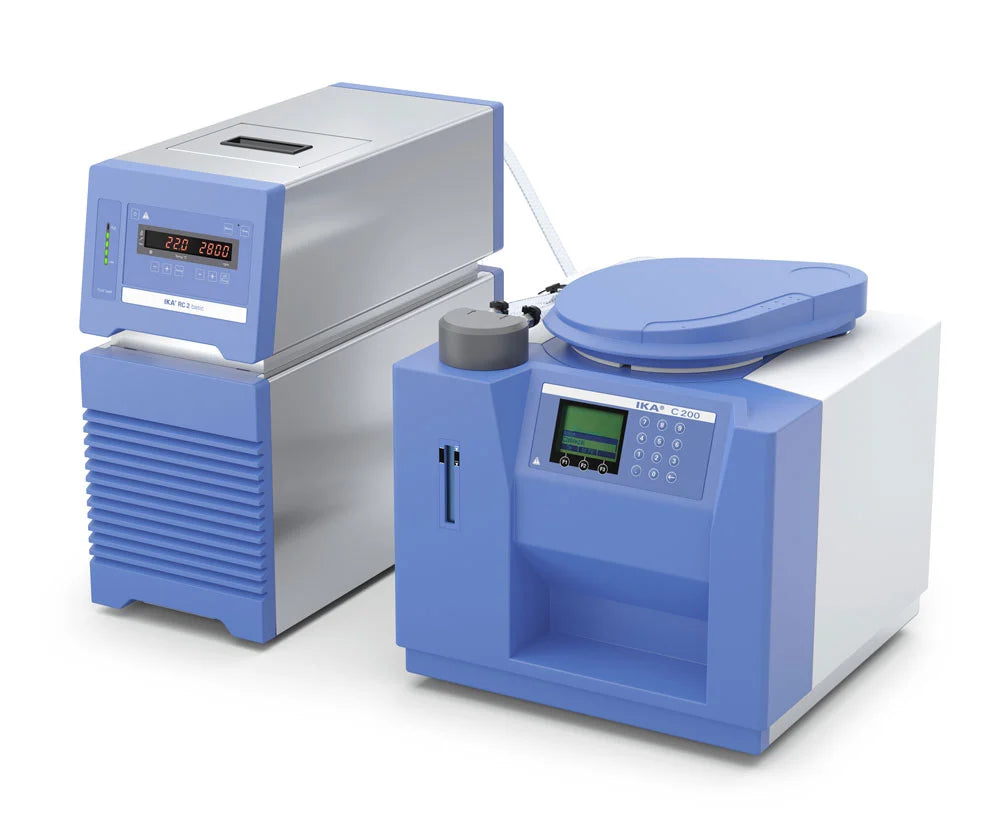

The IKA C 200 h Auto package runs the C 200 combustion calorimeter with a completely automated water cycle. The water circulates in a closed loop and is held at a constant temperature by a recirculating chiller, shortening preparation time for each experiment and improving reproducibility. This makes it especially convenient for laboratories that run a low number of analyses.
This halogen-resistant configuration ships with the catalytically activated C 5012 decomposition vessel, built from Hastelloy to resist corrosion from high-chlorine samples and to raise recovery rates when halogens or sulfur (over 3 %) must be analyzed. The semi-automated, standard-conforming calorimeter determines the gross calorific value of liquid and solid samples, with four operating modes — isoperibol, dynamic, manual, and time-controlled — to tune measurement times to individual needs.
Key features:
- Fully automated closed-loop water handling with recirculating chiller
- Catalytically activated, halogen-resistant C 5012 Hastelloy vessel for halogen and sulfur samples
- Determines gross calorific value of liquid and solid samples
- Four operating modes: isoperibol, dynamic, manual, and time-controlled
- Complies with DIN 51900, ISO 1928, ASTM D240, D4809, D5865, D1989, D5468, and E711
- Optional C 6040 CalWin software for control, monitoring, and data export to Excel, Word, SQL, and LIMS
Package Includes:
- C 200 measuring cell
- C 5012 decomposition vessel, halogen resistant
- C 200.2 conversion kit for C 5012
- C 200.RC set of hoses
- RC 2 GREEN basic recirculating chiller
- C 248 oxygen filling station
- Ignition adapter and water emptying hose
Country of Origin: Germany
Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here
Specifications:
| Measuring range max. | 40000 J |
| Measuring mode dynamic 25°C | yes |
| Measuring mode isoperibol 25°C | yes |
| Measuring time dynamic approx. | 8 min |
| Measuring time isoperibol approx. | 17 min |
| Reproducibility dynamic (1g benzoic acid NBS39i) | 0.1 %RSD |
| Reproducibility isoperibol (1g benzoic acid NBS39i) | 0.1 %RSD |
| Working temperature max. | 25 °C |
| Temperature measurement resolution | 0.0001 K |
| Cooling medium permissible operating pressure | 2 bar |
| Cooling medium | tap water |
| Type of cooling | flow |
| Chiller | RC 2 basic |
| Rec. flow rate at 18°C | 60 l/h |
| Oxygen operating pressure max. | 40 bar |
| Interface printer | Centronix |
| Interface PC | RS232 |
| Decomposition vessel C 5012 | yes |
| Decomposition vessel, halogen resistant | yes |
| Works according to DIN 51900 | yes |
| Works according to DIN EN ISO 1716 | yes |
| Works according to DIN EN ISO 18125 | yes |
| Works according to DIN EN 15400 | yes |
| Works according to DIN CEN TS 14918 | yes |
| Works according to DIN CEN/TS 16023 | yes |
| Works according to DIN SPEC 19524 | yes |
| Works according to ASTM D240 | yes |
| Works according to ASTM D4809 | yes |
| Works according to ASTM D5468 | yes |
| Works according to ASTM D5865 | yes |
| Works according to ISO 1928 | yes |
| Works according to GOST Certified | yes |
| Dimensions (W x H x D) | 400 x 400 x 400 mm |
| Weight | 64.675 kg |
| Permissible ambient temperature | 20 - 25 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 20 |
| RS 232 interface | yes |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 120 W |
| Batteries included with the product? | yes |
| Battery Cell Type | CR2032 |
| Number of Batteries | 1 |
| Battery Weight | 3 g |
| How is the Battery packaged | within appliance |
| Battery Energy Content | 0.69 Wh |
| Battery Voltage | 3 V |
