The Edan SE-1202, as a next-generation ECG workstation, provides a comprehensive set of cardiac diagnosis tools, delivering cutting-edge technologies to support your clinical decisions in cardiac practice. The SE-1202 is equipped with exquisite glass-covered surface which supports easy cleaning and disinfection. Powerful hardware and soft tools ensure excellent performance in each practice.
Highlights:
- Twelve channel ECG with WiFi and Glasgow Interpretation

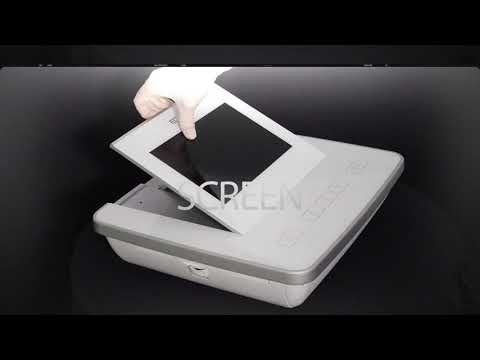

- 10.1" LCD display with touch screen
- Auto Analyzing and Diagnostic Software (Interpretation)
- Preview and printing for waveform and analysis
- Built-in rechargeable Lithium battery
- Built-in thermal printer
Features:
- 10.1″ Touch screen
- 1000 ECG test storage
- Pacemaker detection
- Auto arrhythmia detection
- 12-lead standard resting ECG
- 9-lead resting ECG tailored for neonates
- Vector ECG & timed vector ECG (VCG&TVCG)
- Signal-average ECG (SAECG)
- Heart Rate Variability (HRV)
- ST-view (Intuitive Display of ST-segment)
- File export for PDF, JPG, FDA XML, DICOM ECG Waveform/Worklist, HL7
Package Includes:
- 1 x ECG Cable (4mm, banana connector, AHA), P/N 01.57.471614
- 100 x Resting Tab Electrodes, P/N PT-2334
- 10 x Unomedical 10-Lead Universal Clips, P/N 0334
- 1 x Z-Fold Recording Paper (110mm x 140mm), P/N SE-12P
- 1 x Power Cord (USA Hospital Grade), P/N 01.13.036106
- 1 x Rechargeable Lithium Battery (2200mAH), P/N 21.21.064149
- 1 x Fixed bar for battery, P/N 11.51.32501
- 2 x Fuse 1A, P/N 11.21.64073
- 1 x FDA-XML Export format, P/N 02.01.212817
- 1 x SCP Export format, P/N 02.01.212818
- 1 x VCG (Vector ECG) function, P/N 02.01.212819
- 1 x TVCG (Timer Vector ECG), P/N 02.01.212820
- 1 x VLP (Ventricular Late Potentials), P/N 02.01.212821
- 1 x Calculated VCG (Calculated Vector ECG), P/N 02.01.212822
- 1 x DICOM Format Export, P/N 02.01.212826
- 1 x Direct communication with HIS via DICOM Worklist & DICOM Storage, P/N 02.01.212823
- 1 x Direct communication with HIS via HL7, P/N 02.01.212824
- 1 x User Manual
- 1 x Quick Reference Card
- User guide for interpretation
Country of Manufacture: China
