Descripción

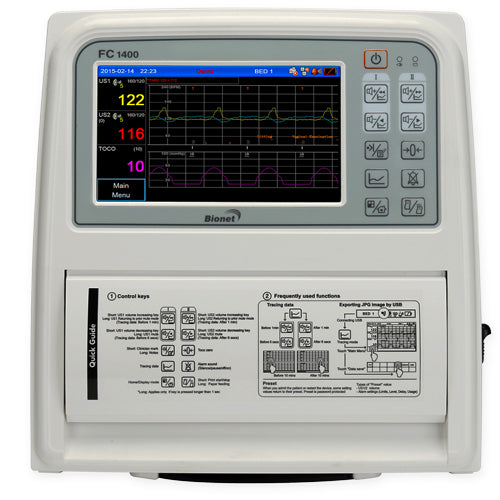

The FC 1400 is an antepartum touch screen fetal monitor which detects and displays twin fetus heart rates and uterine activity in real-time on the 7” color touch screen LCD monitor. Touch interface, along with 10 smart keys for 16 functions, makes the operation easier and faster.
Features:
- Twin fetus heart rates and uterine activity
- Automatic fetal movement detection
- 7” wide color LCD viewer (800×480 resolution)
- Touch screen operation along with 10 smart keys for 16 functions
- 72-hour trace data reviewer
- High-speed printout of stored data
Package Includes:
- FC 1400 Main Unit,
- US Probe (x2),
- TOCO Probe,
- Event Marker Jack,
- Ultrasound Gel,
- Probe Belt (x3),
- Paper (x2),
- Power Adaptor & Hospital-Grade Power Cord,
- Operation Manual,
- 3-Year Warranty Card.
Country of Manufacture: South Korea
Warranty: Comes with 3 Years Manufacturer's Warranty
Specifications:
| Dimension | 296 (W) x 305.5 (H) x 97.5 (D) mm, approx. 2.6 kg |
| Display | 7" TFT wide LCD screen (800 X 480) |
| Recorder | Method: Thermal array print Type: Roll type Print speed: - Real time mode: 1, 2, 3 cm/min - Trace mode: 20, 30 cm/min Paper feeding function |
| Power | Input: 100 - 240 VAC, 1.5 - 0.7 A, 50 - 60 Hz / Output: 18 VDC, 2.8A |
| Battery (Option) | Li-ion: 4 hours (charging) / 2 hours (discharging) |
| External Link | USB flash drive |
| Fetal Heart Rate | Input Signal: Ultrasound pulsed doppler Ultrasound frequency: 1.0 MHz, 975 KHz Ultrasound power: FHR detection method: Autocorrelation FHR range: 50~210 BPM FHR accuracy: 120~160: ±1 BPM / Except 120~160 BPM: ±2 BPM |
| Uterine Contraction | Input Source: External Transducer with load cell Reference Control: One touch switch, auto zeroing Measurement range: 0~99 |
| Fetal Movement Measurement | Detection source: Ultrasound pulsed doppler, event marker |
| Data Storage | Storage for 72 hours |
| Auto CTG Analysis | Average Baseline FHR Number of UC Number of Acceleration Number of Deceleration: Late, Early, Variable High/Low Episode Short term Variability Signal Loss * CTG Analysis results is printed out every 10 minutes (Intermediate report) |
| Standard Accessories | Ultrasound doppler probe - 2 ea UC probe - 1 ea Event marker - 1 ea Printer paper - 2 rolls Power adaptor & cord - 1 ea Ultrasound gel - 1 ea Probe belt - 3 ea Operation manual - 1 ea Stand - 1 ea |
| Optional Accessories | Rechargeable battery (1 ea), Cart |
Bionet FC-1400 Fetal Monitor Brochure, Bionet FC-1400 Fetal Monitor Manual
