Descripción

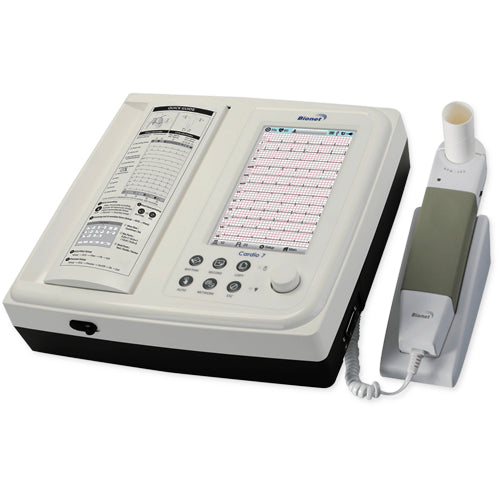

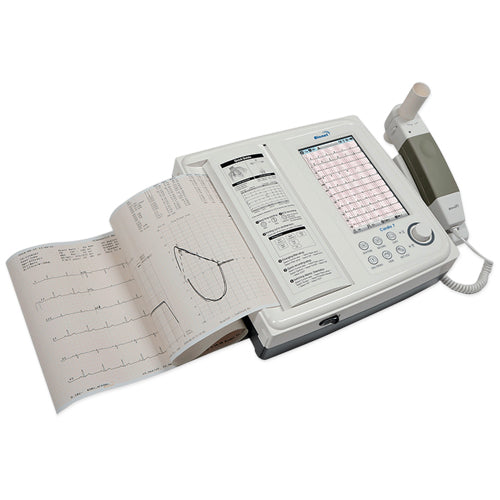

The Cardio7-S is a reliable interpretive touch screen electrocardiogram (ECG / EKG) machine combined with spirometry. It features a large 7” TFT LCD touch screen with Wi-Fi. It supports USB flash drive, a QWERTY keyboard, JPEG/PDF file format, one channel long-term recording, and storage of up to 200 ECGs and PFT tests. It stores and shows the recent 5-minute full channel ECG in order to print out the missed abnormal ECG waveforms. It prints in multiple formats, including 12/6/3 channel ECG reports, and FVC/SVC/MVV pulmonary test reports. It can be connected to PACS server through optional DICOM 3.0 and send the ECG and spirometer test reports to the server.
Features:
- Simultaneous, interpretive 12 channel resting ECG
- 7” color TFT LCD touch screen, real time preview
- Over 130 kinds of interpretation results based on Minnesota code
- 3/5/10 min long-term recording & automatic arrhythmia detection
- Internal storage up to 200 cases and USB storage
- BMS Plus software. Transfer of digital ECG to Windows based PC
Package Includes:
- Cardio7 Main Unit
- 10 Lead ECG Patient Cable
- Alligator Clips
- Electrodes
- Medi-Graph Paper
- Hospital Grade Power Cord
- Operation Manual
- Diagnostics Guide Book
- Quick Reference Guide
- 3-Year Warranty Card.
- Wi-Fi USB Dongle
- USB Flash Drive with BMS-Plus Software Included
- Spirometer
- Disposable mouthpiece - 100 ea
- Nose clip - 1 ea
- Adapter - 1 ea
- Handle dock - 1 ea
- Operation manual - 1 ea
- Diagnosis guide - 1 ea
Country of Manufacture: South Korea
Warranty: Comes with 3 Years Manufacturer's Warranty
ECG Specifications:
| ECG Leads | Simultaneous 10 Leads Resting ECG (12 channel) |
| Dimension | 290 (W) x 300 (D) x 97.5 (H) mm |
| Approximately 3.5 kg (Main Body) | |
| Recording Channel | 3CH+1RHY, 3CH+3RHY, 6CH+1RHY, 12CH, 1CH Long Time (1min) and Beat Report |
| Sensitivity | 2.5, 5, 10, 20, Auto (I~aVF: 10, V1~V6: 5) mm/mV |
| Printing Speed | 5, 12.5, 25, 50, 100mm/sec |
| Sampling Rate | Analysis Sampling Rate: 500 sample/sec Digital Sampling Rate: 8,000 sample/sec |
| Filters | AC (50/60Hz, -20dB or better), Muscle (25~35Hz, -3dB or better), Base Line Drift (off, 0.05, 0.1, 0.2Hz, -3dB or better), Low Pass Filter (off, 40Hz, 100Hz, 150Hz) |
| Display | 272 x 480 Pixel Resolution, 4.3” Color TFT Display 12 Channels Preview, ID, HR, Gain, Speed, Power Status |
| Export file format | ECG, XML, PDF, JPEG, MFER |
| User Interface | Touch Screen, Rotary Push-knob |
| Recorder | Thermal Print Head, Roll Paper Report Paper - Width: A4/Letter – 215mm (8.5”) - Length: A4 – 297mm (11.7”) Letter – 279mm (11”) Resolution: 8dot/mm (0.125mm pitch) |
| Patient data | ID, Name, Age, Gender, Height, Weight |
| Basic Measurement | Heart Rate: 30~300bpm (±3bpm) PR, QRS, QT/QTc, P-R-T axis |
| ECG Data Storage | Internal Storage for 200 ECGs: Built- in Memory External memory available |
| Electrical | Internal Noise: 20uV(p-p)max |
| Input Impedance: More than 50MΩ | |
| Input Voltage range: ±5mV | |
| CMRR: Greater than 105dB | |
| DC offset Voltage: ≥ ±400mV | |
| Patient Leakage Current: < 10uA | |
| Frequency Response: 0.05~150 with in –3dB | |
| Isolated, Defibrillation and ESU Protected | |
| Signal Quality Control | Pacemaker Pulse Detection Lead Fault Detection, Signal Saturation Detection |
| Power | Input: 100-240Vac, 1.5-0.75A, 50-60Hz, Output: 15Vdc, 4.2A |
| Battery type | Replaceable and Rechargeable, Lithium ion, 11.1V, 2600mA |
| Battery Capacity | 6 hours of normal use (without recording,200 ECGs) with 12 channel Battery charge time is 3 hours. |
| Communication | LAN, USB, WIFI (option) |
| Safety Conformity | Class I, Type CF Defibrillation-proof applied Part |
| Environment | Operating Temperature: 5~40°C Operating Humidity: 10~90%RH Atmospheric Pressure: 70~106KPa |
| Standard Accessory | Power Cord - 1 ea Patient Cable - 1 ea ECG clips - 1 set Disposable Electrodes - 1 pouch Chart paper - 1 ea Operation manual - 1 ea Rechargeable battery - 1 ea |
| Options | Cart, Hanger, USB WiFi dongle |
Spirometer Specifications:
| Dimension | 47 (W) x 200 (H) x 34 (D)mm, approx. 250g |
| Measuring Values | FVC: FVC, FEV 1.0, FEV 1/FVC, FEF 0.2 - 1.2L, FEF 25 - 75%, FEF 75 - 85%, PEF, FEF 25%, FEF 50%, FEF 75%, FIVC, FEV6, PEFT, FET 100% SVC: SVC, ERV, IRV, TV, EC MVV: MVV, FB, TV |
| Presentation | Flow volume loop Flow time plot Measurment values table |
| Measuring Range | Flow: 0 to ±14 L/s Volume: 0 to ± 12L |
| Measuring Method | Differential pressure method |
| Prediction Equation | Morris-Polgar, ECCS-Quanjer, Knudson-ITS, Pereira, Korea CJK |
| Sample Rate | 200 samples/sec |
| Flow Impedance | |
| Measuring Accuracy | Complies with ATS (American Thoracic Society) |
| Environment | Ambient temperature: 15 to 40°C (59 to 104°F) Relative humidity: 10 to 90% (non-condensing) Atmospheric pressure: 700 to 1060 hPa |
| Standard Accessories | Disposable mouthpiece - 100 ea Nose clip - 1 ea Adapter - 1 ea Handle dock - 1 ea Operation manual - 1 ea Diagnosis guide - 1 ea |
Bionet Cardio 7® Product Brochure, Bionet Cardio 7® Product Manual
