Description

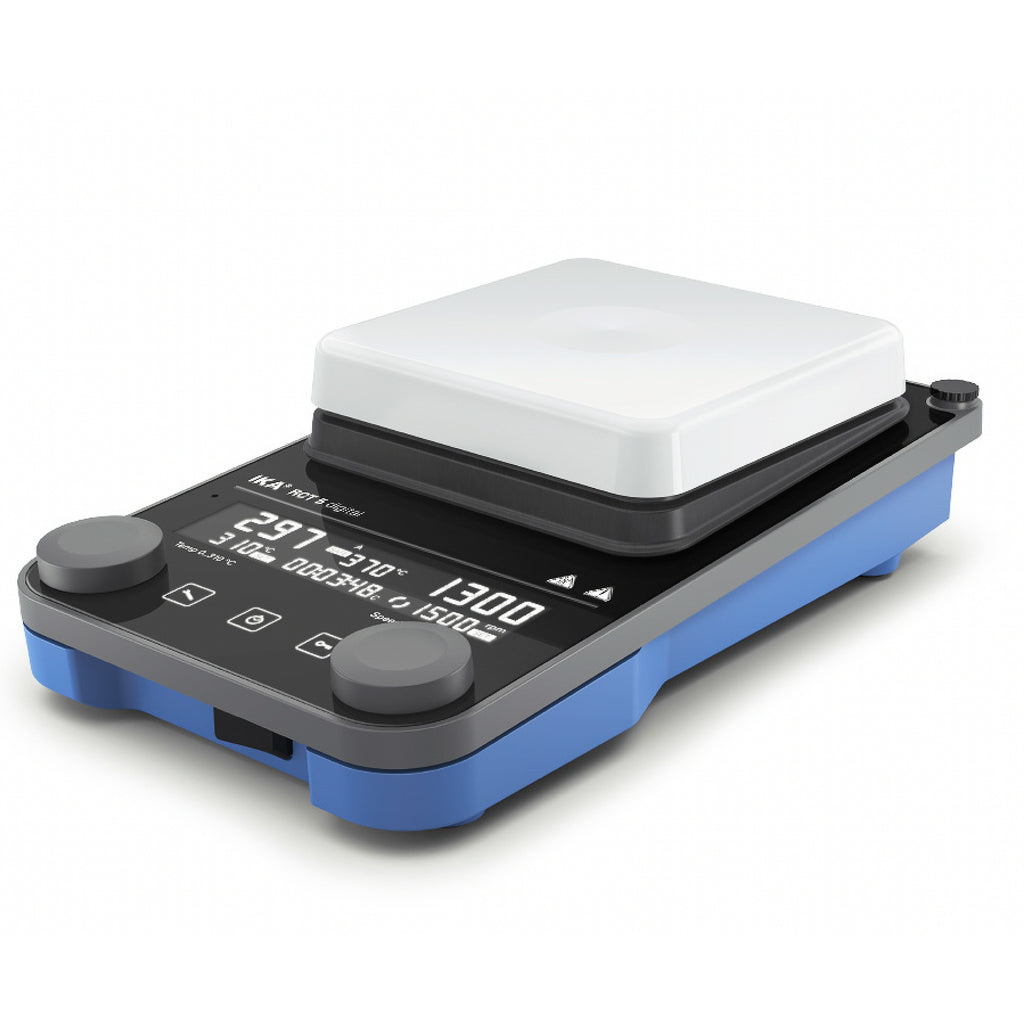

The IKA RCT 5 digital is a powerful magnetic stirrer with an 850 W heater, making it an ideal device for demanding stirring tasks up to 20 l. A multifunctional menu lets you set direction of rotation, timer functions and sequence programs, so the stirring process can be programmed from beginning to end and runs reliably even without monitoring.
Its rectangular set-up plate carries a white, scratch-resistant ceramic coating that is far less prone to scratching than conventional plates, while the chemical-resistant hardened-glass display improves user safety. A hot-surface symbol warns of burn risk and the safety circuit is adjustable up to 370 °C, with automatic switch-off if the external temperature sensor is not immersed in the medium.
Package Includes:
- RCT 5 digital
- PT 1000.60 Temperature sensor, stainless steel
- IKAFLON® 30 Magnetic stirring bar
- IKAFLON® 40 Magnetic stirring bar
- Screwdriver
- USB A-B Cable
Country of Origin: Germany
Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here
Specifications:
| Number of stirring positions | 1 |
| Stirring quantity max. per stirring position (H2O) | 20 l |
| Maximum load | 25 kg |
| Motor rating output | 9 W |
| Direction of rotation | right / left |
| Speed display set-value | LCD |
| Speed display actual-value | LCD |
| Speed adjustment | Turning knob |
| Speed range | 50 - 1500 rpm |
| Setting accuracy speed | 10 rpm |
| Stirring bar length | 20 - 80 mm |
| Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) | +17 K |
| Heat output | 850 W |
| Temperature display set-value | LCD |
| Temperature display actual-value | LCD |
| Temperature unit | °C / °F |
| Heating temperature range | Room temp. + device self heating - 310 °C |
| Heat control | Turning knob |
| Temperature setting range | 0 - 310 °C |
| Temperature setting resolution of heating plate | 1 K |
| Connection for ext. temperature sensor | PT1000, ETS-D5, ETS-D6 |
| Temperature setting resolution of medium | 1 K |
| Adjustable safety circuit | 50 - 370 °C |
| Set-up plate material | Aluminum with ceramic coating |
| Set-up plate dimensions | 137 x 137 mm |
| Automatic reverse rotation | yes |
| Intermittent mode | yes |
| Viscosity trend measurement | yes |
| Timer | yes |
| Timer display | LCD |
| Time setting min. | 1 s |
| Time setting max. | 143940 min |
| Sensor in medium detection | yes |
| Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C) | ±2 % |
| Heating rate (1l H2O in H1500) | 7.5 K/min |
| Heat control accuracy of heating plate (at 100°C) | ±5 K |
| Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) | ±0.5 K |
| Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) | ±0.5 K |
| Heat control accuracy with ETS-D6 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) | ±0.2 K |
| Dimensions (W x H x D) | 160 x 85 x 270 mm |
| Weight | 2.6 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 42 |
| RS 232 interface | yes |
| USB interface | USB-B |
| Voltage | 115 V |
| Frequency | 50/60 Hz |
| Power input | 900 W |
| Power input standby | 1.6 W |
| Other voltage variants available | 220 - 230 V / 115 V / 100 V |
