Description

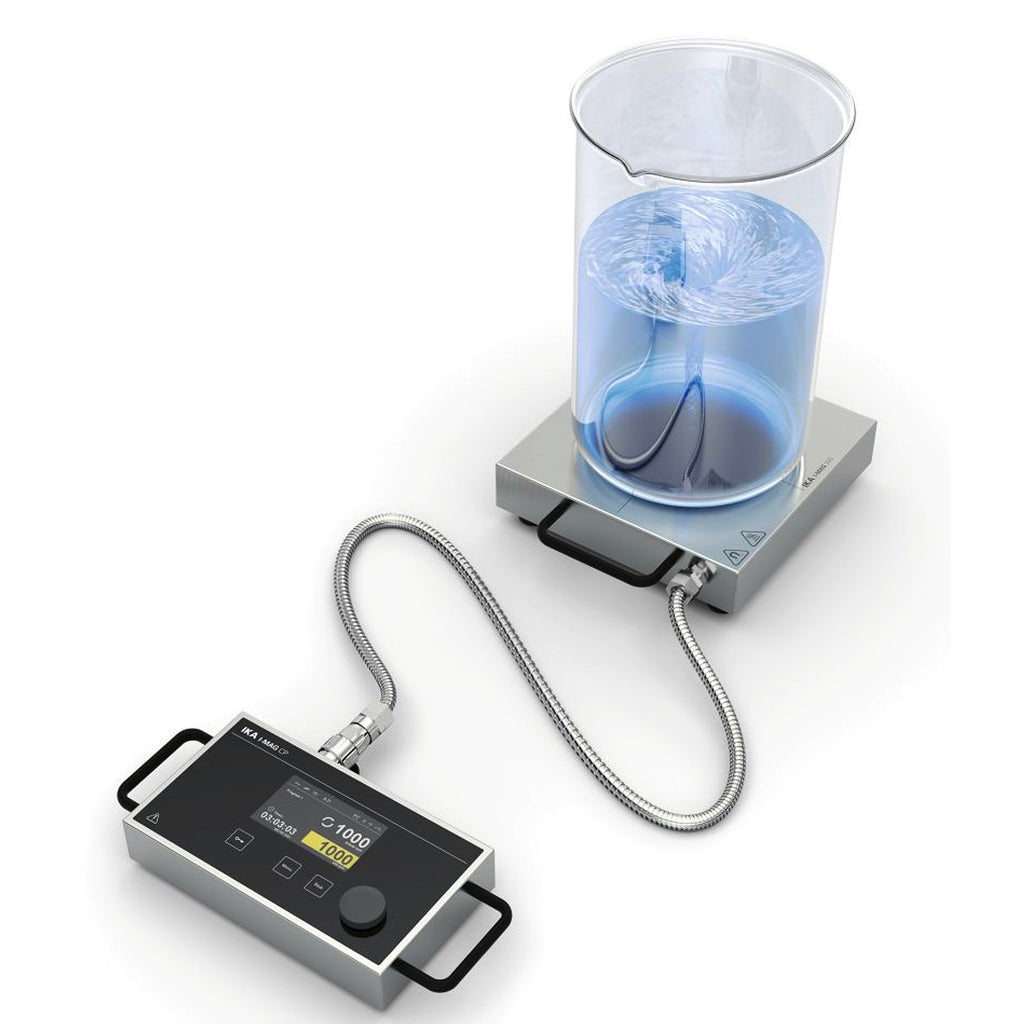

The IKA i-MAG Industry stirrer is a powerful yet compact magnetic stirrer built for both laboratory and production environments. Combined with the optional I-MAG SP set-up frames for large vessels, it can efficiently mix up to 300 liters of water, while its wired controller makes handling and integration into process-engineering systems straightforward.
Its robust drive unit (IP protection class 64) pairs a high-torque, wear-free motor with a magnetic coupling using high-performance neodymium magnets, enabling effective mixing of viscous media and mixing in vessels with a large gap between the surface and the stir bar. An adjustable start-up speed prevents the stir bar from breaking off during acceleration, and integrated detection of the magnetic coupling alerts the user through the operating unit if the coupling tears off or fails.
Package Includes:
- I-MAG Industry stirrer
- IKAFLON® 90 slide (1 pc.)
- USB A-B cable
- Adapter for analog interface (3 pcs.)
Country of Origin: Germany
Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here
Specifications:
| Number of stirring positions | 1 |
| Speed deviation | ±10 rpm |
| Stirring quantity max. per stirring position (H2O) | 300 l |
| Maximum load | 75 kg |
| Stirring quantity max. (without extension platform I-MAG SP) | 50 l |
| Motor rating output | 90 W |
| Direction of rotation | right / left |
| Speed display set-value | TFT |
| Speed display actual-value | TFT |
| Speed adjustment | Turning knob |
| Speed range | 100 - 1500 rpm |
| Setting accuracy speed | 10 rpm |
| Stirring bar length | 30 - 140 mm |
| Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) | +26 K |
| Operating temperature min. (with external cooling) | 5 °C |
| Operating temperature max. (with external heating) | 70 °C |
| Set-up plate material | stainless steel 1.4301 |
| Set-up plate dimensions | 260 x 260 mm |
| Automatic reverse rotation | yes |
| Intermittent mode | yes |
| Break detection stirring bar | yes |
| Timer | yes |
| Timer display | TFT |
| Time setting range | 1 - 14399 min |
| Programs | yes |
| Analog pedal control | yes |
| Cable from controller to device | 2000 mm |
| Dimensions (Controller) | 335 x 165 x 65 mm |
| Dimensions (W x H x D) | 260 x 70 x 300 mm |
| Weight | 8 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 64 (Drive unit) / IP 22 (Control unit) |
| RS 232 interface | yes |
| USB interface | USB-B |
| WiFi Interface | yes |
| Analog output | yes |
| Analog input | yes |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 140 W |
| Power input standby | 5 W |
