Description

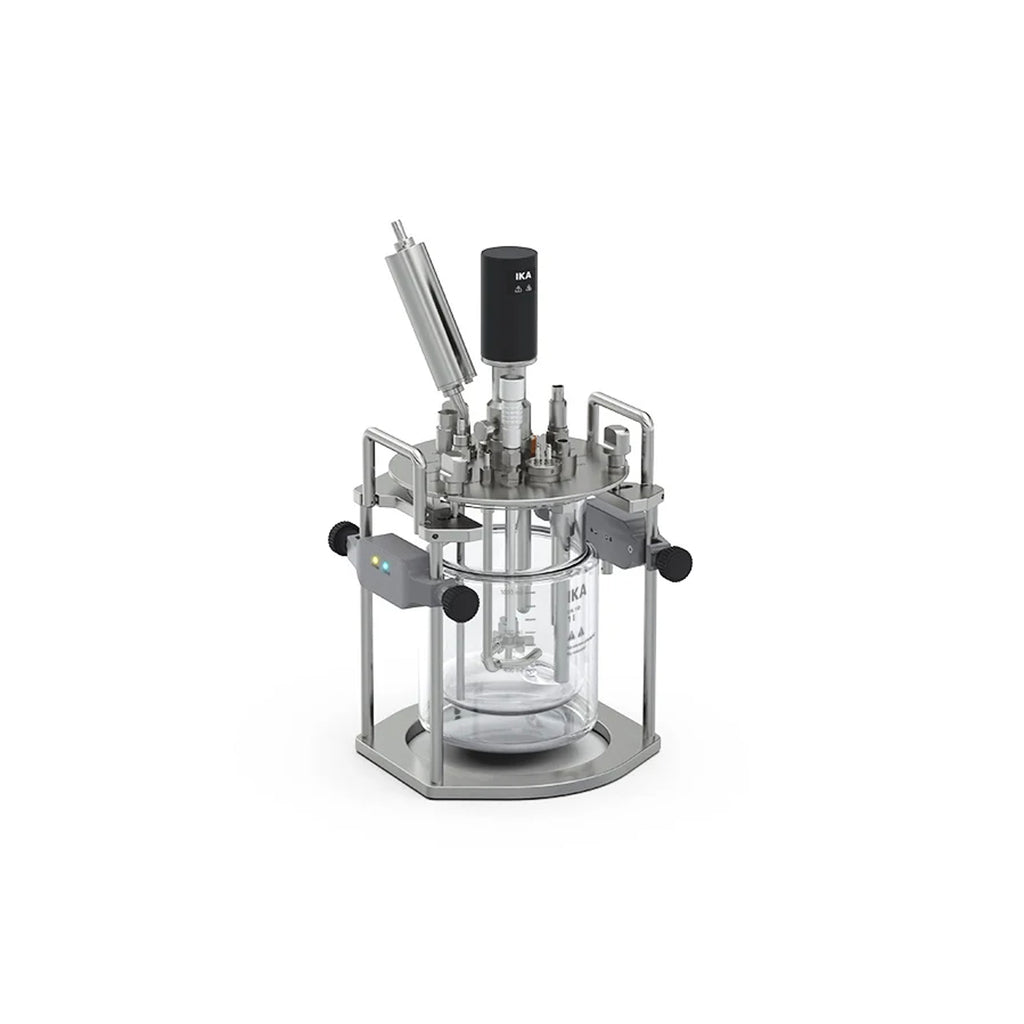

The IKA® HABITAT ferment dw 1 is the 1-liter, double-walled glass vessel package for the IKA HABITAT research bioreactor, configured for fermentation (microbial) applications. It pairs the jacketed vessel with the matching stirring drive and a full sensor set — temperature, pH, dissolved oxygen (DO), level, and foam — along with the connection accessories needed to run it. For microbial cultures it is fitted with a Rushton 6-blade impeller, a ring sparger, and a baffle for high gas transfer and mixing. The double jacket allows temperature control through an external circulator (such as the IKA HRC 2, available separately). Combined with a separately available HABITAT control tower package (for example HABITAT ferment), it provides the components for a complete fermentation workflow.
Package Includes:
- Stand 1
- HA.gv.dw.1 glass vessel, double-wall, for 1 l
- HA.mt.s.2 motor, small, for 0.5, 1 and 2 l
- HA.hp.s.1 harvest pipe, straight, for 1 l
- HA.ino port for inoculation
- HA.ba.1 baffle, for 1 l
- HA.sp.r.1 ring sparger, for 1 l
- HA.cn condenser
- HA.ip.b.1 Rushton 6-blade impeller, for 1 l
- HA.s.tm.1 temperature sensor, for 1 l
- HA.s.ph.1 Hamilton pH sensor, for 1 l
- HA.s.do.1 Hamilton DO analogue sensor, for 1 l
- HA.s.fo foam sensor
- HA.s.lv.1 fill level sensor, for 0.5 to 1 l
- HA.cab.dw cable & tube set, for double-wall vessels
- HA.sf.250 sample flask, 250 ml (4 pcs.)
Country of Origin: Germany
Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here
Specifications:
| Reactor | fermenter |
| Volume | 1 l |
| Type | double wall (jacketed) |
| Autoclavable | yes |
| Inner diameter | 110 mm |
| Ratio = height / inner diameter | 1.73 |
| Useable volume min. / max. | 0.3 l / 1.6 l |
| Reactor vessel material | borosilicate glass 3.3 |
| Reactor lid material | stainless steel 1.4404 |
| Net weight (vessel / assembled) | 1.14 kg / 8.09 kg |
| Number of lid ports | 12 |
| Material in contact with medium | AISI 316L, borosilicate glass 3.3, silicone USP class VI |
| Sparger | ring sparger, pore size 500 μm |
| Stirrer design | Rushton 6-blade impeller (Ø 40 mm) |
| Condenser | vertical condenser, min. 5 °C (15 °C with Peltier) |
| Sterile filter | PTFE reinforced with PP, 0.22 μm, with heater |
| Working temperature sensor | PT1000 |
| pH / pO2 sensors | yes (PG 13.5) |
| Level / foam sensors | IKA HA.s.lv / HA.s.fo |
| Speed range | 1 - 2000 rpm |
| Gas flow rate (Air / O2 / N2 / CO2) | 100 - 20000 cc/min each |
| Dimensions (W x H x D) | 210 x 415 x 210 mm |
