Description

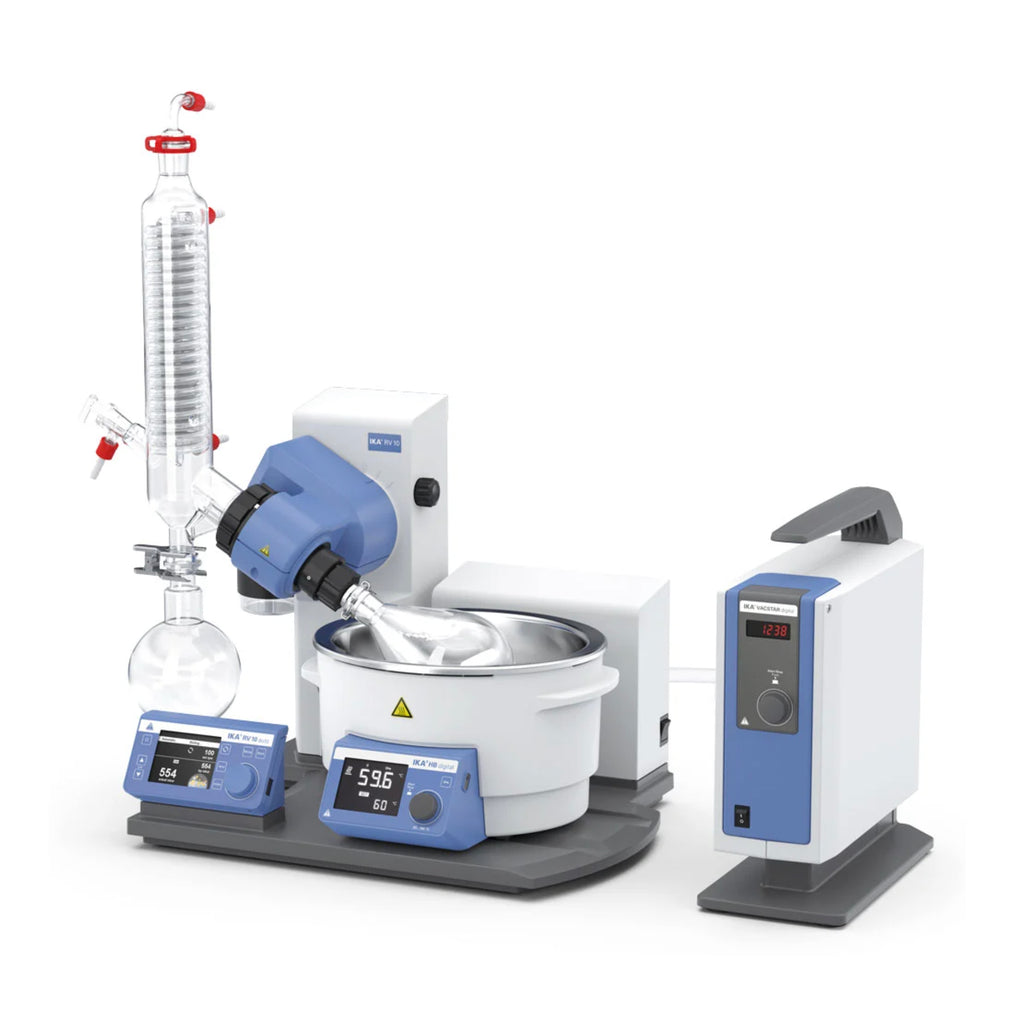

The IKA® RV 10 auto pro V is the flagship of IKA's rotary-evaporator line, built around an automated, intuitive workflow. A bright TFT color display, an integrated vacuum controller, automatic cooling-water management, and a 40-solvent library let you set up and run distillations with minimal manual steps, while extended ramp programming and smooth-start, interval, and timer functions handle customized procedures. The included VACSTAR digital vacuum pump is driven directly from the evaporator's control unit.
Safety is built in: a motorized lift with safety-stop raises the flask out of the heating bath on power failure, backed by adjustable temperature safety circuits, boil-dry protection, adjustable end-point recognition to help prevent glass breakage, and a locking function. The vertical-condenser glassware uses a 1500 cm² cooling surface for efficient recondensing, and USB / RS-232 interfaces allow remote control via IKA labworldsoft.
Key features:
- 4 L universal safety heating bath, room temp. to 180 °C, with ergonomic handles
- Integrated vacuum controller with automatic boiling-point detection and 40-solvent library
- Motorized lift with power-failure safety-stop; boil-dry protection and temperature safety circuit
- Vertical condenser, 1500 cm² cooling surface; coated or uncoated glassware options
- Programmable (up to 10 procedures), smooth start, left/right rotation, interval and timer modes
- USB and RS-232 interfaces for remote control (labworldsoft); VACSTAR digital vacuum pump included
Package Includes:
- RV 10 auto pro FLEX drive unit
- VACSTAR digital vacuum pump
- RV 10.900 vertical glassware
- RV 10.73 vapor tube (NS 24/40)
- RV 10.8001 seal
- Vacuum hose (2 x 0.55 m)
- Water discharge hose (2 x 1 m)
- USB cable
Country of Origin: Germany
Warranty: Comes with 2+3 Year Manufacturer's Warranty (2+1 on the included VACSTAR vacuum pump). See details here
Specifications:
| Type of cooling | vertical condenser |
| Cooling surface | 1500 cm² |
| Speed range | 5 - 300 rpm |
| Reversible direction of rotation | yes |
| Speed tolerance (< 100 rpm) | ±1 rpm |
| Speed tolerance (> 100 rpm) | ±1 % |
| Lift | motor |
| Stroke | 140 mm |
| Heating temperature range | room temp. - 180 °C |
| Heat output | 1350 W |
| Set temperature resolution | 1 K |
| Filling volume max. | 4 l |
| Vacuum controller integrated | yes |
| Measurement accuracy | ±1 mbar |
| Timer | yes |
| Vacuum pump | VACSTAR digital |
| Dimensions (W x H x D) | 500 x 430 x 440 mm |
| Weight | 52.34 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 20 |
| RS 232 interface | yes |
| USB interface | Micro-USB |
| Analog output | yes |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 100 W |
| Power input standby | 3.3 W |
