Description

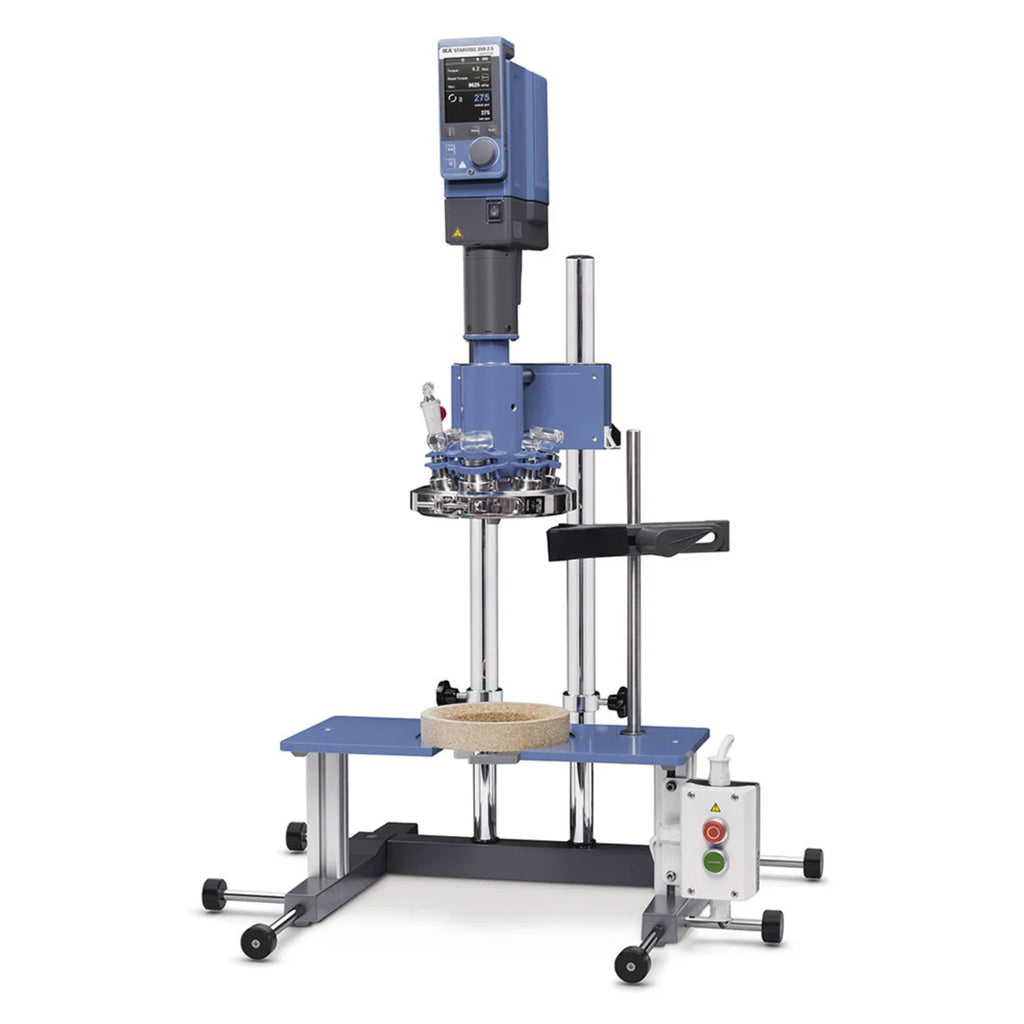

The 5 l vessel package for the bioreactor HABITAT research contains a 5 l double-walled glass vessel for fermentation applications as well as the appropriate stirring drive. Together with the separately available control tower package (e.g. HABITAT ferment) you receive all necessary components for a successful cultivation. For temperature control via the double jacket we recommend one of our our circulators such as the HRC 2 basic or control.
Package Includes:
- Stand 5
- HA.gv.dw.5 Glass vessel, double-wall
- HA.mt.s.10 Motor, big
- HA.hp.s.5 Harvest pipe, straight
- HA.ino Port for inoculation
- HA.ba.5 Baffle
- HA.sp.r.5 Ring sparger, 0.5 mm
- HA.cn Condenser
- HA.ip.b.5 6-blade segment impeller (2 pcs.)
- HA.s.tm.5 Temperature sensor
- HA.s.ph.5 pH sensor
- HA.s.do.5 DO sensor
- HA.s.fo Foam sensor
- HA.s.lv.5 Level sensor
- HA.cab.dw Cable and tube set
- HA.sf.250 Sample flask (4 pcs.)
Country of Origin: Germany
Warranty: Comes with 1 + 1 Year Warranty. See details‚ë‚‚á‚‚‚‚ºhere
| Reactor | Fermenter |
| Volume | 5 l |
| Type | double wall |
| Multi use | yes |
| Autoclavable | yes |
| Inner diameter | 160 mm |
| Ratio = height / inner diameter | 2.31 |
| Useable volume min. | 1.0 l |
| Useable volume max. | 6.7 l |
| Reactor vessel material | borosilicate glass |
| Reactor lid material | stainless steel 1.4404 |
| Net weight reactor vessel | 4.76 kg |
| Net weight reactor assembled | 16.66 kg |
| Number lid ports | 145 |
| Lid ports (Baffle) | 1 |
| Lid ports (pH) | 1 |
| Lid ports (Reserve) | 4 |
| Lid ports (Condenser) | 1 |
| Lid ports (Cooling Finger) | 1 |
| Lid ports (Inoculation) | 1 |
| Lid ports (Harvest Pipe) | 1 |
| Lid ports (Sparger) | 1 |
| Lid ports (Feed) | 0 |
| Lid ports (4in1) | 1 |
| Lid ports (Temperature) | 1 |
| Lid ports (DO) | 1 |
| Lid ports (Level) | 1 |
| Material in contact with medium | AISI 316L, borosilicate glass 3.3, silicone USP class VI |
| Motor coupling | shaft feedthrough |
| Harvest pipe outer diameter | 6 mm |
| Harvest pipe inner diameter | 4 |
| Harvest pipe design | straight |
| Harvest pipe, height adjustable | yes |
| Feeding port, outer diamter | 4.5 mm |
| Feeding port, inner diamter | 2 mm |
| Feeding port, amount | 4 |
| Inoculation port, outer diamter | 6 mm |
| Inoculation port, inner diameter | 4 mm |
| Sparger | Ring sparger |
| Sparger, outer diameter | 8 mm |
| Sparger, inner diameter | 6 mm |
| Sparger pore size | 500 _m |
| Cooling finger | yes |
| Cooling finger connection threat | M27x3 mm |
| Cooling finger water connection, outer diamter | 8 mm |
| Stirrer design | Propeller stirrer, 6-bladed |
| Stirrer diameter 6 blade impeller | 57 mm |
| Ratio = stirrerdiameter 6blade / inner diameter reactor | 0.36 |
| Stirrer quantity | 2 |
| Condenser | yes |
| Condenser, connection threat | M16x2 |
| Type of cooling | Vertical Condenser |
| Condenser Temperature min. | 5 ¬¨Ü‚‚¬™C |
| Temperature min. / Condenser with Peltier | 15 ¬¨Ü‚‚¬™C |
| Temperature min. / Condenser with water cooling | 5 ¬¨Ü‚‚¬™C |
| Filtertype | sterile filter |
| Filtermaterial | PTFE reinforced with PP |
| Filter housing material | PP |
| Pore size | 0.22 _m |
| Filter heater | yes |
| Spin filter | 40 _m |
| Baffle | Accessory |
| Temperature measuring | yes |
| Working temperature sensor | PT1000 |
| pH sensor | yes |
| pH sensor connection threat | PG 13.5 |
| pO2 sensor | yes |
| pO2 sensor connection threat | PG 13.5 |
| Level sensor | IKA - HA.s.lv |
| Foam sensor | IKA - HA.s.fo |
| Turbidity sensor | Accessory |
| Conductivity sensor | Accessory |
| CO2 sensor | Accessory |
| Speed max. | 1500 rpm |
| Dimensions (W x H x D) | 260 x 605 x 260 mm |
