Description

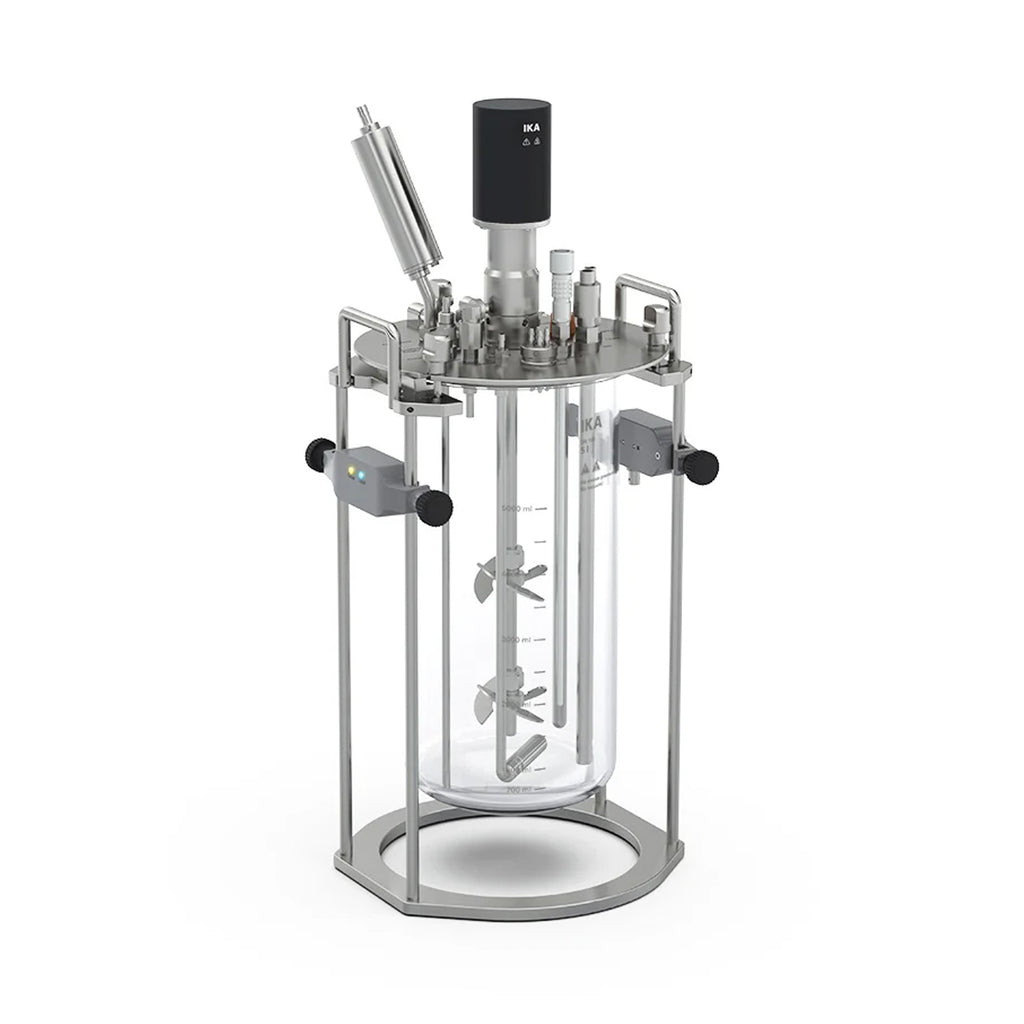

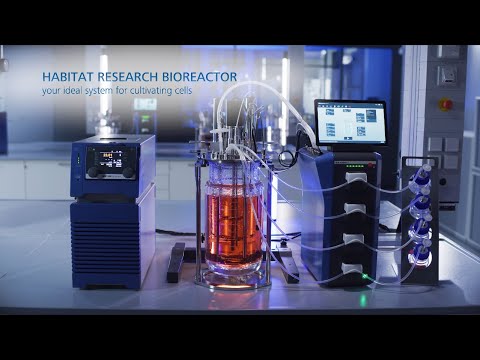

The IKA® HABITAT cell sw 5 is the 5-liter, single-walled glass vessel package for the IKA HABITAT research bioreactor, configured for cell-culture applications. It combines the single-wall vessel with the matching stirring drive and a full sensor set — temperature, pH, dissolved oxygen (DO), level, and foam — along with a heating blanket and the connection accessories needed to run it. Paired with a separately available HABITAT control tower package (such as HABITAT cell), it provides the components for a complete cultivation workflow.
Package Includes:
- Stand 5
- HA.gv.sw.5 glass vessel, single-wall, for 5 l
- HA.mt.s.10 motor, big, for 5 l and 10 l
- HA.hp.s.5 harvest pipe, straight, for 5 l
- HA.ino port for inoculation
- HA.sp.m.5 micro sparger, for 5 l
- HA.cn.flx flexible condenser
- HA.ip.pi.5 3-pitched-blade impeller, for 5 l (2 pcs.)
- HA.s.tm.5 temperature sensor, for 5 l
- HA.s.ph.5 Hamilton pH sensor, for 5 l
- HA.s.do.5 Hamilton DO analogue sensor, for 5 l
- HA.s.fo foam sensor
- HA.s.lv.5 fill level sensor, for 5 l
- HA.hbl.5 heating blanket, for 5 l
- HA.cab.sw cable & tube set, for single-wall vessels
- HA.sf.250 sample flask, 250 ml (4 pcs.)
Country of Origin: Germany
Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here
Specifications:
| Reactor | cell growth |
| Volume | 5 l |
| Type | single wall |
| Heating blanket | yes (48 V, 250 W) |
| Autoclavable | yes |
| Inner diameter | 160 mm |
| Ratio = height / inner diameter | 2.31 |
| Useable volume min. / max. | 1.0 l / 6.7 l |
| Reactor vessel material | borosilicate glass 3.3 |
| Reactor lid material | stainless steel 1.4404 |
| Net weight (vessel / assembled) | 2.36 kg / 13.29 kg |
| Number of lid ports | 15 |
| Material in contact with medium | AISI 316L, borosilicate glass 3.3, silicone USP class VI |
| Sparger | micro sparger, pore size 5 μm |
| Stirrer design | 3-pitched-blade impeller (Ø 59 mm), 2 pcs. |
| Condenser | vertical condenser, min. 5 °C (15 °C with Peltier) |
| Sterile filter | PTFE reinforced with PP, 0.22 μm, with heater |
| Working temperature sensor | PT1000 |
| pH / pO2 sensors | yes (PG 13.5) |
| Level / foam sensors | IKA HA.s.lv / HA.s.fo |
| Speed range | 1 - 1500 rpm |
| Heat output | 250 W |
| Gas flow rate (Air / O2 / N2 / CO2) | 10 - 2000 cc/min each |
| Dimensions (W x H x D) | 260 x 605 x 260 mm |
