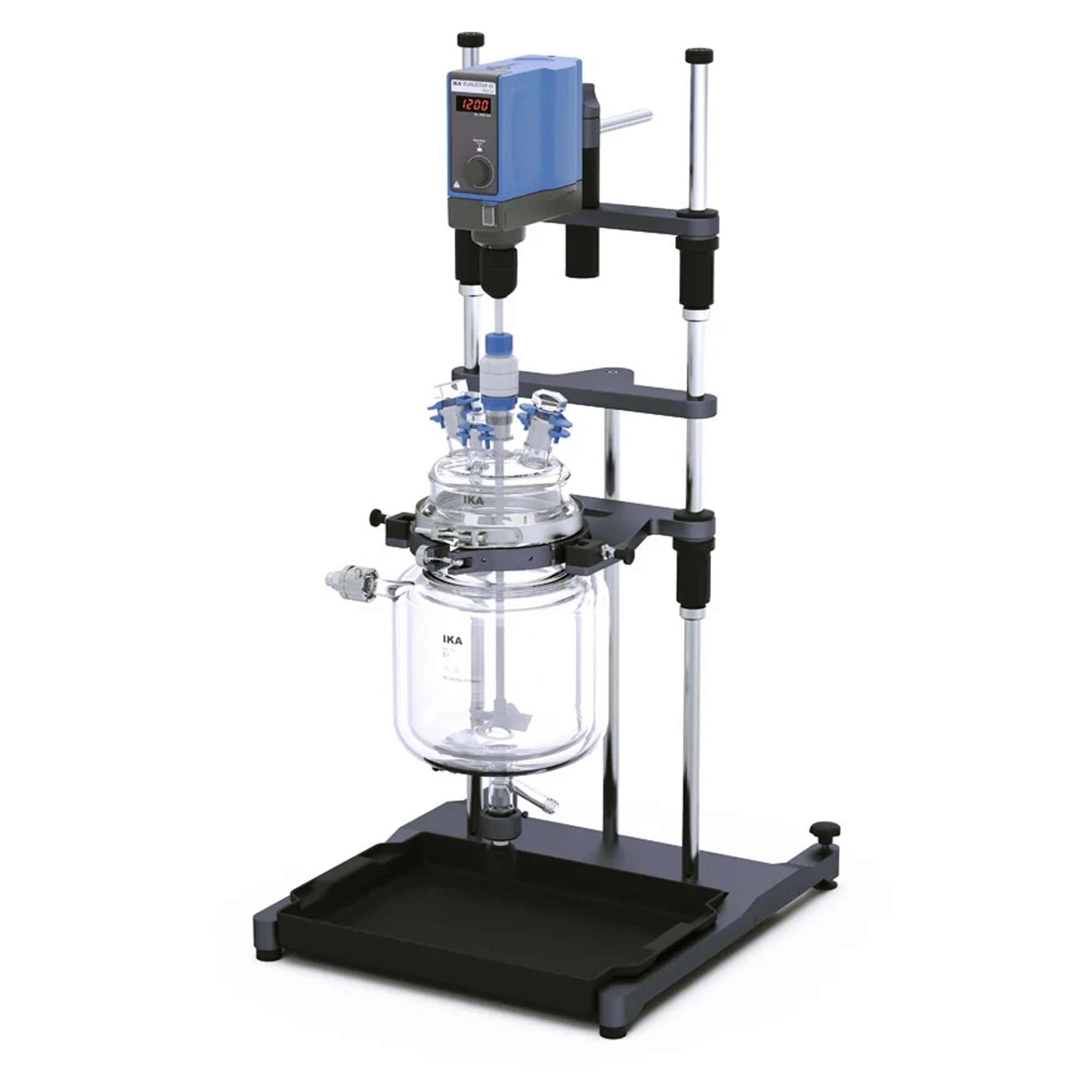

IKA® EasySyn 5000 Starter Reactor System, Vol 5.0l, 20113442

IKA WorksSKU: 0020113442

WORLDWIDE SHIPPING AVAILABLE.
PLEASE
CONTACT US

Price:
Sale price$10,802.00 USD

Shipping calculated at checkout

Condition: Brand new with manufacturer's warranty

Availability: Drop ships from manufacturer. Subject to stock availability.

Estimate shipping

Description

The IKA® EasySyn 5000 Starter is a complete benchtop laboratory reactor system for organic and aqueous syntheses, enabling safe, reproducible chemical reactions from lab to pilot scale. The package centers on a double-walled (jacketed) 5-liter borosilicate 3.3 glass reactor vessel with a bottom-discharge valve, paired with an ergonomic stand for quick vessel changes and working-height adjustment, and a EUROSTAR 60 digital overhead stirrer with a PTFE-coated propeller. High-quality materials allow operation from -50 to 200 °C and down to 3 mbar vacuum, and the stirrer guide supports vacuum operation. Note: temperature hoses for connecting a thermostat are not included.

Key features:

  • Jacketed 5 L borosilicate 3.3 reactor vessel with bottom-discharge valve (spring-loaded spindle to prevent glass breakage)
  • Working temperature -50 to 200 °C; vacuum operation down to 3 mbar
  • EUROSTAR 60 digital overhead stirrer (60 Ncm) with keyless chuck
  • Ergonomic stand for fast vessel exchange and working-height adjustment
  • Reactor lid with multiple ports (1× NS 29/32 center, 2× NS 29/32, 1× NS 14/23)
  • DN 150 clamp and FEP-coated O-ring for chemical resistance

Package Includes:

  • SY stand
  • SY 5000 D reactor vessel (double-wall, 5 l)
  • SY clamp 150
  • SY clamp ring 150
  • SY O-ring 150
  • SY 150.1 reactor lid
  • R 4013 SY propeller stirrer
  • EUROSTAR 60 digital overhead stirrer
  • SY guide
  • R 60 keyless chuck

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Volume 5 l
Flange dimension DN150
Working temperature -50 - 200 °C
Vacuum application yes (to 3 mbar)
Useable volume min. 1000 ml (1500 ml with temperature probe)
Torque max. at stirring shaft 60 Ncm
Dimensions (W x H x D) 500 x 950 x 580 mm

PDFProduct Data Sheet | PDFProduct Manual
