Description

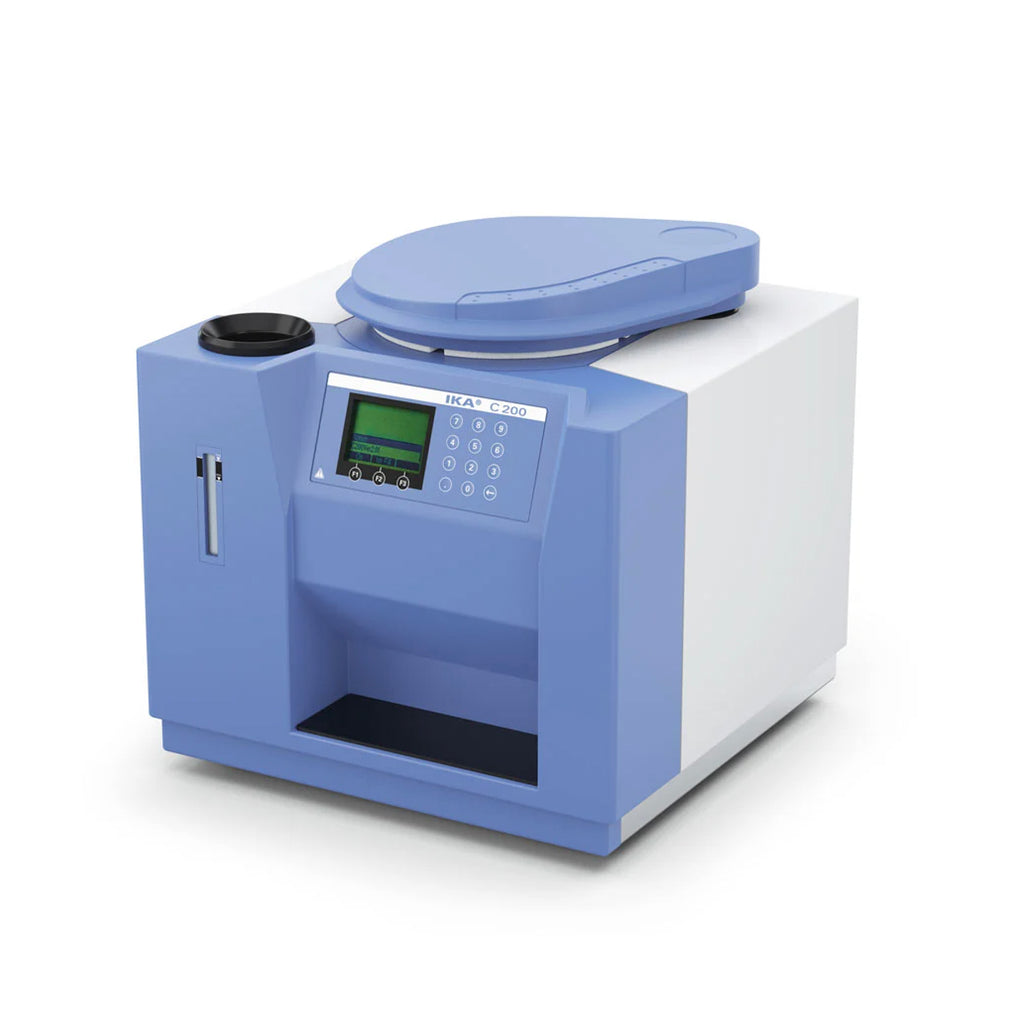

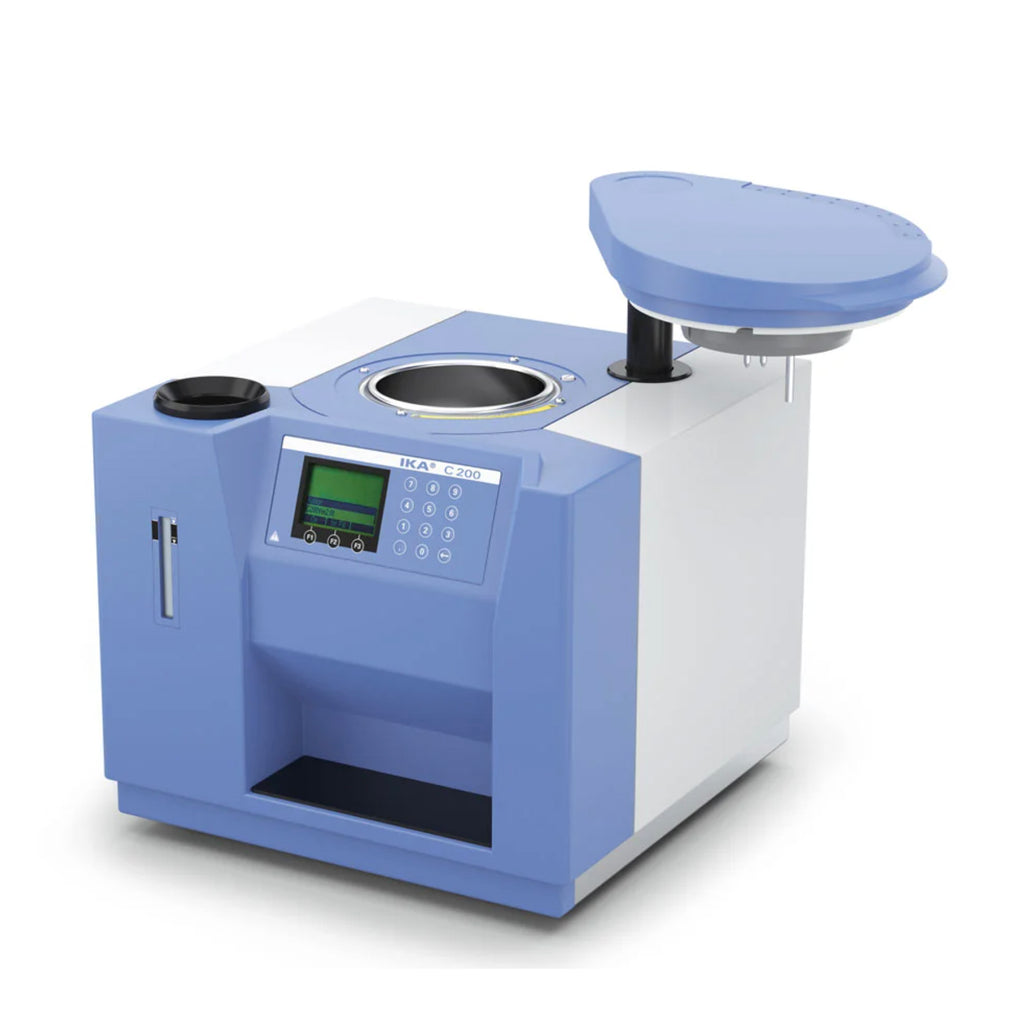

The IKA® C 200 is a compact, cost-effective combustion (oxygen-bomb) calorimeter for determining the gross calorific value of solid and liquid samples. Its small footprint and straightforward manual water- and oxygen-filling make it well suited to teaching and training (schools and universities) as well as industrial labs with lower sample throughput. Four working methods — isoperibolic, dynamic, manual, and time-controlled — let you match the instrument to different tasks, and a clear display keeps operation simple.
The gross calorific value is shown on the display; in the three automatic modes, ignition and calculation run automatically (acid and net-calorific-value corrections are done manually). The decomposition vessel can be adapted to use combustible C 14 crucibles (with the C 5010.4 attachment). The optional C 6040 Calwin software controls the calorimeter and manages measurement data on a PC.
Key features:
- Four methods: isoperibolic (~17 min), dynamic (~8 min), manual (~17 min), time-controlled (~14 min)
- Manual water and oxygen filling; 24 V DC low-voltage operation via a 100–240 V world-voltage power pack
- Compliant with DIN 51900, ISO 1928, and ASTM D240 / D4809 / D5468 / D5865 (among others)
- RS 232 interface; optional C 6040 Calwin software (up to eight measuring cells per PC)
Package Includes:
- C 200 measuring cell
- C 5010 decomposition vessel
- C 248 oxygen filling station
- Ignition adapter
- C 200.1 measuring cup, 2000 ml
- Water emptying hose
Country of Origin: Germany
Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here
Specifications:
| Measuring range max. | 40000 J |
| Measuring modes | isoperibol, dynamic, manual, time-controlled (25 °C) |
| Measuring time (dynamic / isoperibol) | approx. 8 min / 17 min |
| Reproducibility (1 g benzoic acid NBS39i) | 0.1 %RSD |
| Working temperature max. | 25 °C |
| Temperature measurement resolution | 0.0001 K |
| Decomposition vessel | C 5010 |
| Analysis standards | DIN 51900, ISO 1928, ASTM D240, ASTM D4809, ASTM D5468, ASTM D5865 (and related EN/GOST methods) |
| Interfaces | RS 232 (PC), Centronics (printer) |
| Dimensions (W x H x D) | 400 x 400 x 400 mm |
| Weight | 28.912 kg |
| Permissible ambient temperature | 20 - 25 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 20 |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 120 W |
