EDAN Acclarix® AX2 Digital Ultrasound Imaging System w/Choice of Transducer, 15" HD Color Touch Screen

Save 33%
Edan USASKU: AX2

WORLDWIDE SHIPPING AVAILABLE. PLEASE CONTACT US

Transducer Options: Without Transducer
Price:
Sale price$8,750.00 USD Regular price$13,125.00 USD

Condition: Brand new with manufacturer's warranty

Availability: Drop ships from manufacturer. Subject to stock availability.

Estimate shipping

Payment & Security

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

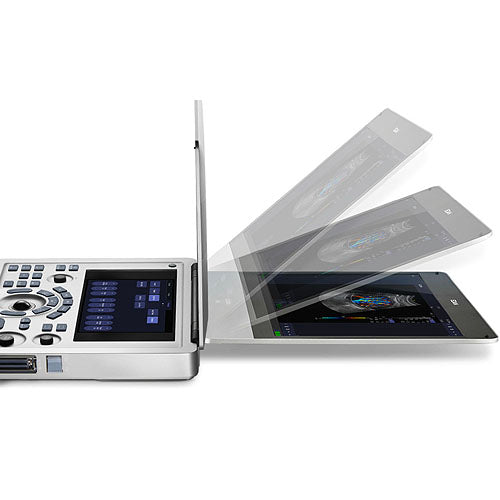

The EDAN Acclarix® AX2 & AX3 have been designed from the relentless focus on delivering uncompromising performance at a cost-effective price. Alone with the unique dual-sockets and dual-batteries inspiration in a 4.5kg lightweight magnesium alloy body, the remarkable ax2 & ax3 deliver a surprising value to meet all the demands for clinical care.

*Single Transducer Port

Highlights:

  • Compact and ultra light design, 10lbs with built in carrying handle
  • 15'' HD monitor with 10'' touch screen for customizable workflow
  • Built-in battery for 2 hour continuous use
  • 120G SSD, high capacity storage with USB transfer
  • PW auto trace — One key in automatic measurement
  • eTouch — Efficient ‘Swipe’ gesture control
  • DICOM enabled

Features:

  • 15" HD Color Touch Display
  • Ergonomic control panel
  • Customizable user interface
  • 10lbs magnesium alloy body
  • Built-in battery
  • Dedicated preset measurement packages
  • Streamlined data management
  • Superb detail resolution
  • Tissue adaptive imaging (TAI)
  • PW auto trace

Package Includes:

  • 1 x Choice of Transducer (Based on the option selected)
  • Rechargeable Lithium-Ion Battery (14.8V, 5000mAh), P/N 01.21.064143
  • AC-DC adapter, P/N 21.21.064243
  • Power Cord (USA Standard), P/N 01.13.037122
  • Flash Disk (Netac,4G, USB2.0 Protocol), P/N 01.18.052245
  • Ultrasound Gel(250g)
  • Acclarix AX2/AX3 Series Advanced User Manual
  • Acclarix AX2/AX3 Series Basic User Manual

        Country of Manufacture: China

        Warranty: Comes with 2 Years Manufacturer's Warranty

        EDAN Acclarix® AX2/3 Brochure, EDAN Acclarix® AX2/3 Spec. Sheet

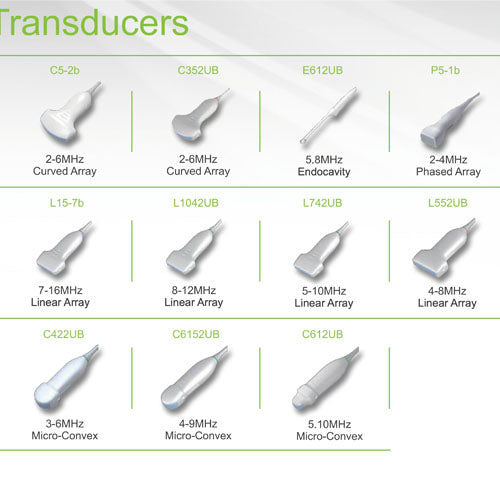

        EDAN Acclarix® AX2/3 Ultrasound Transducer Options:

        Part No Description

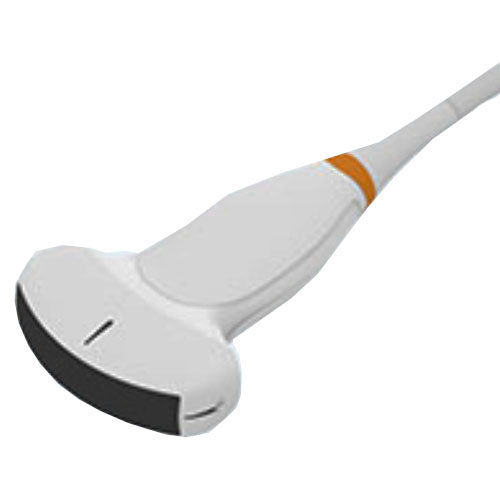

        C5-1Q AX2/AX3 Single Crystal Convex Probe C5-1Q
        Applications used for:  Abdomen, Fetal / Obstetrics, Urology, Gynecology, Musculoskeletal

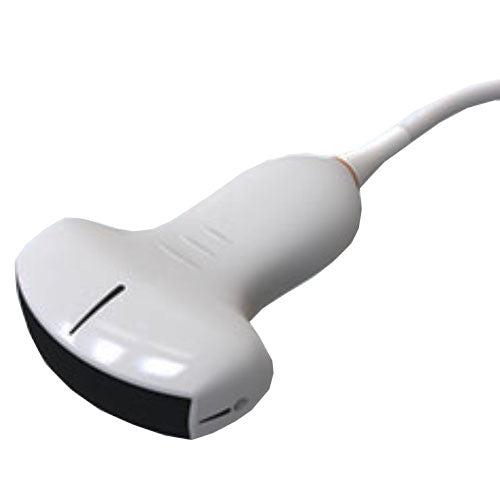

        C5-2Q C5-2Q Acclarix AX Series Convex Array Transducer: 60mm, 128 Elements , 1.5 - 6.5 MHz (-20dB), 2-5 MHz (-6dB), 40-300mm depth, Abdomen, OB, Gynecology, Nerve.

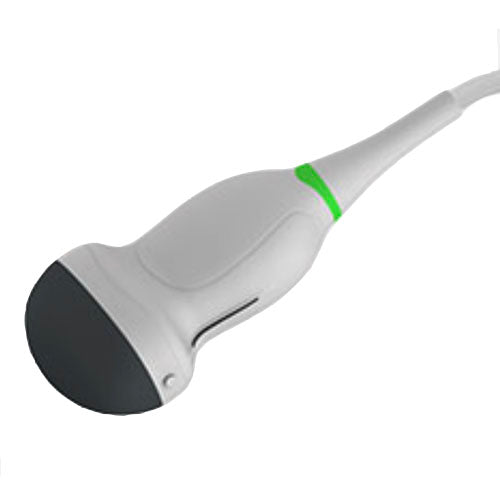

        C6-2MQ C6-2MQ Acclarix AX2 and AX3 Mechanical Convex Array Transducer: 40mm, 128 Elements, 1.5-7 MHz (-20dB), 2-5 MHz (-6dB), Fetal Echo,OB,OB-1

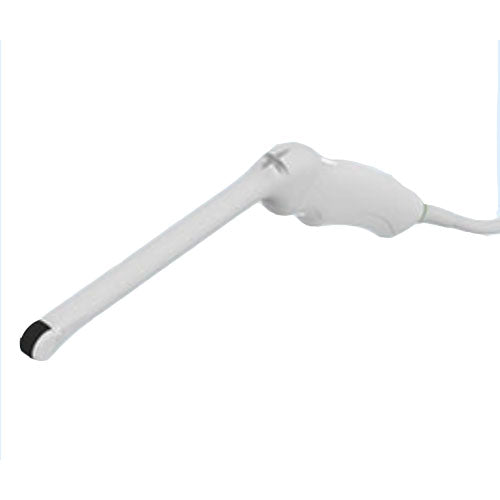

        E10-3BQ AX2/AX3 Endocavity array transducer: E10-3BQ

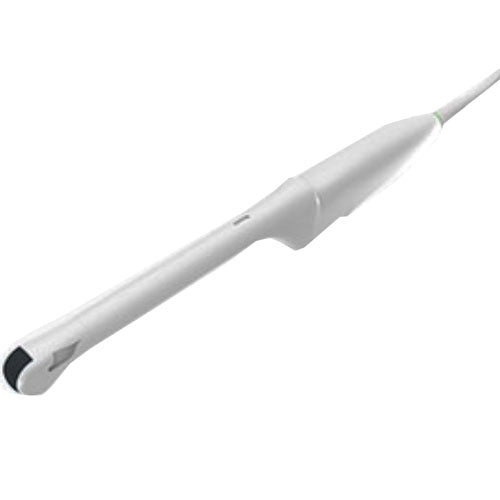

        E8-4Q Acclarix Endocavity array transducer: 10mm, 128 elements, 3.5-12MHz, 4-8MHz, 15-110mm depth, Fetal / OBGYN, Trans-Vaginal, Trans-Rectal, Urology

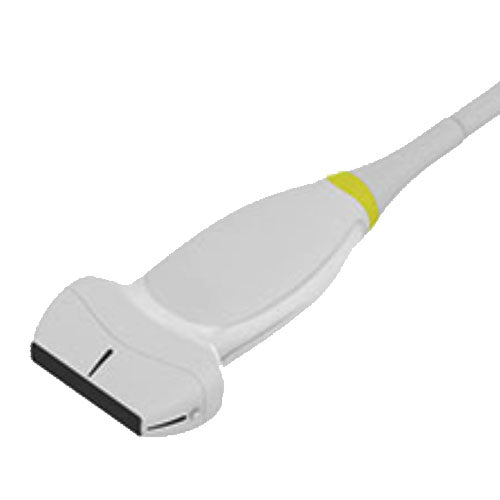

        L12-5Q Acclarix Linear array transducer: 38mm, 128 elements, 3.5-12.5 MHz (-20dB) 5-12MHz (-6dB), 10-110mm depth, Small Parts, Peripheral Vascular, Muscoskeletal

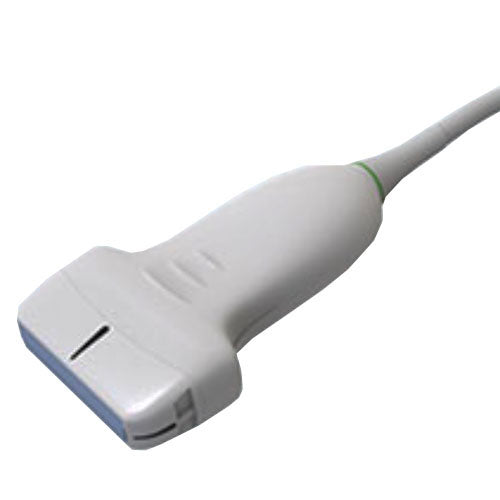

        L17-7HQ L17-7HQ Acclarix AX2, AX3  Linear Array Transducer: 38mm, 128 Elements, 5-19 MHz (-20dB), 7-17MHz (-6dB), Small parts,MSK, Nerve,Superficial, Vascular.

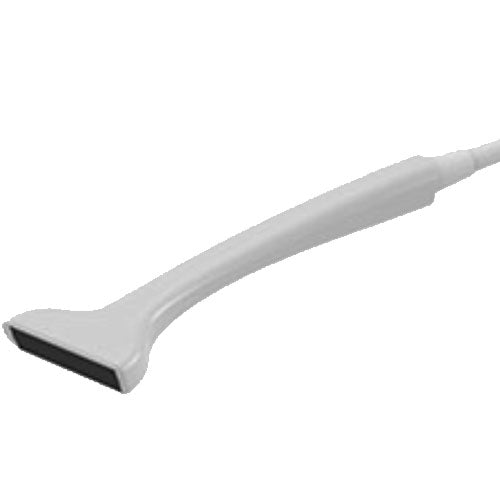

        L17-7SQ  L17-7SQ  Acclarix AX2 and AX3 Linear Array Transducer: 26mm, 192 Elements,  4.5-18.5 MHz (-20dB), 7-17MHz (-6dB), 10-110mm depth, MSK, Nerve, Vascular, SMP, Intra-operation, Superficial.

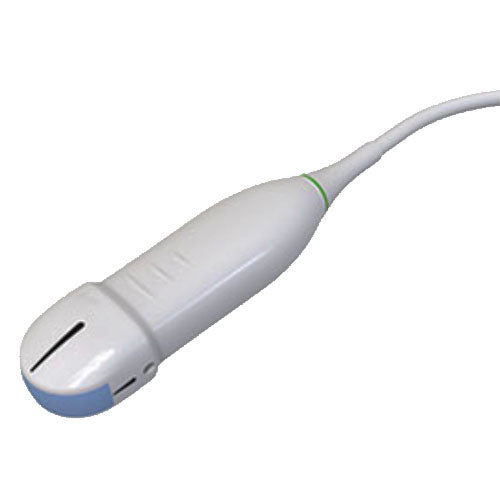

        MC8-4Q MC8-4Q Acclarix AX2 and AX3 Micro Convex Transducer: 15 mm, 128 Elements, 3 - 10MHz (-20dB), 4-8MHz(-6dB), Neonate*, Pediatric*, Nerve, Vascular.

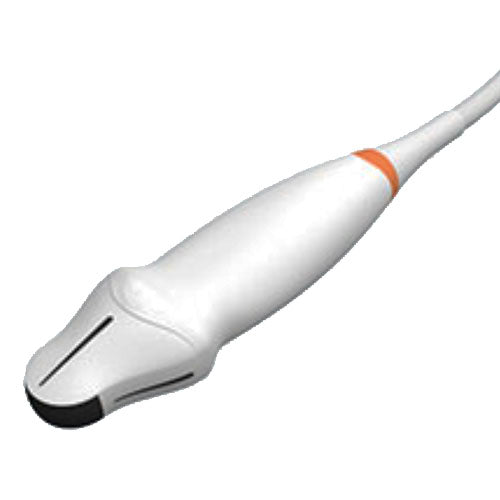

        MC9-3TQ MC9-3TQ Acclarix AX2 and AX3 Micro Convex Transducer: 10 mm, 128 Elements, 2 - 11MHz (-20dB), 3-9MHz(-6dB), Neonate*, Pediatric*, Nerve, Vascular.

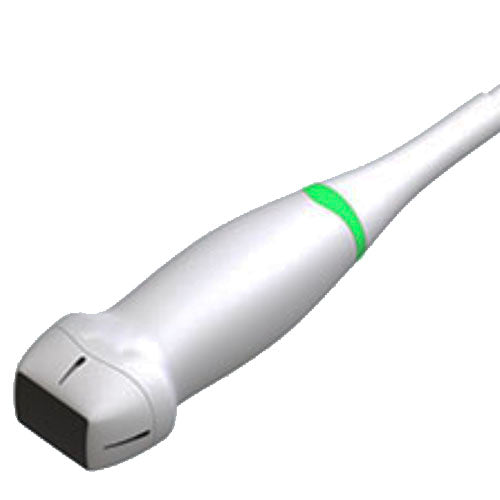

        P5-1Q EdanUSA Acclarix AX2/AX3 Phased array transducer:16mm, 64 elements, 1-4.5 MHz (-20dB), 1-5 MHx (-6dB), depth 40-300mm, Adult Cardiac, Abdomen, Pediatric Cardiac, Adult Cephalic

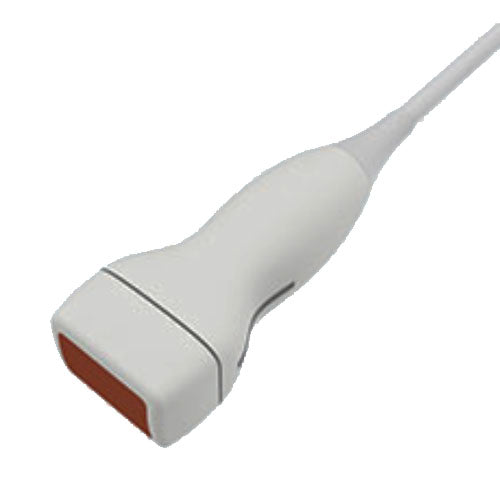

        P7-3Q EdanUSA Acclarix AX2/AX3 Phased array transducer:16mm, 64 elements, 1-4.5 MHz (-20dB), 1-5 MHx (-6dB), depth 40-300mm, Adult Cardiac, Abdomen, Pediatric Cardiac, Adult Cephalic
