Description

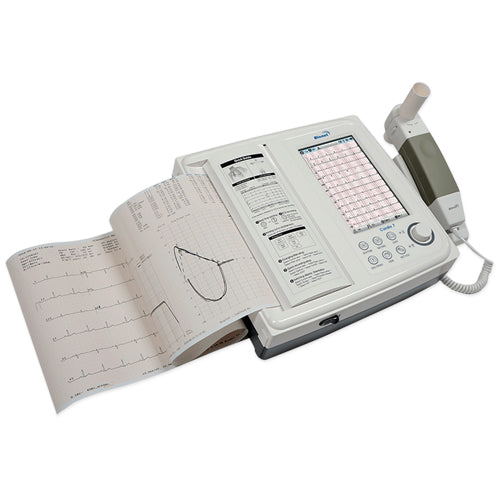

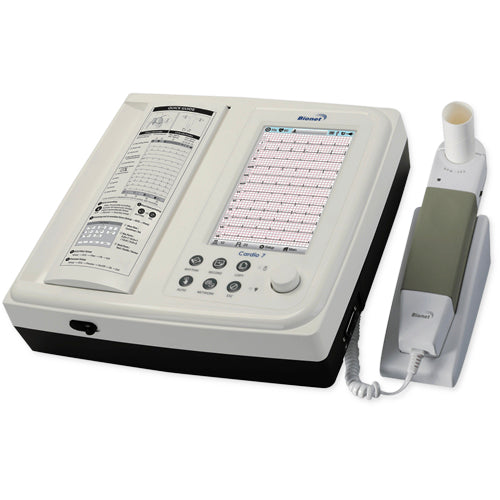

The Cardio7-S is a reliable interpretive touch screen electrocardiogram (ECG / EKG) machine combined with spirometry. It features a large 7” TFT LCD touch screen with Wi-Fi. It supports USB flash drive, a QWERTY keyboard, JPEG/PDF file format, one channel long-term recording, and storage of up to 200 ECGs and PFT tests. It stores and shows the recent 5-minute full channel ECG in order to print out the missed abnormal ECG waveforms. It prints in multiple formats, including 12/6/3 channel ECG reports, and FVC/SVC/MVV pulmonary test reports. It can be connected to PACS server through optional DICOM 3.0 and send the ECG and spirometer test reports to the server.
Features:
- Simultaneous, interpretive 12 channel resting ECG
- 7” color TFT LCD touch screen, real time preview
- Over 130 kinds of interpretation results based on Minnesota code
- 3/5/10 min long-term recording & automatic arrhythmia detection
- Internal storage up to 200 cases and USB storage
- BMS Plus software. Transfer of digital ECG to Windows based PC
- DICOM Compatible
What is DICOM:
DICOM stands for Digital Imaging and Communications in Medicine. It is a standard protocol used for the communication, management, and transfer of medical imaging data between different healthcare providers and medical devices. DICOM is commonly used for images such as X-rays, MRI scans, and ultrasound images.
The DICOM standard defines a set of rules for medical imaging devices to ensure that the data produced by one device can be interpreted and displayed correctly by another device or software application. DICOM provides a standard way for medical professionals to share medical imaging data and collaborate on patient care, regardless of the specific device or software they are using.
DICOM is widely used in healthcare settings around the world and has become an essential tool for the exchange of medical imaging data. It has enabled faster and more efficient diagnoses and treatments for patients, as medical professionals can easily access and share medical imaging data regardless of their location or the specific medical devices they are using.
Package Includes:
- Cardio7 Main Unit
- 10 Lead ECG Patient Cable
- Alligator Clips
- Electrodes
- Medi-Graph Paper
- Hospital Grade Power Cord
- Operation Manual
- Diagnostics Guide Book
- Quick Reference Guide
- 3-Year Warranty Card.
- Wi-Fi USB Dongle
- USB Flash Drive with BMS-Plus Software Included
- Spirometer
- Disposable mouthpiece - 100 ea
- Nose clip - 1 ea
- Adapter - 1 ea
- Handle dock - 1 ea
- Operation manual - 1 ea
- Diagnosis guide - 1 ea
Country of Manufacture: South Korea
Warranty: Comes with 3 Years Manufacturer's Warranty
ECG Specifications:
| ECG Leads | Simultaneous 10 Leads Resting ECG (12 channel) |
| Dimension | 290 (W) x 300 (D) x 97.5 (H) mm |
| Approximately 3.5 kg (Main Body) | |
| Recording Channel | 3CH+1RHY, 3CH+3RHY, 6CH+1RHY, 12CH, 1CH Long Time (1min) and Beat Report |
| Sensitivity | 2.5, 5, 10, 20, Auto (I~aVF: 10, V1~V6: 5) mm/mV |
| Printing Speed | 5, 12.5, 25, 50, 100mm/sec |
| Sampling Rate | Analysis Sampling Rate: 500 sample/sec Digital Sampling Rate: 8,000 sample/sec |
| Filters | AC (50/60Hz, -20dB or better), Muscle (25~35Hz, -3dB or better), Base Line Drift (off, 0.05, 0.1, 0.2Hz, -3dB or better), Low Pass Filter (off, 40Hz, 100Hz, 150Hz) |
| Display | 272 x 480 Pixel Resolution, 4.3” Color TFT Display 12 Channels Preview, ID, HR, Gain, Speed, Power Status |
| Export file format | ECG, XML, PDF, JPEG, MFER |
| User Interface | Touch Screen, Rotary Push-knob |
| Recorder | Thermal Print Head, Roll Paper Report Paper - Width: A4/Letter – 215mm (8.5”) - Length: A4 – 297mm (11.7”) Letter – 279mm (11”) Resolution: 8dot/mm (0.125mm pitch) |
| Patient data | ID, Name, Age, Gender, Height, Weight |
| Basic Measurement | Heart Rate: 30~300bpm (±3bpm) PR, QRS, QT/QTc, P-R-T axis |
| ECG Data Storage | Internal Storage for 200 ECGs: Built- in Memory External memory available |
| Electrical | Internal Noise: 20uV(p-p)max |
| Input Impedance: More than 50MΩ | |
| Input Voltage range: ±5mV | |
| CMRR: Greater than 105dB | |
| DC offset Voltage: ≥ ±400mV | |
| Patient Leakage Current: < 10uA | |
| Frequency Response: 0.05~150 with in –3dB | |
| Isolated, Defibrillation and ESU Protected | |
| Signal Quality Control | Pacemaker Pulse Detection Lead Fault Detection, Signal Saturation Detection |
| Power | Input: 100-240Vac, 1.5-0.75A, 50-60Hz, Output: 15Vdc, 4.2A |
| Battery type | Replaceable and Rechargeable, Lithium ion, 11.1V, 2600mA |
| Battery Capacity | 6 hours of normal use (without recording,200 ECGs) with 12 channel Battery charge time is 3 hours. |
| Communication | LAN, USB, WIFI (option) |
| Safety Conformity | Class I, Type CF Defibrillation-proof applied Part |
| Environment | Operating Temperature: 5~40°C Operating Humidity: 10~90%RH Atmospheric Pressure: 70~106KPa |
| Standard Accessory | Power Cord - 1 ea Patient Cable - 1 ea ECG clips - 1 set Disposable Electrodes - 1 pouch Chart paper - 1 ea Operation manual - 1 ea Rechargeable battery - 1 ea |
| Options | Cart, Hanger, USB WiFi dongle |
Spirometer Specifications:
| Dimension | 47 (W) x 200 (H) x 34 (D)mm, approx. 250g |
| Measuring Values | FVC: FVC, FEV 1.0, FEV 1/FVC, FEF 0.2 - 1.2L, FEF 25 - 75%, FEF 75 - 85%, PEF, FEF 25%, FEF 50%, FEF 75%, FIVC, FEV6, PEFT, FET 100% SVC: SVC, ERV, IRV, TV, EC MVV: MVV, FB, TV |
| Presentation | Flow volume loop Flow time plot Measurment values table |
| Measuring Range | Flow: 0 to ±14 L/s Volume: 0 to ± 12L |
| Measuring Method | Differential pressure method |
| Prediction Equation | Morris-Polgar, ECCS-Quanjer, Knudson-ITS, Pereira, Korea CJK |
| Sample Rate | 200 samples/sec |
| Flow Impedance | |
| Measuring Accuracy | Complies with ATS (American Thoracic Society) |
| Environment | Ambient temperature: 15 to 40°C (59 to 104°F) Relative humidity: 10 to 90% (non-condensing) Atmospheric pressure: 700 to 1060 hPa |
| Standard Accessories | Disposable mouthpiece - 100 ea Nose clip - 1 ea Adapter - 1 ea Handle dock - 1 ea Operation manual - 1 ea Diagnosis guide - 1 ea |
Bionet Cardio 7® Product Brochure, Bionet Cardio 7® Product Manual
