Description

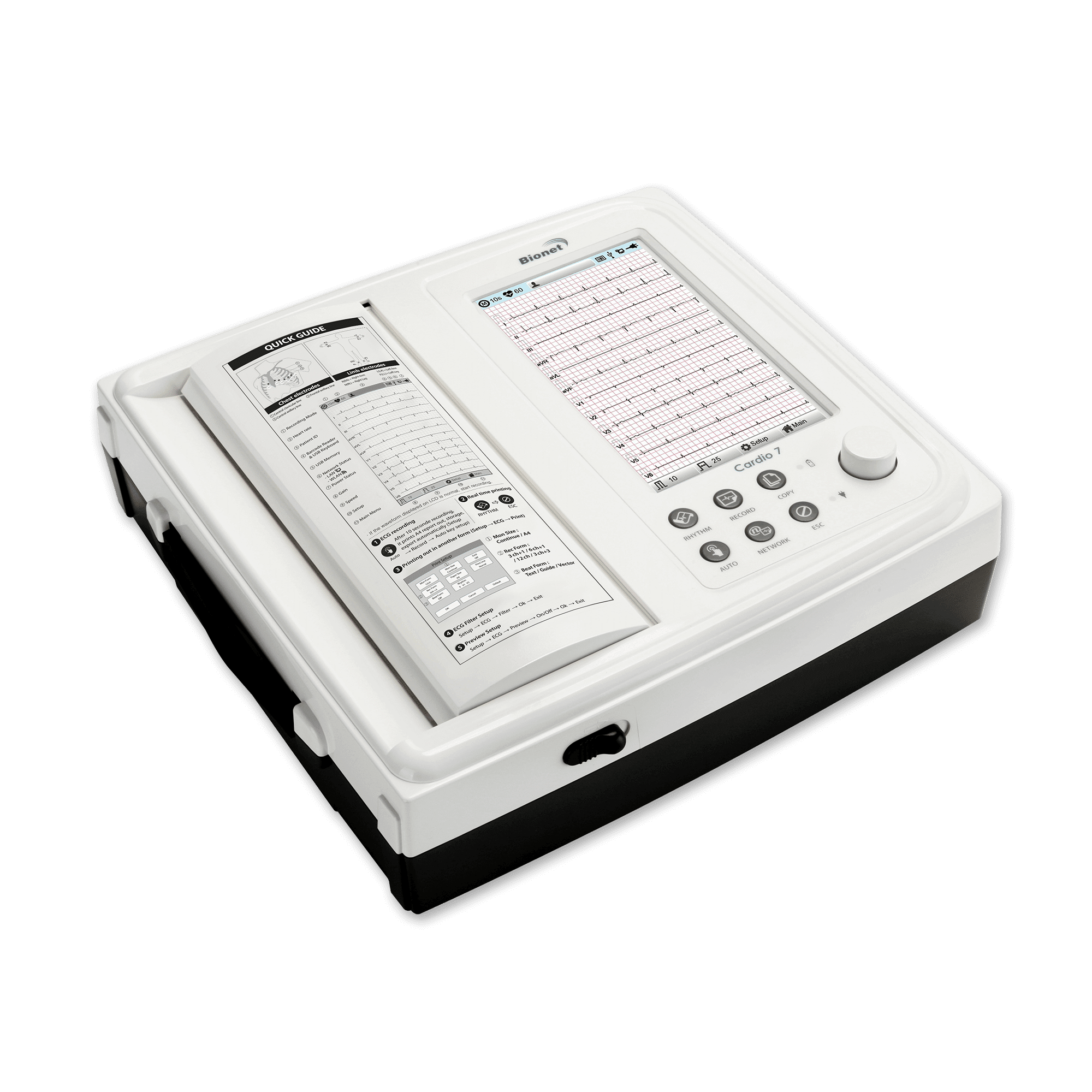

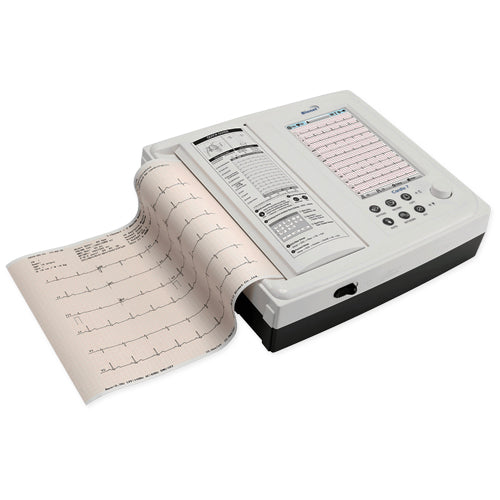

The Cardio7 is a reliable, interpretive touch screen electrocardiogram (ECG/EKG) machine. It features a large 7” TFT LCD touch screen with Wi-Fi. Supports USB flash drive, a QWERTY keyboard, JPEG/PDF file format, one channel long-term recording, and storage of up to 200 ECGs. It stores and shows the recent 5-minute full channel ECG in order to print out the missed abnormal ECG waveforms. It prints in multiple formats, including 12, 6 and 3 channel reports. It can be connected to PACS server through optional DICOM 3.0 and send the ECGs to the server.
Features:
- Simultaneous, interpretive 12 channel resting ECG
- 7” color TFT LCD touch screen, real time preview
- Over 130 kinds of interpretation results based on Minnesota code
- 3/5/10 min long-term recording & automatic arrhythmia detection
- Internal storage up to 200 cases and USB storage
- BMS Plus software. Transfer of digital ECG to Windows based PC
Package Includes:
- Cardio7 Main Unit
- 10 Lead ECG Patient Cable
- Alligator Clips
- Electrodes
- Medi-Graph Paper
- Hospital Grade Power Cord
- Operation Manual
- Diagnostics Guide Book
- Quick Reference Guide
- 3-Year Warranty Card.
- Wi-Fi USB Dongle
- USB Flash Drive with BMS-Plus Software Included
Country of Manufacture: South Korea
Warranty: Comes with 3 Years Manufacturer's Warranty
Specifications:
| ECG Leads | Simultaneous 10 Leads Resting ECG (12 channel) |
| Dimension | 290 (W) x 300 (D) x 97.5 (H) mm |
| Approximately 3.5 kg (Main Body) | |
| Recording Channel | 3CH+1RHY, 3CH+3RHY, 6CH+1RHY, 12CH, 1CH Long Time (1min) and Beat Report |
| Sensitivity | 2.5, 5, 10, 20, Auto (I~aVF: 10, V1~V6: 5) mm/mV |
| Printing Speed | 5, 12.5, 25, 50, 100mm/sec |
| Sampling Rate | Analysis Sampling Rate: 500 sample/sec Digital Sampling Rate: 8,000 sample/sec |
| Filters | AC (50/60Hz, -20dB or better), Muscle (25~35Hz, -3dB or better), Base Line Drift (off, 0.05, 0.1, 0.2Hz, -3dB or better), Low Pass Filter (off, 40Hz, 100Hz, 150Hz) |
| Display | 272 x 480 Pixel Resolution, 4.3” Color TFT Display 12 Channels Preview, ID, HR, Gain, Speed, Power Status |
| Export file format | ECG, XML, PDF, JPEG, MFER |
| User Interface | Touch Screen, Rotary Push-knob |
| Recorder | Thermal Print Head, Roll Paper Report Paper - Width: A4/Letter – 215mm (8.5”) - Length: A4 – 297mm (11.7”) Letter – 279mm (11”) Resolution: 8dot/mm (0.125mm pitch) |
| Patient data | ID, Name, Age, Gender, Height, Weight |
| Basic Measurement | Heart Rate: 30~300bpm (±3bpm) PR, QRS, QT/QTc, P-R-T axis |
| ECG Data Storage | Internal Storage for 200 ECGs: Built- in Memory External memory available |
| Electrical | Internal Noise: 20uV(p-p)max |
| Input Impedance: More than 50MΩ | |
| Input Voltage range: ±5mV | |
| CMRR: Greater than 105dB | |
| DC offset Voltage: ≥ ±400mV | |
| Patient Leakage Current: < 10uA | |
| Frequency Response: 0.05~150 with in –3dB | |
| Isolated, Defibrillation and ESU Protected | |
| Signal Quality Control | Pacemaker Pulse Detection Lead Fault Detection, Signal Saturation Detection |
| Power | Input: 100-240Vac, 1.5-0.75A, 50-60Hz, Output: 15Vdc, 4.2A |
| Battery type | Replaceable and Rechargeable, Lithium ion, 11.1V, 2600mA |
| Battery Capacity | 6 hours of normal use (without recording,200 ECGs) with 12 channel Battery charge time is 3 hours. |
| Communication | LAN, USB, WIFI (option) |
| Safety Conformity | Class I, Type CF Defibrillation-proof applied Part |
| Environment | Operating Temperature: 5~40°C Operating Humidity: 10~90%RH Atmospheric Pressure: 70~106KPa |
| Standard Accessory | Power Cord - 1 ea Patient Cable - 1 ea ECG clips - 1 set Disposable Electrodes - 1 pouch Chart paper - 1 ea Operation manual - 1 ea Rechargeable battery - 1 ea |
| Options | Cart, Hanger, USB WiFi dongle |
Bionet Cardio 7® Product Brochure, Bionet Cardio 7® Product Manual
