Description

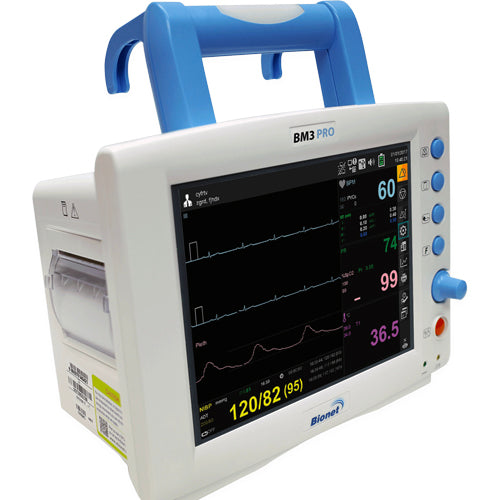

The Bionet BM-3 Pro is a high-quality patient vital signs monitor designed for use in hospitals, clinics, and other healthcare settings. This device tracks a range of vital signs, including blood pressure, pulse rate, SpO2, temperature, and respiration rate, providing accurate and reliable data to healthcare providers. The BM-3 Pro is user-friendly and easy to operate, with a large color display and customizable alarm settings. It is also lightweight and portable, making it easy to move from room to room as needed. With its advanced features and reliable performance, the Bionet BM-3 Pro is an essential tool for monitoring patients and ensuring optimal care.
Features:
- ECG, SpO2, NIBP, Respiration and Temperature
- 8.0″ color TFT touch screen with 4 wave forms
- Mainstream/Sidestream EtCO2 (optional)
- Multiple display modes
- External HDMI output for large screen
- Li-ion rechargeable battery allows cordless use up to 2 hours
Package Includes:
- BM3 Pro Main Unit,
- 3 Lead ECG Cable (snap type) with Extension Cable,
- Electrodes, SpO2 Adult Finger Sensor and Extension Cable,
- NIBP Adult Cuff (arm circumference 25-35 cm) and Extension Tube,
- Chart Paper (x2),
- Power Adaptor & Hospital Grade Power Cord,
- Operation Manual,
- 3-Year Warranty Card.
Country of Manufacture: South Korea
Warranty: Comes with 3 Years Manufacturer's Warranty
Specifications:
| General | Display, Resolution | 8' wide color touch TFT LCD, 800 x 600 pixels |
| Dimension, Weight | 238 (W) x 250 (H) x 163 (D) mm, approx. 3.1 kg | |
| Trace | 4 waveforms: 2*ECG, SpO2, respiration Swap speed: 6.25, 12.5, 25, 50 mm/sec. |
|
| Indicators | Categorized alarms (3 priority levels) Visual alarm QRS beep & SpO2 pulse beep Percent (%) SpO2 pitch tone Battery Status, external power LED Rotary Knob |
|
| Interfaces | Power supply: AC 100 - 240 V (50/60 Hz) DC input connector: 18 VDC, 2.8 A LAN digital output for transferring data Nurse call system connection: - 0.3 A at 125 VAC - 1 A at 24 VDC External HDMI output for large screen USB barcode reader USB memory data storage/Software upgrade |
|
| Battery | Rechargeable Li-ion battery Approx 2 hours of continuous operation |
|

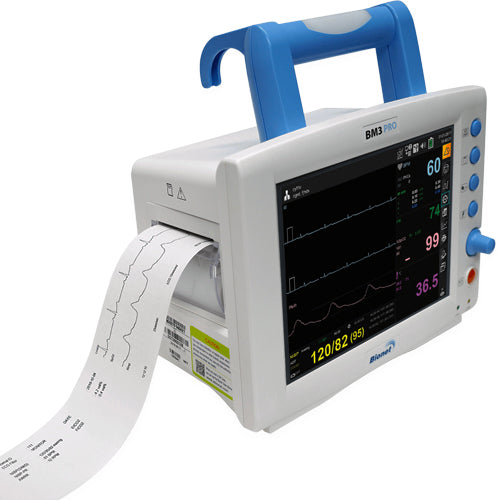

| Thermal Printer (Option) | Speed: 25, 50 mm/sec. Paper Width: 58 mm |
|
| Data Storage | 168 hours of trend data, 20 cases of 10 sec. alarm waveform | |
| Language | English, French, Spanish, Italian, German, Chinese, Russian, Czech, Polish, Turkish, Romanian, Portuguese, Bulgarian, Hungarian, Korean, Japanese, Greek | |
| Standard Accessories | 3-lead ECG cable with extension - 1 ea Electrodes - 10 ea NIBP extension hose (3 m) - 1 ea NIBP adult cuff (23-33/27.5-36.5 cm) - 1 ea SpO2 extension cable (2 m) - 1 ea Reusable adult SpO2 probe - 1 ea DC adapter (18VDC, 2.8A) with power code - 1 ea Paper roll - 2 ea |
|
| Optional Accessories | 5-lead ECG cable Temperature probe (skin) NIBP cuff (reusable/disposable) |
|
| Optional Module | Mainstream EtCO2 airway adapter kit (sensor) Sidestream EtCO2 airway adapter kit (sensor) |
|
| ECG | Lead Type | 3-lead, 5-lead (Option) |
| Lead Selection | 3-lead: I, II, III 5-lead (Option): I, II, III, aVR, aVL, aVF, V |
|
| ECG Waveforms | 3-lead: 1 channel 5-lead (Option): 1 channel |
|
| Heart Rate Range | Adult: 30 to 300 bpm Neonate/Pediatric: 30 to 350 bpm |
|
| Heart Rate Accuracy | +/-1 bpm or +/- 1%, whichever is greater | |
| Sweep Speed | 6.25, 12.5, 25, 50 mm/sec. | |
| Filter | - Diagnoses: 0.05 tp 150 Hz - Monitoring: 0.5 to 40 Hz - Moderate: 0.5 to 25 Hz - Maximum: 5 to 25 Hz |
|
| Pacemaker Detection Mode | Indicator on waveform display (user selectable) | |
| Protection | Against electrosurgical interference and defibrillation | |
| Respiration | Method | Thoracic impedance |
| Channel Selection | RA-LA or RA-LL | |
| Measurement Range | 5 to 120 breaths per minute | |
| Accuracy | +/- 1 breath per minute | |
| SpO2 | Saturation Range | 0 to 100 % |
| Saturation Accuracy | 70 to 100 % +/- 2 digits, 0 to 69 % unspecified | |
| Pulse Rate Range | 30 to 254 bpm | |
| Pulse Rate Accuracy | +/- 2 bpm | |
| NIBP (Suntech) | Method | Oscillometery |
| Operation Mode | Manual / Automatic / Continuous | |
| Pressure Range | 0 to 300 mmHg (accuracy +/- 3 mmHg) | |
| Safety Pressure | Adult pressure: 20 to 260 mmHg Pulse rate: 30 to 220 BPM Pediatric pressure: 20 to 160 mmHg Pulse rate: 30 to 220 BPM Neonate pressure: 20 to 130 mmHg Pulse rate: 30 to 220 BPM |
|
| Accuracy | Meets accuracy requirements of ANSI / AAMI SP10: 1992 AND 2002 | |
| Temperature (only probe option) | Measurement Range | 0 to 50°C (32 to 12250°F) |
| Accuracy | 25°C to 50°C: +/- 0.1°C 0°C to 24°C: +/- 0.2°C |
|
| Compatibility | YSI series 400 temperature probes | |
| Sidestream EtCO2 - Respironics (option) | Measurement Range | 0 to 150 mmHg, 0 to 19% |
| Accuracy | 0 to 40 mmHg +/- 2 mmHg, 41 to 70 mmHg +/- 5 % of reading, 71 to 100 mmHg +/- 8 % of reading, 101 to 150 mmHg +/- 10 % of reading | |
| Respiration Rate | 2 to 150 breaths per minute | |
| Respiration Accuracy | +/- 1 breath per minute | |
| Mainstream EtCO2 - Respironics (option) | Measurement Range | 0 to 150 mmHg, 0 to 19% |
| Accuracy | 0 to 40 mmHg +/- 2 mmHg, 41 to 70 mmHg +/- 5 % of reading, 71 to 100 mmHg +/- 8 % of reading, 101 to 150 mmHg +/- 10 % of reading | |
| Respiration Rate | 0 to 150 breaths per minute | |
| Respiration Accuracy | +/- 1 breath per minute |
Bionet BM3 PRO Vital Signs Monitor Brochure, Bionet BM3 PRO Product Manual
