Description
The Pulse 150™ Ultrasonic Homogenizer uses ultrasonic energy and cavitation to disrupt cells, shear DNA, and prepare samples for ChIP assays. Delivering up to 150 W of power, it processes volumes from 0.1 to 150 ml with the appropriate horn.

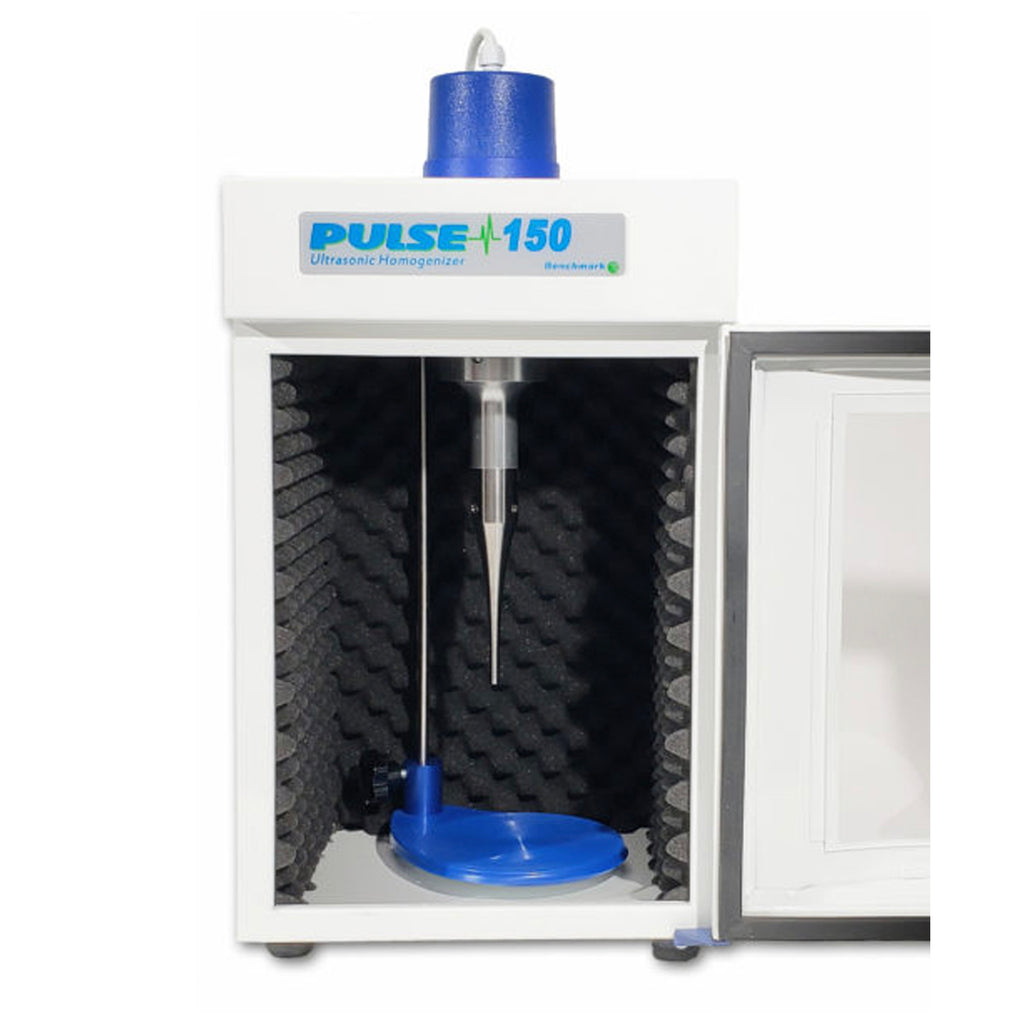

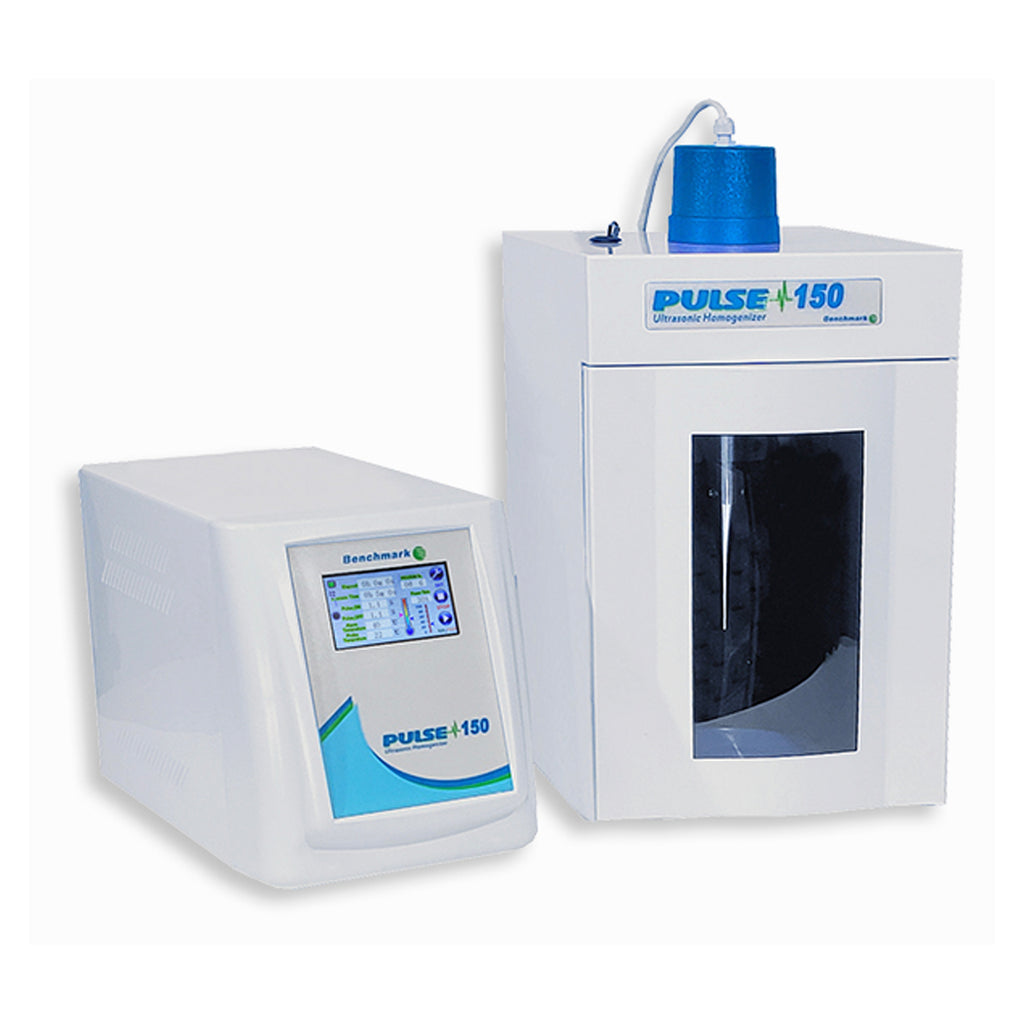

The system includes a controller, transducer, temperature probe, 6 mm titanium alloy horn, tool wrenches, and a soundproof enclosure with sample platform to reduce noise. The standard 6 mm horn supports 10–100 ml volumes, with optional horns available for other ranges.
A 4.3-inch color touchscreen allows easy setup of power and pulsed operation. Up to 20 programs can be saved, and built-in alarms notify users of temperature limits, load issues, or cycle completion
Features:
- Ideal for cell disruption, DNA shearing and ChIP assays
- Programmable with touch screen control and pulsed operation
- 150W, for volumes 0.1 to 150 ml (requires appropriate horn)
- Supplied complete with 6mm horn, temperature probe and soundproof enclosure
Specifications:
| Power | 1.5 - 150 W continuously adjustable | |
| Frequency | 20 - 25 KHz | |
| Cycle time (pulse on/off) | 0.1 - 99.9 sec | |
| Timer | 1 sec - 99 hours:59m min:59 sec | |
| Duty cycle | 0.1 - 99.9% | |
| Volume* | 0.1 - 150 ml | |
| Program memory | 20 programs | |
| Display/control | 4.3 inch full color touch screen | |
| Horn | 6mm titanium (2mm/3mm/8mm also available) | |
| Alarms | No load/over load/end of run/over temperature | |
| Controller W x D x H | 12 x 18.5 x 16.9 in./30.5 x 47 x 43 cm | |
| Controller weight | 35.3 lbs/16 kg | |
| Soundproof enclosure W x D x H | 13.8 x 13.8 x 21.7 in./35 x 35 x 55 cm | |
| Soundproof enclosure weight | 22 lb/10 kg | |
| Electrical | 120V or 230V 50-60 Hz | |
| Warranty | 2 years | |
| *Volume dependent upon the installed horn. Supplied with 6mm horn for volumes 10 - 100 ml. |
Country of Origin: China
Warranty: Comes with 2 years manufacturer's warranty
