Description
The Z4 Zoom Stereoscope with the Embryo-GLO Base is tailored for embryo transfer specialists. With magnification ranging from 7x to 45x, it provides high-resolution 3-D viewing of embryos, while 10x eyepieces with a reticle aid in size assessment. Upgrading to 15x eyepieces offers increased magnification, though 45x is often preferred.
Unlike traditional stereoscope bases, the Embryo-GLO Base features a rear-mounted LED bulb, eliminating glare and providing clear embryo visibility. Its adjustable tilting mirror enables indirect lighting at various angles, enhancing observation of internal embryo structures. The dual-sided mirror offers both focused and diffused illumination, while the variable intensity LED system ensures optimal brightness for different magnifications. Utilizing the Z4 Zoom Stereoscope on Embryo-GLO Base facilitates morphological evaluation, ultimately enhancing fertility rates in embryo transfer programs
Features:
- Inclined 45°, rotates 360°
- 10x/20 high point eyepieces with rubber eye guards
- Reticle installed for sizing embryos
- Interpupillary distance 50mm-75mm
- 0.7x to 4.5x hard-coated zoom objectives
- Standard magnification range is 7x to 45x
- Maximum magnification 135x with optional lenses
- Large dual focusing knobs with metal rack & pinion
- Metal pinion gear zoom mechanism
- Maximum height 7.5” (190.5mm) from tage to scope
- High-Intensity LED Reflector bulb
- Tilting double-sided mirror (clear and diffused)
- Light control unit with variable intensity brightness control
- Aluminum alloy construction
- Acid and reagent resistant finish
- Mirror angle adjustment knob
- Clear glass stage plate
- Plastic hand rest
Specifications:
- Weight: 19lbs
- Height: 15"
- Length: 30"
- Width: 30"
Country of Origin: United States of America
Warranty: Comes with 1 Year Manufacturer's Warranty
LW Scientific® Z4 Zoom™ Stereoscope Configurations
Part No | Description |
Z4M-TZM7-PA77 | Trinoc., 3.5x-45x w/0.5x lens, C-clamp, Flex Arm, No light |
Z4M-BZM7-PA77 | Brinoc., 3.5x-45x w/0.5x lens, C-clamp, Flex Arm, No light |

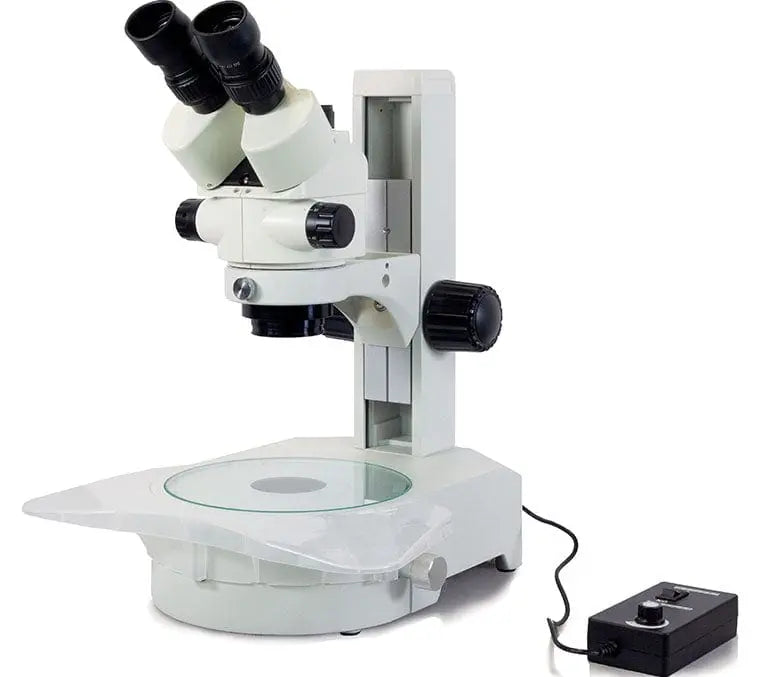

Z4M-TZM7-EML3 | Trinoc., 7x-45x on EMBRYO GLO LED Stand w/Tilt mirror reticle |
Z4M-BZM7-EML3 | Binoc., 7x-45x on EMBRYO GLO LED Stand w/Tilt mirror reticle |
Z4M-TZM7-7LL3 | Trinoc., 7x-45x on DUAL LED Light Stand |
Z4M-BZM7-7LL3 | Binoc., 7x-45x on DUAL LED Light Stand |
LW Scientific® Z4 Zoom™ Brochure, LW Scientific® Z4 Zoom™ Manual
