Description
Regardless of a simple or demanding viscosity measurement - IKA¨ ROTAVISC lo-vi HELI Complete determines the viscosity of low-viscosity liquids in all areas of application ranging from the laboratory to quality control.

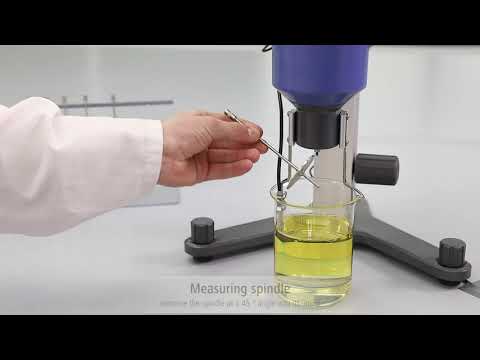

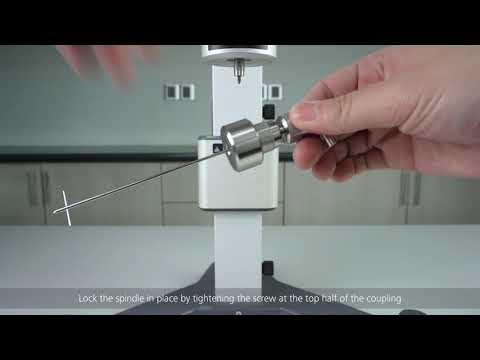

The scope of delivery includes a standard spindle set (SP 1-SP 4), a protective bracket, temperature sensor and HELISTAND stand incl. T-spindle set.
Easy to operate

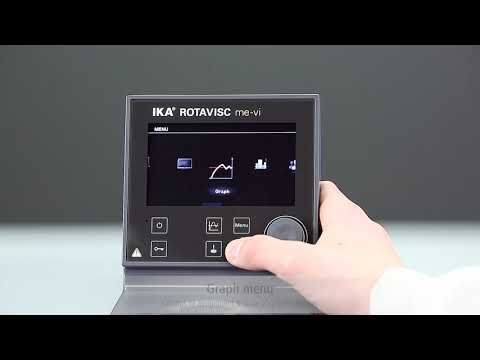

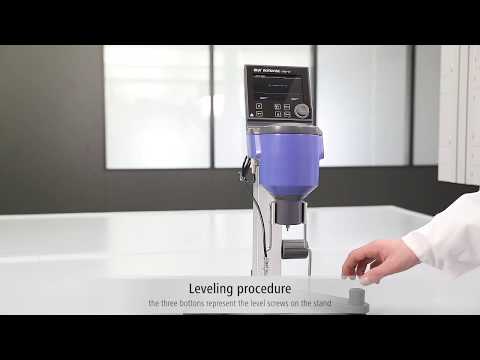

The generous 4.3_ TFT display allows for an intuitive menu guidance. A digital spirit level also supports the correct set-up of the start-up condition. The simple ramp function simplifies repetitive tasks.
Highest measurement accuracy
The level of measurement accuracy of the ROTAVISC rotational viscometer for both Newtonian and non-Newtonian fluids is +/- 1 % of the measuring range. The reproducibility is +/- 0.2 %.
Stepless speed
ROTAVISC is a viscometer, which offers stepless speed adjustment.
Viscosity measurement in motion

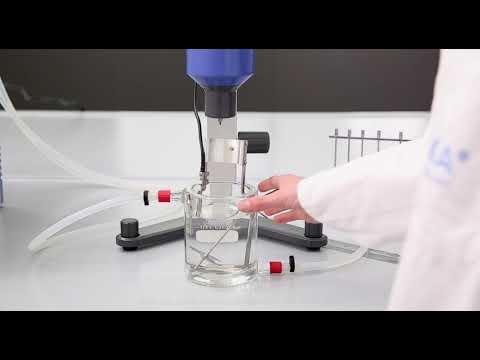

The motorized IKA¨ HELISTAND moves the mounted viscometer and its rotating body slowly and uniformly up and down in the sample
IKA¨ ROTAVISC lo-vi HELI Complete
Viscosity measuring range: 15 - 6.000.000 mPas
Package Includes:
- ROTAVISC lo-vi HELI Complete
- SP set-1
- PT 100.8
- HELISTAND
- T-SP-SET
Country of Origin: Germany
Warranty: Comes with 2+8 Year Warranty. See detailsÊhere
| Viscosity Measuring Range | 6000000 mPas |
| Viscosity Accuracy (FSR) | 1 % |
| Viscosity Repeatibility (FSR) | 0.2 % |
| Spring torque | 0.0673 mNm |
| Guard rail | lo-vi |
| Measuring spindle series | SP set-1 |
| Motor rating output | 4.8 W |
| Overload protection | yes |
| Direction of rotation | right |
| Display | TFT |
| Speed display | TFT |
| Speed range | 0.01 - 200 rpm |
| Setting accuracy speed | ±0.01 rpm |
| Speed adjustment | TFT |
| Torque display | yes |
| Torque measurement | yes |
| Timer | yes |
| Timer display | TFT |
| Time setting range | 0.017 - 6000 min |
| Temperature measurement resolution | 0.1 K |
| Working temperature display | TFT |
| Connection for ext. temperature sensor | PT 100 |
| Graph function | yes |
| Operating mode | timer and continuous operation |
| Calibration option | yes |
| Touch function | yes |
| Pemitted density | 9999 kg/dm3 |
| Working temperature | -100 - 300 ¡C |
| Fastening on stand | extension arm |
| Support rod diameter (with integrated fastening on stand) | 16 mm |
| Telescope stand stroke | 142 mm |
| Plug-in coupling (¯) | 12 mm |
| Basic container volume | 600 ml |
| Stand | HELISTAND |
| Stroke max. | 61 mm |
| Diameter | 16 mm |
| Dynamic load | 3.2 kg |
| Dimensions (W x H x D) | 351 x 629 x 372 mm |
| Weight | 7.1 kg |
| Permissible ambient temperature | 5 - 40 ¡C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 40 |
| RS 232 interface | yes |
| USB interface | yes |
| Voltage | 100 - 240 V |
| Frequency | 50/60 Hz |
| Power input | 24 W |
| Power input standby | 0.06 W |
| DC Voltage | 24 V= |
| Current consumption | 1000 mA |
