Description

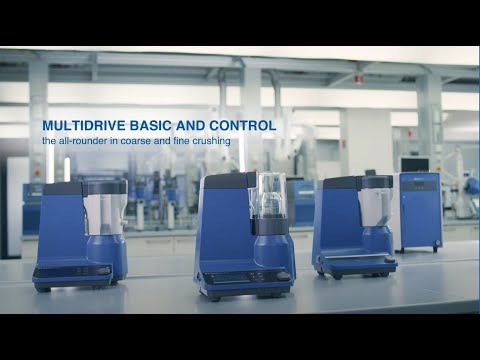

The IKA® MultiDrive control is a high-performance benchtop laboratory mill built to process hard, soft, and fibrous samples across coarse and fine grinding, mixing, and dispersing tasks. Its wide range of compatible vessels (sold separately) includes milling chambers, blending vessels, rotor-stator dispersing vessels, and autoclavable disposable tubes, making it a flexible platform for demanding sample preparation.
A 1000 W drive delivers variable speeds from 3,000 to 20,000 rpm, while a clear TFT display and intuitive workflow simplify operation. An integrated weighing function lets you weigh directly in the mixing cup before crushing, eliminating sample transfer. One-touch interval operation, RFID vessel detection, an integrated temperature control system, and a USB interface round out a fully featured digital mill.
Key features:
- Powerful 1000 W motor with variable speed from 3,000 to 20,000 rpm
- Clear TFT display with user-friendly, programmable workflow and ramp programming
- Integrated weighing function (5 - 4000 g) directly in the mixing cup
- RFID vessel detection plus temperature measurement and limit setting (-50 to 120 °C)
- One-touch interval operation for coarse crushing and thorough blending
- Micro-USB and WPAN interfaces for easy actuation and documentation
Package Includes:
- IKA® MultiDrive control drive unit
- Socket wrench
- Disassembly tool 1
- Disassembly tool 2
- Cleaning brush
- USB cable (USB A to Micro-B, 2 m)
Country of Origin: Germany
Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here
Specifications:
| Process type | Batch |
| Operating principle | Cutting / impact / blending / dispersing |
| Motor rating input | 1000 W |
| Motor rating output | 800 W |
| Speed range | 3000 - 20000 rpm |
| Speed deviation | ±5 % |
| Power-ON time | 5 min |
| Power-OFF time | 10 min |
| Motor principle | Brushless DC |
| Display | TFT |
| RFID reader/writer unit | Yes |
| Temperature display | Yes |
| Temperature measurement resolution | 0.1 K |
| Accuracy of temperature measurement | ±1 K |
| Temperature limit min. | -50 °C |
| Temperature limit max. | 120 °C |
| Weighing function | Yes |
| Weighing range | 5 - 4000 g |
| Weighing resolution | 1 g |
| Weighing accuracy | ±(0.3%+2) g |
| Vessel detection | Yes |
| Ramp programming | Yes |
| Dimensions (W x H x D) | 300 x 350 x 250 mm |
| Weight | 8.5 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class (DIN EN 60529) | IP 31 |
| USB interface | Micro-USB |
| WPAN interface | Yes |
| Voltage | 100 - 120 V |
| Frequency | 50/60 Hz |
| Power input | 1000 W |
