Description

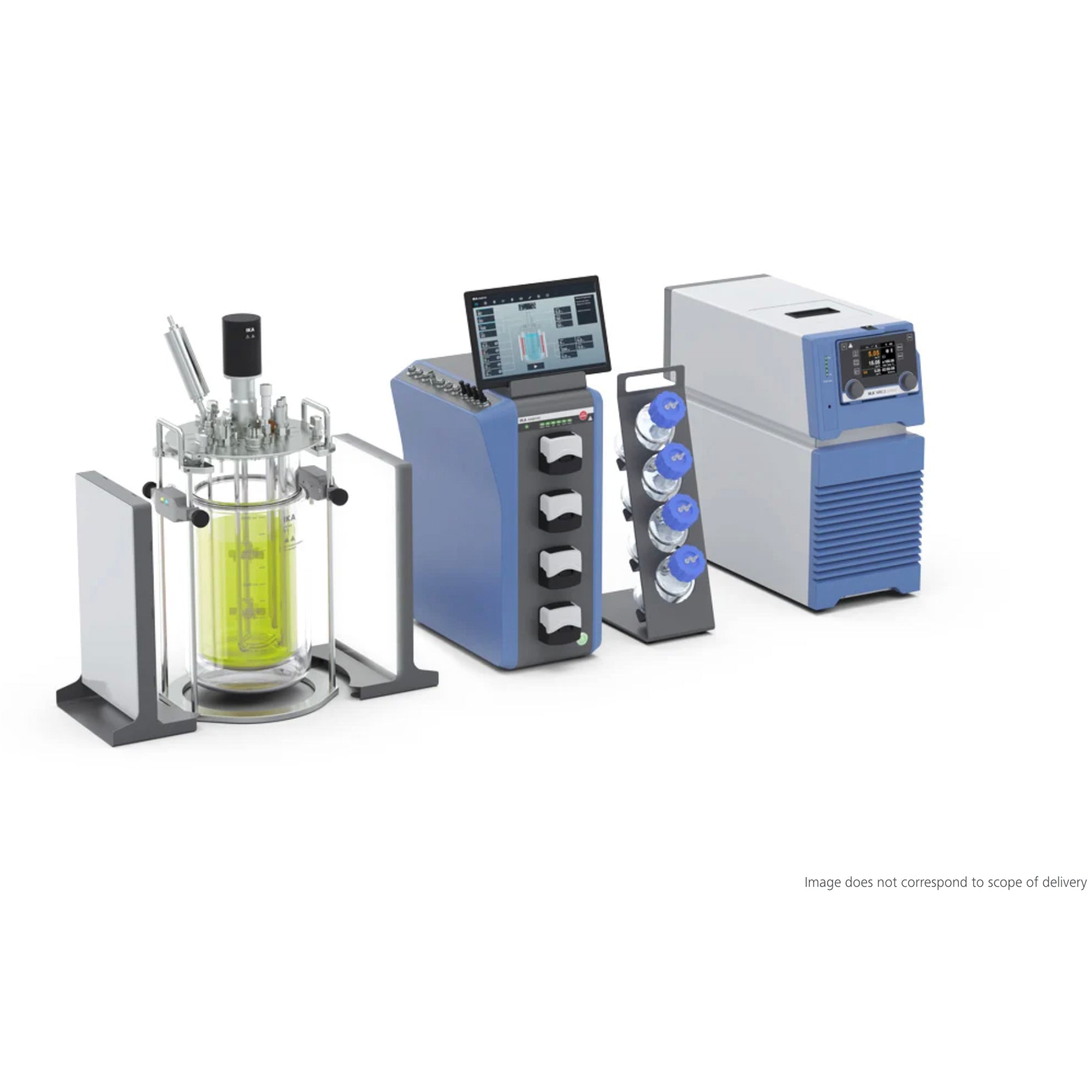

The IKA® HABITAT photo ferment is the photobioreactor control tower for the IKA HABITAT research benchtop bioreactor. Fitted with two LED light panels, it converts a HABITAT system into a photo-fermenter for light-driven bioprocesses — cultivating photosynthetic organisms and running fermentations that depend on controlled illumination. The tower houses the control unit, four built-in mass flow controllers (N2, O2, air, CO2), four integrated Watson-Marlow peristaltic pumps for acid, base, anti-foam and nutrient dosing, and a 10.4-inch tablet running IKA's bioprocess software with batch, fed-batch and perfusion/continuous modes, calibration management, real-time data, and optional FDA 21 CFR Part 11 documentation. PID temperature control works with single-wall vessels (heating blanket) or double-wall vessels (with an IKA thermostat, 5–80 °C). Note: the control tower requires a separately available HABITAT vessel package to form a complete, functional bioreactor.
Key features:
- Two LED light panels to convert HABITAT research into a photobioreactor
- Four built-in mass flow controllers (N2, O2, air, CO2)
- Four integrated Watson-Marlow peristaltic pumps (acid, base, anti-foam, level)
- 10.4" tablet with intuitive bioprocess software; batch, fed-batch and perfusion/continuous modes; Chaotic Mixing function
- PID temperature control, 5–80 °C with thermostat (double-wall) or heating blanket (single-wall)
- Cross-platform connectivity: USB, RS232, ethernet, OPC-UA, WiFi
Package Includes:

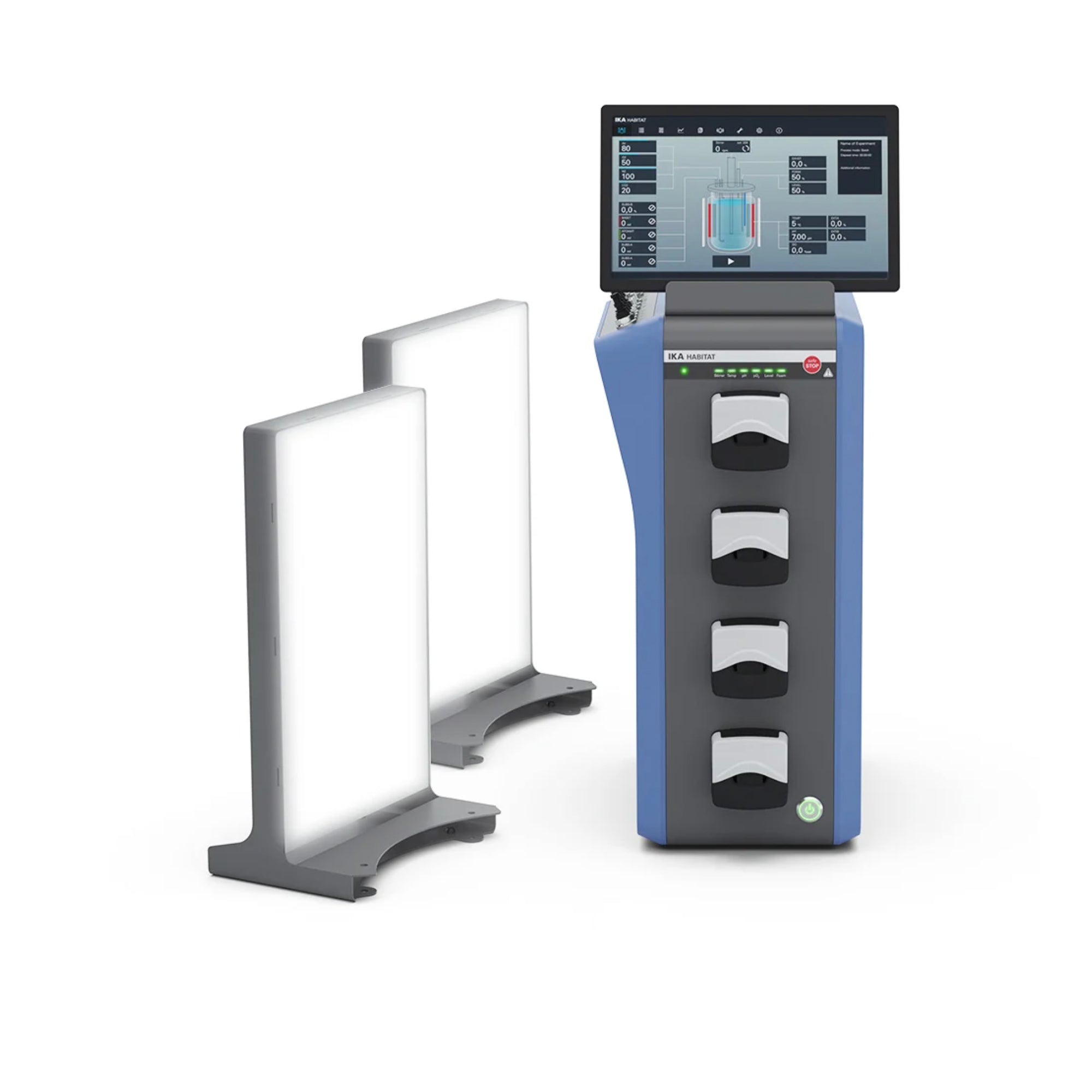

- HABITAT photo ferment S099 control unit
- Tablet with software for bioreactor
- LED panel (2 pcs.)
Country of Origin: Germany
Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here
Specifications:
| Controller | fermenter (photo) |
| Display / operation | 10.4" tablet PC, touch screen |
| Operating modes | batch, fed-batch, perfusion/continuous |
| LED light panels | yes (2 pcs.) |
| Stirrer speed range | 1 - 2200 rpm |
| Temperature control | PID, 5 - 80 °C, accuracy ±0.2 °C |
| Heating blanket | yes, 250 W |
| pH measurement | 0 - 14 pH, ±0.02 pH |
| pO2 measurement | 0 - 200 %sat, ±0.3 %sat |
| Mass flow controllers | 4 (N2, O2, air, CO2) |
| Gas flow rate (per line) | 100 - 20000 cc/min |
| Peristaltic pumps | 4 × Watson-Marlow 114DV (acid, base, anti-foam, level), 0.3 - 270 ml/min |
| Interfaces | USB, RS232, ethernet, OPC-UA, WiFi |
| Data memory | 32 GB |
| Voltage / frequency | 100 - 240 V, 50/60 Hz |
| Power input | 300 W (max. 1100 W) |
| Protection class | IP 20 |
| Dimensions (W x H x D) | 224 x 624 x 405 mm |
| Weight | 14 kg |
