Description

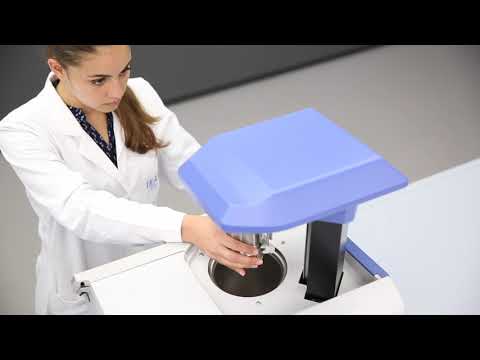

The IKA C 6000 isoperibol Package 1/12 is an oxygen bomb calorimeter that combines advanced technology, flexible operation, and extensive automation in one instrument. It conforms to the major bomb calorimeter standards — DIN, ISO, ASTM, GOST, and GB — making it dependable for laboratories with international testing obligations.
The isoperibol platform provides two measuring modes, isoperibol and dynamic, each selectable at 22 °C, 25 °C, or 30 °C starting temperatures. This 1/12 package ships complete with an RC 2 GREEN basic recirculating chiller, removing the need for an external cooling-water supply, together with the halogen-resistant C 6012 decomposition vessel, whose catalytically active surface improves recovery rates for halogens and sulfur. A broad range of PC, printer, balance, and USB interfaces adapts the unit to specific workflows, with optional C 6040 CalWin software for data management and LIMS integration.
Key features:
- Automatic ignition with ignition energy determination
- Automatic water filling and draining, plus automatic oxygen filling, venting, and flushing
- RFID-based automatic identification of the decomposition vessel
- Supplied with RC 2 GREEN basic recirculating chiller for self-contained cooling
- Halogen-resistant C 6012 vessel with catalytic surface for improved halogen and sulfur recovery
- Ethernet interface for network printing and USB interface for data management and software updates
Package Includes:
- C 6000 isoperibol calorimeter
- C 6012 decomposition vessel, halogen resistant
- RC 2 GREEN basic recirculating chiller
Country of Origin: Germany
Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here
Specifications:
| Measuring range max. | 40000 J |
| Measuring mode dynamic 22°C | yes |
| Measuring mode isoperibol 22°C | yes |
| Measuring mode dynamic 25°C | yes |
| Measuring mode isoperibol 25°C | yes |
| Measuring mode dynamic 30°C | yes |
| Measuring mode isoperibol 30°C | yes |
| Measurements/h dynamic | 6 |
| Measurements/h isoperibol | 4 |
| Reproducibility dynamic (1g benzoic acid NBS39i) | 0.15 %RSD |
| Reproducibility isoperibol (1g benzoic acid NBS39i) | 0.05 %RSD |
| Touchscreen | yes |
| Working temperature | 22 - 30 °C |
| Temperature measurement resolution | 0.0001 K |
| Cooling medium temperature | 12 - 27 °C |
| Cooling medium permissible operating pressure | 1.5 bar |
| Cooling medium | tap water |
| Type of cooling | flow |
| Chiller | RC 2 basic |
| Flow rate | 60 - 70 l/h |
| Rec. flow rate at 18°C | 60 l/h |
| Oxygen operating pressure max. | 40 bar |
| Interface scale | RS232 |
| Interface printer | USB |
| Interface PC | RS232 |
| Interface test rack | yes |
| Interface ext. keyboard | yes |
| Oxygen filling | yes |
| Degasification | yes |
| Decomposition detection | yes |
| Decomposition vessel C 6010 | yes |
| Decomposition vessel C 6012 | yes |
| Analysis according to DIN 51900 | yes |
| Analysis according to ASTM D240 | yes |
| Analysis according to ASTM D4809 | yes |
| Analysis according to ASTM D5865 | yes |
| Analysis according to ISO 1928 | yes |
| Analysis according to GB T213 | yes |
| Works according to DIN 51900 | yes |
| Works according to DIN EN ISO 1716 | yes |
| Works according to DIN EN ISO 9831 | yes |
| Works according to DIN EN ISO 18125 | yes |
| Works according to DIN EN 15170 | yes |
| Works according to DIN EN 15400 | yes |
| Works according to DIN CEN TS 14918 | yes |
| Works according to DIN CEN/TS 16023 | yes |
| Works according to DIN SPEC 19524 | yes |
| Works according to ASTM D240 | yes |
| Works according to ASTM D4809 | yes |
| Works according to ASTM D5468 | yes |
| Works according to ASTM D5865 | yes |
| Works according to ISO 1928 | yes |
| Works according to GB T213 | yes |
| Works according to GOST Certified | yes |
| Dimensions (W x H x D) | 500 x 425 x 450 mm |
| Weight | 29 kg |
| Permissible ambient temperature | 20 - 30 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 20 |
| RS 232 interface | yes |
| USB interface | USB-B |
| Voltage | 115 V |
| Frequency | 50/60 Hz |
| Power input | 1700 W |
