Description

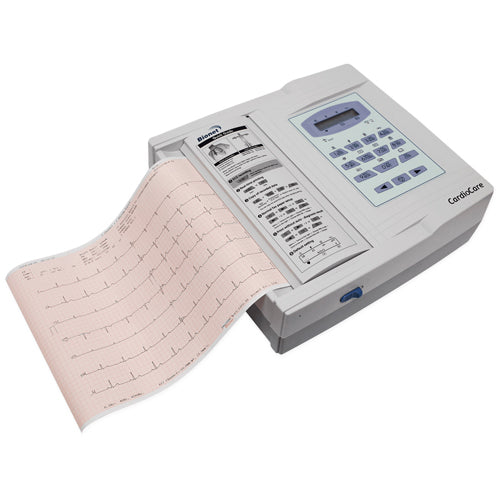

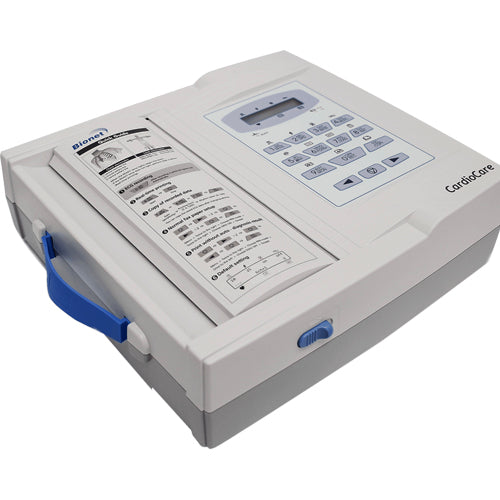

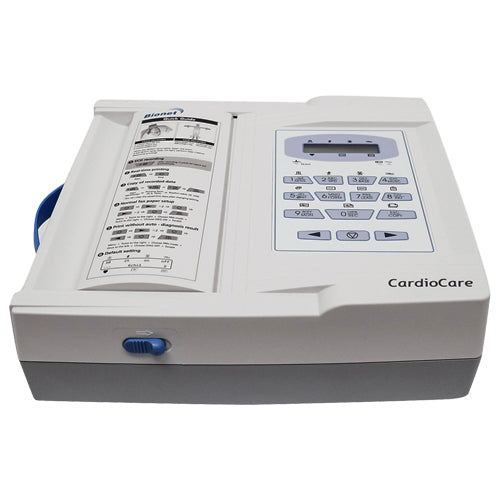

The CardioCare 2000 is an economically priced interpretive 12 channel electrocardiogram (ECG/EKG) machine that does not compromise on performance. Suitable for use in private practice, the ER, or hospitals. The CardioCare 2000 is designed for maximum ease of use and convenience.
Features:
- Simultaneous 12 channel resting ECG
- ECG interpretation program
- One-touch operation (monitoring, recording mode)
- A4 full-size paper, multiple printing formats, easy chart filing
- Varied printouts from single patient sample
- BMS Plus software. Transfer of digital ECG to Windows based PC
Package Includes:
- CardioCare 2000 Main Unit,
- 10 Lead ECG Patient Cable,
- Alligator Clips,
- Electrodes,
- Medi-Graph Paper,
- Hospital Grade Power Cord,
- Operation Manual,
- Diagnostics Guide Book,
- Quick Reference Guide
- 3-Year Warranty Card.
Country of Manufacture: South Korea
Warranty: Comes with 3 Years Manufacturer's Warranty
Specifications:
| ECG Leads | 10 lead 12 channel simulataneous 10-second resting ECG |
| Dimension | 296 (w) x 305.5 (h) x 92.5 (d) mm |
| Approximately 2.98 kg | |
| Recording Channel | 3, 6, 12 channel and 1 channel (60 sec) |
| Sensitivity | 5, 10, 20 auto (I~aVF: 10, V1~V6:5) mm/mV |
| Printing Speed | 12.5, 25, 50 mm/s |
| Filters | AC (50/60 Hz, -20dB or better) |
| Muscle (25~35Hz, -3dB or better) | |
| Base Line Drift (0.1Hz, -3dB or better) | |
| Low pass filter (off, 40Hz, 100Hz, 150Hz) | |
| Display | 2 x 16 character LCD display |
| LCD Display | Sensitivity, speed, filter status, HR, printing form, rhythm lead |
| LED Indicator | Signal quality, power source, battery |
| Keyboard | Membrane keyboard |
| Alphanumeric and symbol available | |
| Patient Data | ID, name, age, sex, height, weight |
| Basic Measurement | Heart rate, PR, QRS, QT/QTc, P-R-T axis |
| Recorder | Thermal print head, thermal roll paper |
| Report papers: | |
| -Width: A4: 210mm or 8.5" | |
| -Length: A4: 300mm or 11" | |
| Effective writing width: 204mm | |
| Resolution: | |
| - Vertical: 8 dots/mm | |
| - Horizontal: 16 dots/mm | |
| Electrical | Internal noise: 20uV(p-p) max |
| Input circuit: Floating input | |
| Isolated and defibrillation protected | |
| Input impedance: >10MQ | |
| Input range: > +/- 5mV | |
| Common Mode Rejection: > +100dB | |
| DC offset voltage: > +/- 300mV | |
| Time constant: 3.2 sec | |
| Patient leakage current: | |
| Frequency response: 0.05~150Hz | |
| Signal Quality Control | Disconnected lead detection |
| Power | Power Supply: AC or built-in Battery (option) |
| Power requirement: 100 - 240 Vac, 50/60Hz, 1.0 - 0.5A | |
| Power consumption: 60w max | |
| Battery Capacity | 1 hour of normal use (approximately 100 automatic ECG printouts) |
| Communication | PC connection with RS-232 interface and LAN |
| Safety | Class 1, Type BF |
| Conformity | CE, CSA |
| Environment | Operating humidity: 30~85% |
| Operating temperature: 10° ~40° C | |
| Atmospheric pressure: 70 ~ 106 KPa | |
| Standard Accessories | Power Cable - 1 ea Patient Cable - 1 ea Electrode - 10 ea Chart Paper - 1 ea Operation Manual - 1 ea |
| Options | Rechargeable Battery (ni-mh), Cart, Hanger, Bag, PC s/w, Limb electrode, Chest electrode, RS-232C null cagle, LAN cable (Ethernet-RJ-45) |
Bionet CardioCare® ECG Product Brochure, Bionet CardioCare® ECG Manual
