Description

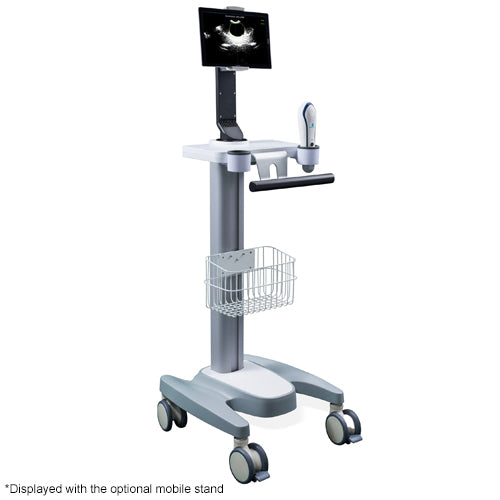

The MDPro The M4 is a handheld portable bladder scanner, which can connect to phones and tablets which can be applied in the department of surgery, emergency, ICU, obstetric, gynecology, radiotherapy, home health and nursing home.
The M4 provides the basis for clinical catheterization, evaluates the post-void residual after patient urination, and helps to make auxiliary diagnosis on the bladder and kidney diseases. It is also suitable for patients of lower body disability or loss of auto-urination function, to confirm the proper timing of urination.
Features:
- Non-invasive urinary bladder volume measurement
- Volume measurement accuracy: ±7%
- Reduce unnecessary catheterization
- Rapid scanning, measurement result within seconds
- No annual calibration needed
- Modes selection: Easy, Expert Mode, Intelligence Mode
- Easy-to-learn and use
- Perform 3D imaging of bladder volume
- 2 orthorhombic images
- Printable patient info/bladder volume
- Internal storage on tablet, PC, or mobile phone
- Large data storage space: 10,000+ cases
- Patient history information review
- WiFi connection to tablet, PC, or mobile phone
- User-friendly capacitive touch screen
- Multiple language options
- Lightweight, Rechargeable battery
Working Modes:
Modes selection: Easy, Expert and Intelligence. Expert mode is the default.
When performing a pre-scan, the operator will observe the following exam results:
- Move the probe till the center of the bladder image reaches the green line
- Press scan button once the biggest bladder section is detected
- Twelve real time bladder ultrasonic images will be displayed during scanning
Package Includes:
- Peaksonic® M4 3D Scanner
- Samsung Android® tablet
- 2.5Mhz Probe
- Docking station
- M4 Charger
- PC Software
- User Manual
Country of Manufacture: China
Warranty: Comes with 1 Year Manufacturer's Warranty
Specifications:
| Modes of Scan | 3D Scan |
| Probe Frequency | 2.5Mhz |
| Volume Measurement Accuracy | ±7%％, ±7ml |
| Scanning Time | < 5 Seconds |
| Measure Volume | 0ml-999ml |
| Operation Mode | Easy, Expert, Intelligence Mode |
| Language Selection |
English, Spanish, Swedish, Portuguese, Finnish, Chinese, French, Danish, Dutch, Norsk, German, Italian |
| Battery Capacity | 2600 mAh |
| Print Mode | Wireless Bluetooth Printer (Optional) |
| Data Transmission | USB |
| Data Storage | Built-in TF card |
| Continuous Usage | 2 hrs 30 min |
| Stand by | ≥ 5 hours |
