IKA® Cell DW 1 Vessel for HABITAT Bioreactor System, 1.0lt, 10007647

IKA WorksSKU: 0010007647

WORLDWIDE SHIPPING AVAILABLE.
PLEASE
CONTACT US

Price:
Sale price$14,727.00 USD

Shipping calculated at checkout

Condition: Brand new with manufacturer's warranty

Availability: Drop ships from manufacturer. Subject to stock availability.

Estimate shipping

Description

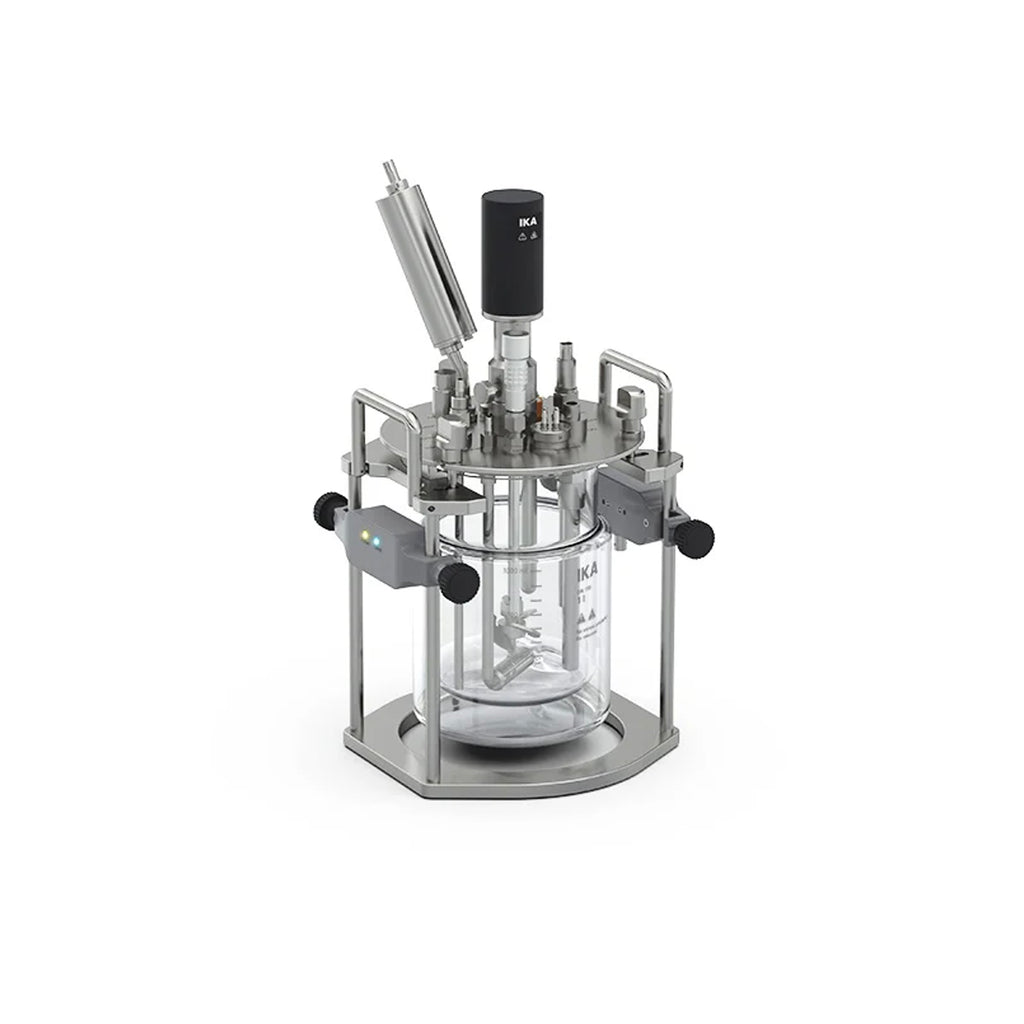

The IKA® HABITAT cell dw 1 is the 1-liter, double-walled glass vessel package for the IKA HABITAT research bioreactor, configured for cell-culture applications. It pairs the jacketed vessel with the matching stirring drive and a full sensor set — temperature, pH, dissolved oxygen (DO), level, and foam — along with the connection accessories needed to run it. The double jacket allows temperature control through an external circulator (such as the IKA HRC 2 basic or control, available separately). Combined with a separately available HABITAT control tower package (for example HABITAT cell), it provides the components for a complete cultivation workflow.

Package Includes:

  • Stand 1
  • HA.gv.dw.1 glass vessel, double-wall, for 1 l
  • HA.mt.s.2 motor, small, for 0.5, 1 and 2 l
  • HA.hp.s.1 harvest pipe, straight, for 1 l
  • HA.ino port for inoculation
  • HA.sp.m.1 micro sparger, for 1 l
  • HA.cn condenser
  • HA.ip.pi.1 3-pitched-blade impeller, for 1 l
  • HA.s.tm.1 temperature sensor, for 1 l
  • HA.s.ph.1 Hamilton pH sensor, for 1 l
  • HA.s.do.1 Hamilton DO analogue sensor, for 1 l
  • HA.s.fo foam sensor
  • HA.s.lv.1 fill level sensor, for 0.5 to 1 l
  • HA.cab.dw cable & tube set, for double-wall vessels
  • HA.sf.250 sample flask, 250 ml (4 pcs.)

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Reactor cell growth
Volume 1 l
Type double wall (jacketed)
Autoclavable yes
Inner diameter 110 mm
Ratio = height / inner diameter 1.73
Useable volume min. / max. 0.3 l / 1.6 l
Reactor vessel material borosilicate glass 3.3
Reactor lid material stainless steel 1.4404
Net weight (vessel / assembled) 1.14 kg / 8.09 kg
Number of lid ports 12
Material in contact with medium AISI 316L, borosilicate glass 3.3, silicone USP class VI
Sparger micro sparger, pore size 5 μm
Stirrer design 3-pitched-blade impeller (Ø 41 mm)
Condenser vertical condenser, min. 5 °C (15 °C with Peltier)
Sterile filter PTFE reinforced with PP, 0.22 μm, with heater
Working temperature sensor PT1000
pH / pO2 sensors yes (PG 13.5)
Level / foam sensors IKA HA.s.lv / HA.s.fo
Speed range 1 - 2000 rpm
Gas flow rate (Air / O2 / N2 / CO2) 10 - 2000 cc/min each
Dimensions (W x H x D) 210 x 414 x 210 mm

PDFProduct Data Sheet
