IKA® LR 2000.4 Reactor Vessel for LR Series Reactors, (2,000ml), 3064900

Save $34.09
IKA WorksSKU: 0003064900

WORLDWIDE SHIPPING AVAILABLE.
PLEASE
CONTACT US

Price:
Sale price$13,602.91 USD Regular price$13,637.00 USD

Shipping calculated at checkout

Condition: Brand new with manufacturer's warranty

Availability: Drop ships from manufacturer. Subject to stock availability.

Estimate shipping

Description

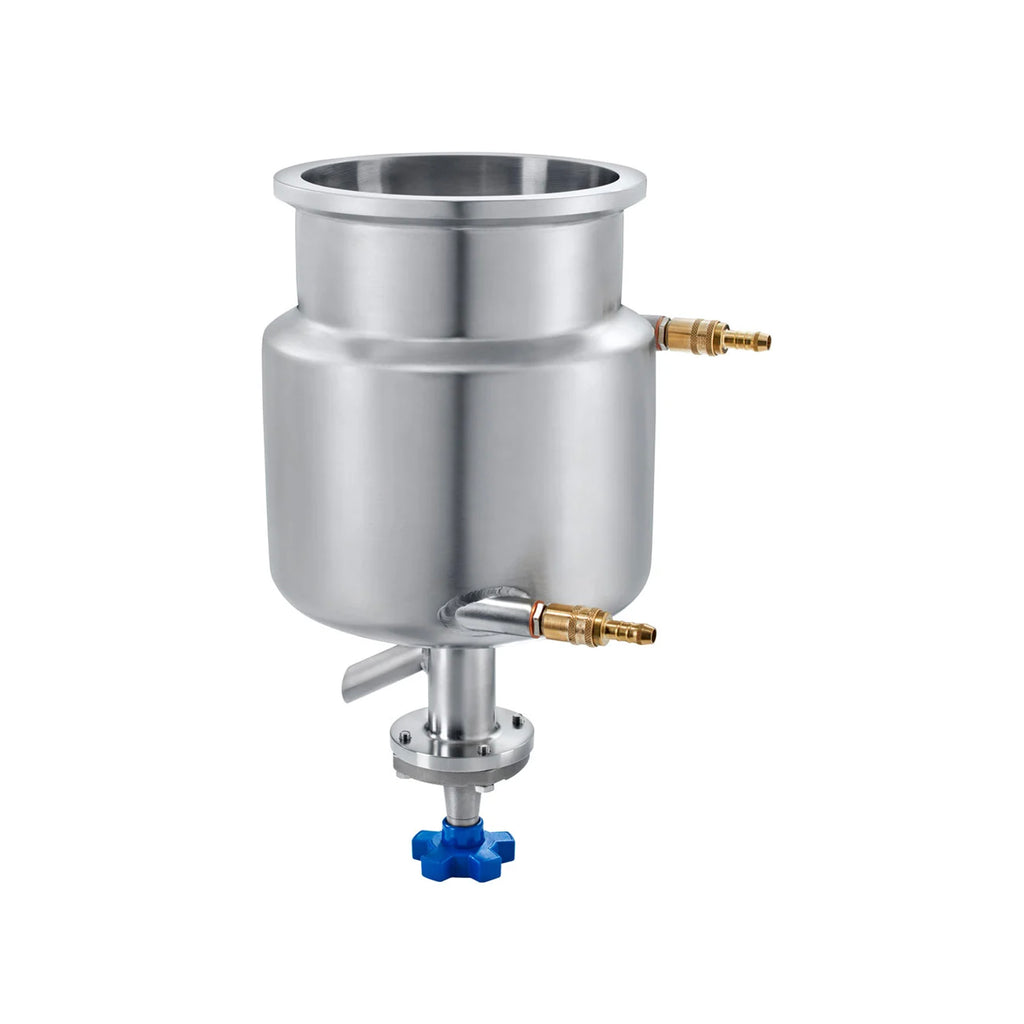

The IKA® LR 2000.4 is a 2-liter, double-walled stainless steel reactor vessel with a bottom-discharge valve, designed for the IKA LR-2.ST laboratory reactor system. The jacketed (tempering) design supports precise temperature control, and an integrated heating blanket together with vacuum capability suits a wide range of synthesis, mixing and process-development tasks. The vessel ships with quick-connection adapters (DN 8 olive) for attaching temperature-control hoses. All wetted parts are stainless steel (AISI 316L / 316Ti) and PTFE.

Package Includes:

  • Stainless steel double-wall reactor vessel (2 l, bottom discharge)
  • Quick-connection adapters with DN 8 olive (for temperature hoses)

Country of Origin: Germany

Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here

Specifications:

Volume 2 l
Type double wall (jacketed), bottom discharge
Material in contact with medium AISI 316L, AISI 316Ti, PTFE
Vessel inner / outer diameter 153 mm / 194 mm
Flange dimension DN150
Bottom shape torispherical head
Bottom valve standard valve
Bottom drain outlet (ID / OD / length) 12 mm / 18 mm / 73 mm
Heating blanket yes
Vacuum application yes
Dimensions (W x H x D) 180 x 362 x 230 mm
Weight 4.955 kg

PDFProduct Data Sheet
