EDAN U60 Digital Ultrasound Imaging System w/Choice of Transducer, 15.1" LCD Color Screen

Save 33%
Edan USASKU: U60

Transducer Options: Without Transducer
Sale price$5,500.00 USD Regular price$8,250.00 USD

Condition: Brand new with manufacturer's warranty

Availability: Drop ships from manufacturer. Subject to stock availability.

Estimate shipping

Payment & Security

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.


EDAN U60 Ultrasound Machine w/Choice of Transducer, 15.1" LCD Color Screen. A superior general imaging desktop system. Edan’s design philosophy with the U60 focused on providing clear imaging for confident diagnosis and  procedure guidance, a compact, user centered design, and a comprehensive set of applications.

With its compact design, user-friendly operation and advanced imaging technologies, the U60 ultrasound system offers a broad range of clinical applications to address all of your imaging needs.


  • Compact, lightweight design facilitates mobility
  • Integrated battery enables operation anywhere
  • Large 15” monitor for easy viewing
  • Full set of transducers to support all applications
  • Tissue Harmonic Imaging
  • Spatial Compounding Imaging
  • Speckle Reduction Imaging
  • Backlit, easy-to-use control panel
  • Customizable user defined controls
  • Large capacity data storage


  • 15 inch LCD monitor
  • Two standard transducer connectors
  • Color Doppler Imaging
  • Pulsed Wave Doppler
  • Continuous Wave Doppler(CW)
  • Spectral Doppler high-PRF(HPRF)
  • Directional Power Doppler Imaging
  • Phased Inversion Harmonic Imaging
  • Spatial Compounding Imaging
  • Speckle Reduction Imaging
  • Measurement and calculation software packages
  • Luxury carrying bag
  • Multi-Pseudo color
  • DICOM enabled

Package Includes:

  • 1 x Choice of Transducer (Based on the option selected)
  • 2 x Fuse, P/N 21.21.064172
  • 1 x Potential Equalization Conductor, P/N 01.13.114214
  • 1 x Power Cord (USA Standard), P/N 01.13.037122
  • 2 x Flash Disk (Netac,4G, USB2.0 Protocol), P/N 01.18.052245
  • 1 x Ultrasound Gel(CE, 250g)
  • 1 x Quick Manual for U60 (English)
  • 1 x User Manual for U60 (English)

        Country of Manufacture: China

        Warranty: Comes with 2 Years Manufacturer's Warranty

        EDAN U60 Brochure, EDAN U60 Spec. Sheet

        EDAN U60 Ultrasound Transducer Options:

        Part No Description Applications
        L742UB Linear array transducer: L742UB(6.5/7.5/8.5/H9.0/H 9.4MHz, 128 elements) Small Parts, Vascular, Musculoskeletal, Superficial
        L1042UB Linear array transducer: L1042UB(8/9.5/11/H13.0/ H 13.4MHz, 128 elements) Small Parts, Vascular, Musculoskeletal, Superficial
        E612UB Transvaginal array transducer: E612UB(5.5/6.5/7.5/H9.0 / H9.4MHz, 128 elements) Obstetrics, Gynecology
        L15-7b Linear array transducer: L15-7b(10.0/12.0/14.0/H14.4/H14.8MHz, 128 elements) Thyroid, Breast, SMP, MSK

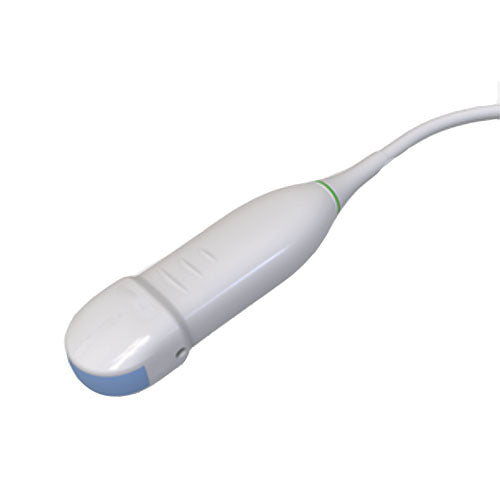

        C6152UB Micro-convex array transducer  C6152UB(5.5/6.5/7.5/H9.0/H9.4MHz,128 elements) Thyroid, Breast, SMP, MSK

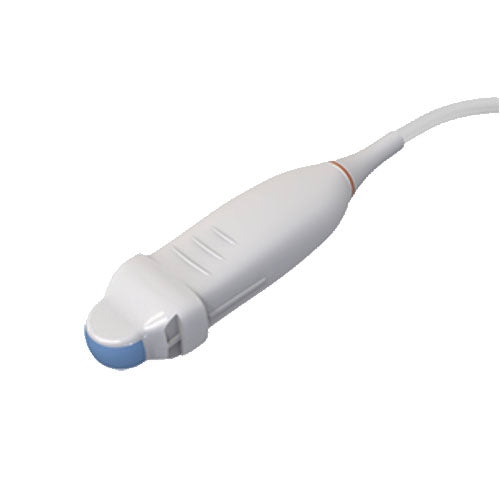

        C612UB Micro-convex array transducer : C612UB (5.5/6.5/7.5/H9.0/ H9.4MHz,128 elements) Obstetrics, Gynecology

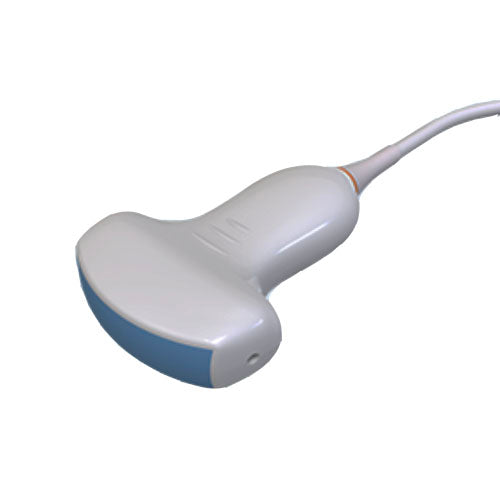

        C5-2b Convex array transducer: C5-2b(2.5/3.5/4.0/H5.0/H6.0MHz, 128 elements) OB/GYN, Abdomen

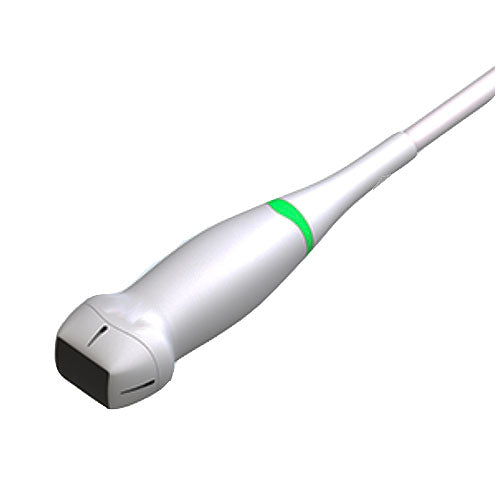

        P5-1b Phase array transducer: P5-1b(2.0/2.5/3.0/H4.0/H5.0MHz, 64 elements) Cardiac Screening
