Description

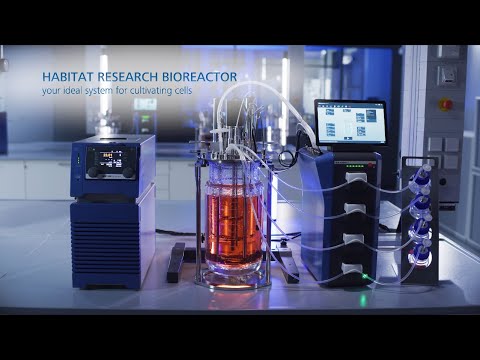

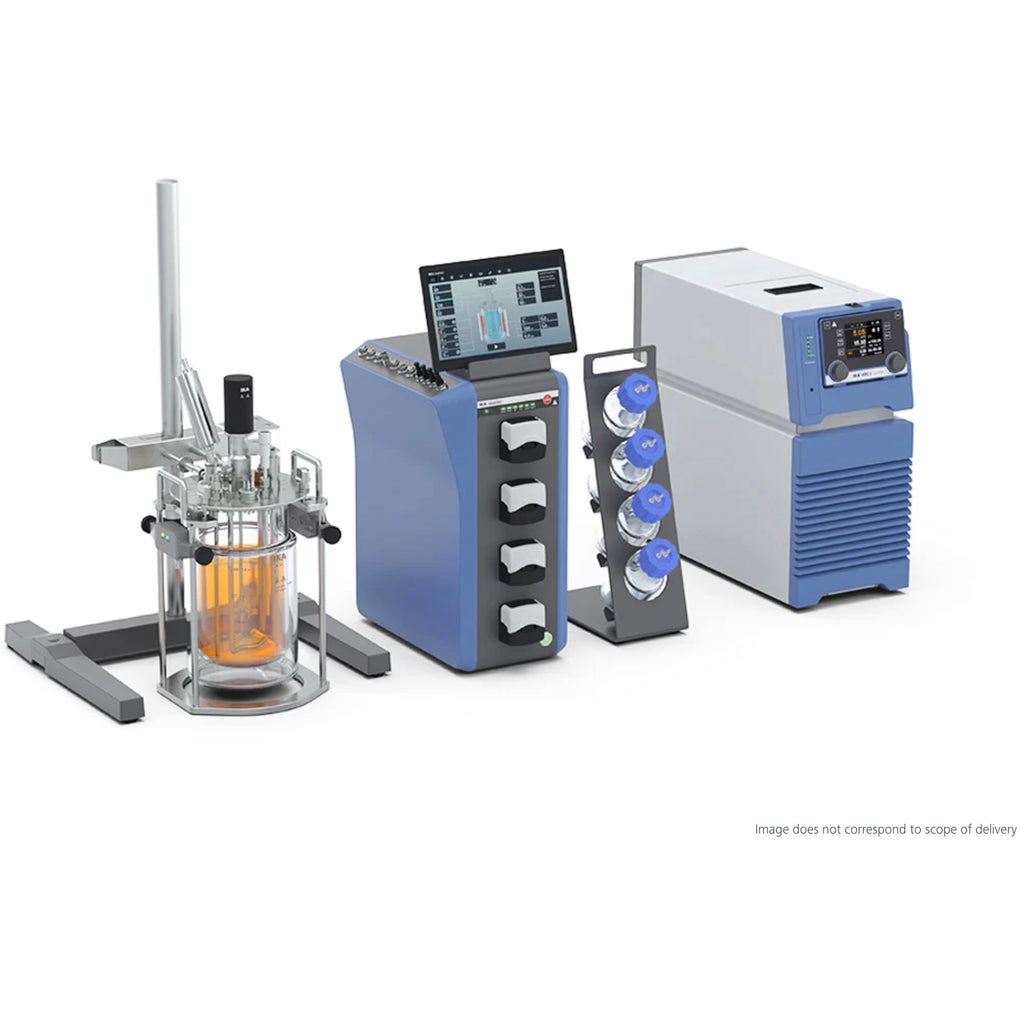

The IKA® HABITAT ferment cct is the fermentation control tower for the IKA HABITAT research benchtop bioreactor. It houses the control unit with full connectivity for gas supply, liquid addition, multi-parameter sensors and temperature control, plus a 10.4-inch tablet for operating the bioreactor. The "cct" configuration adds connection options for three further sensors — CO2, conductivity, and turbidity — on top of the standard pH, DO, temperature, level and foam monitoring. Four built-in mass flow controllers (N2, O2, air, CO2) deliver fermentation-range 100–20000 cc/min gassing, and four integrated Watson-Marlow peristaltic pumps handle acid, base, anti-foam and nutrient dosing. The bioprocess software supports batch, fed-batch and perfusion/continuous modes with calibration management, real-time data, and optional FDA 21 CFR Part 11 documentation. PID temperature control works with single-wall vessels (heating blanket) or double-wall vessels (with an IKA thermostat, 5–80 °C). An LED light panel is available separately to upgrade the system to a photobioreactor. Note: the control tower requires a separately available HABITAT vessel package to form a complete, functional bioreactor.
Key features:
- "cct" connections for CO2, conductivity and turbidity sensors
- Four built-in mass flow controllers (N2, O2, air, CO2); fermentation-range 100–20000 cc/min
- Four integrated Watson-Marlow peristaltic pumps (acid, base, anti-foam, level)
- 10.4" tablet with intuitive bioprocess software; batch, fed-batch and perfusion/continuous modes; Chaotic Mixing function
- PID temperature control, 5–80 °C; heating blanket included
- Connectivity via USB, RS232, ethernet, OPC-UA, WiFi; optional LED panel for photobioreactor upgrade
Package Includes:
- HABITAT ferment cct S099 control unit
- Tablet with software for bioreactor
Country of Origin: Germany
Warranty: Comes with 2+1 Year Manufacturer's Warranty. See details here
Specifications:
| Controller | fermenter (cct) |
| Display / operation | 10.4" tablet PC, touch screen |
| Operating modes | batch, fed-batch, perfusion/continuous |
| LED light panels | optional (accessory) |
| Additional sensor connections | CO2, conductivity, turbidity (monitoring) |
| Stirrer speed range | 1 - 2200 rpm |
| Temperature control | PID, 5 - 80 °C, accuracy ±0.2 °C |
| Heating blanket | yes, 250 W |
| pH measurement | 0 - 14 pH, ±0.02 pH |
| pO2 measurement | 0 - 200 %sat, ±0.3 %sat |
| Mass flow controllers | 4 (N2, O2, air, CO2) |
| Gas flow rate (per line) | 100 - 20000 cc/min |
| Peristaltic pumps | 4 × Watson-Marlow 114DV (acid, base, anti-foam, level), 0.3 - 270 ml/min |
| Interfaces | USB, RS232, ethernet, OPC-UA, WiFi |
| Data memory | 32 GB |
| Voltage / frequency | 100 - 240 V, 50/60 Hz |
| Power input | 300 W (max. 1100 W) |
| Protection class | IP 20 |
| Dimensions (W x H x D) | 224 x 624 x 405 mm |
| Weight | 14 kg |
